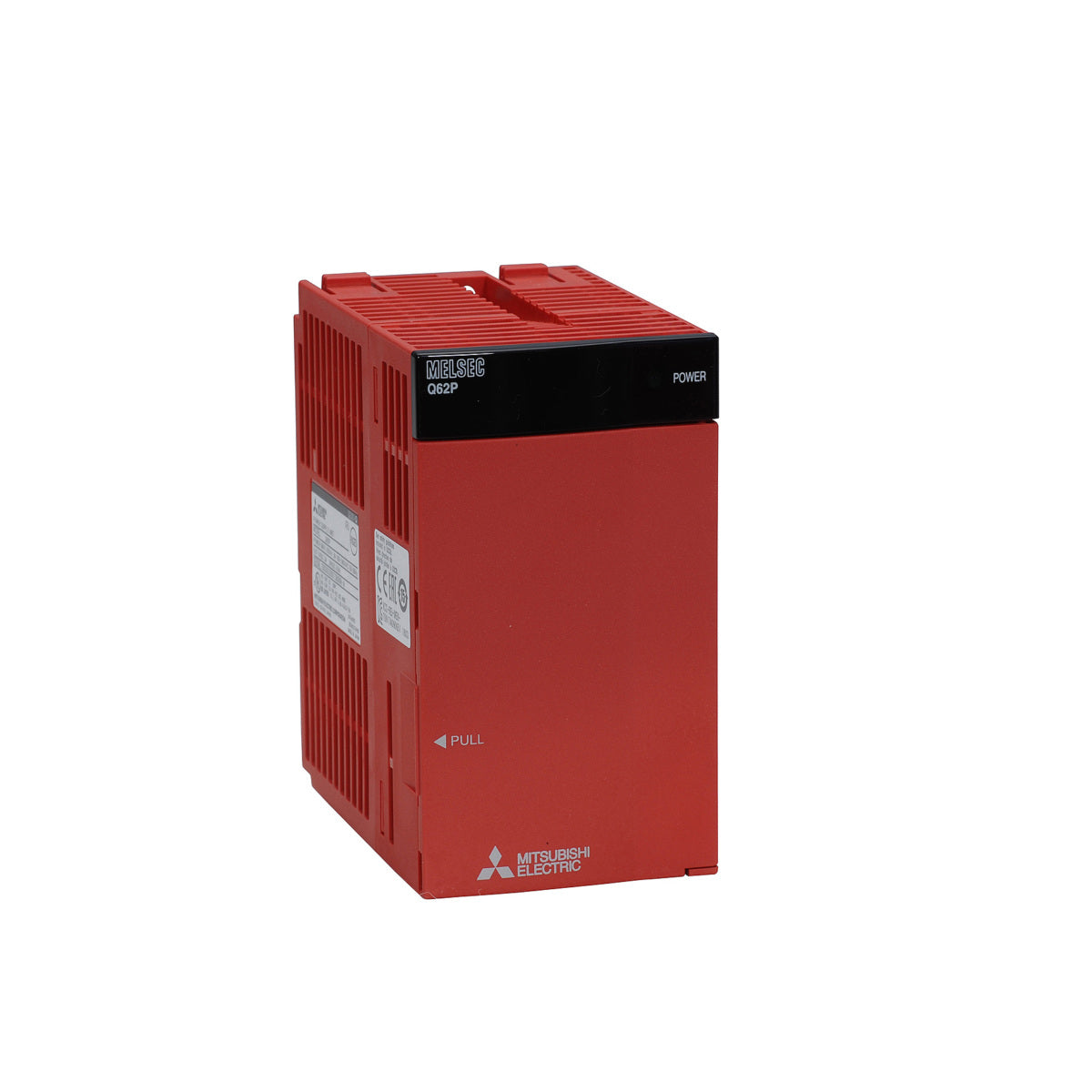

MELSEC-Q Series Q62P
| Installation position | Power supply module installation slot |
| Applicable base unit | Q3□B, Q3□DB, Q6□B |
| Input power supply voltage | 100...240 V AC (-15 %...+10 %) |
| Input frequency | 50/60 Hz ±5 % |
| Input voltage distortion | Within 5 % |
| Maximum input apparent power | 105 VA |
| Inrush current | 20 A, within 8 ms |
| Rated output current - 5 V DC | 3 A |
| Rated output current - 24 V DC | 0.6 A |
| External output voltage | 24 V DC ±10 % |
| Overcurrent protection - 5 V DC | 3.3 A or more |
| Overcurrent protection - 24 V DC | 0.66 A or more |
| Overvoltage protection - 5 V DC | 5.5...6.5 V |
| Efficiency | 65 % or more |
| Allowable momentary power failure time | Within 20 ms |
| Withstand voltage | Between the input and LG batched terminal and the output and FG batched terminal, 2300 V AC per minute (altitude 0...2000 m) |
| Insulation resistance | Input and LG batched, output and FG batched, batch input-LG, batch output-FG: 10 MΩ or higher by 500 VDC insulation resistance tester |
| Operation indication | LED (Normal: On (green), error: Off) |
| Fuse | Built-in (user-unchangeable) |
| Contact output section - Application | ERR. contact |
| Contact output section - Rated switching voltage/current | 24 V DC, 0.5 A |
| Contact output section - Minimum switching load | 5 V DC, 1 mA |
| Contact output section - Response time - OFF to ON | 10 ms or less |
| Contact output section - Response time - ON to OFF | 12 ms or less |
| Contact output section - Life - Mechanical | 20 million times or more |
| Contact output section - Life - Electrical | Rated switching voltage/current load: More than 100 thousand times |
| Contact output section - Surge suppressor | None |
| Contact output section - Fuse | None |
| External interface | Terminal block (M3.5 screw) |
| External dimensions - Height | 98 mm |
| External dimensions - Width | 55.2 mm |
| External dimensions - Depth | 90 mm |
| Weight | 0.39 kg |
| General specifications | Refer to the general specifications of the CPU module. |
Power supply module installation slot
