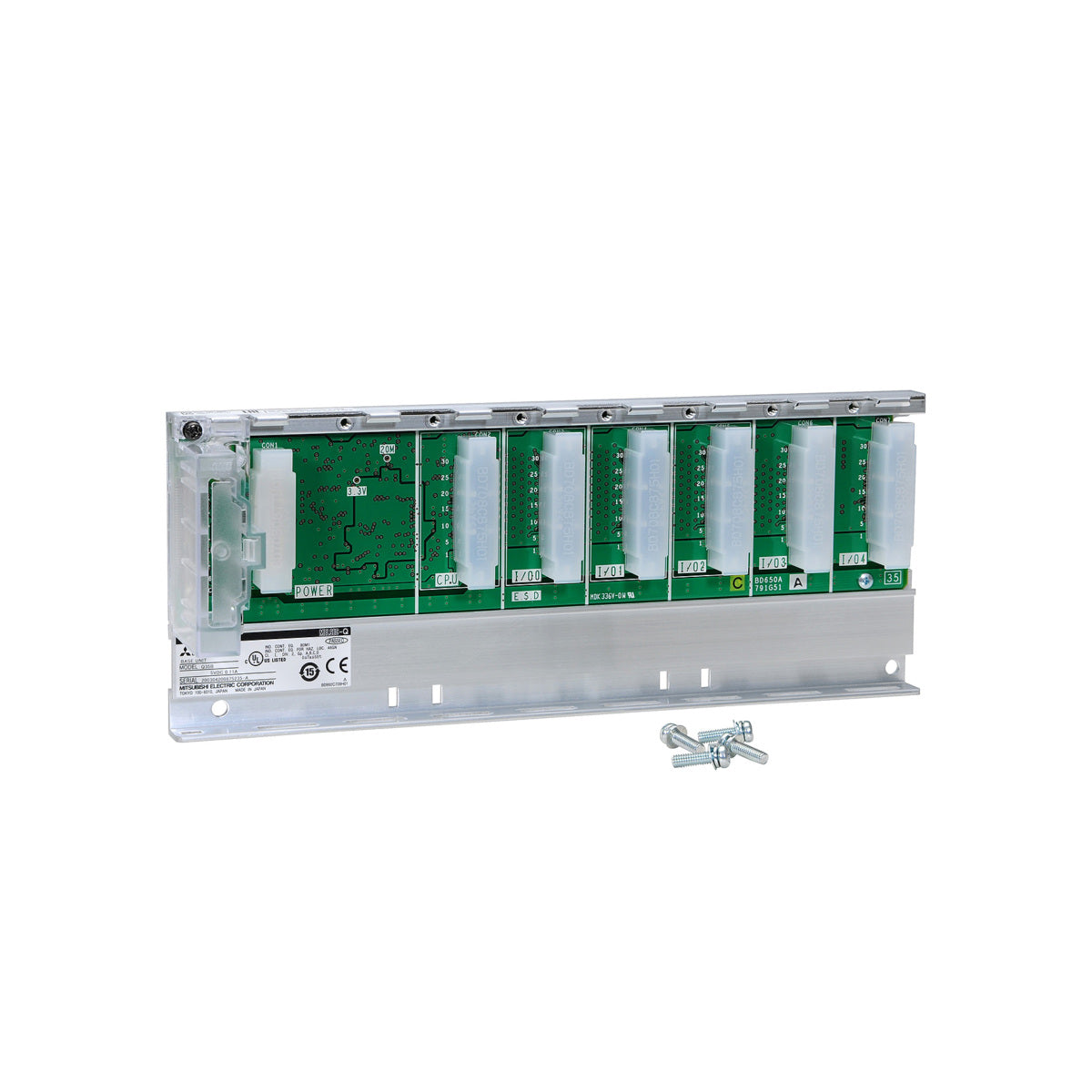

MELSEC-Q Series Q35B
| Number of mountable I/O modules | 5 |
| Possibility of extension | Extendable |
| Applicable module | MELSEC-Q series modules |
| Applicable power supply module | MELSEC-Q series power supply module |
| Internal current consumption (5 V DC) | 0.11 A |
| Mounting hole size | M4 screw hole or ø4.5 hole (for M4 screw) |
| External dimensions - Height | 98 mm |
| External dimensions - Width | 245 mm |
| External dimensions - Depth | 44.1 mm |
| Weight | 0.27 kg |
| DIN rail mounting adapter type | Q6DIN2 (sold separately) |
| General specifications | Refer to the general specifications of the CPU module. |
MELSEC-Q series power supply module
