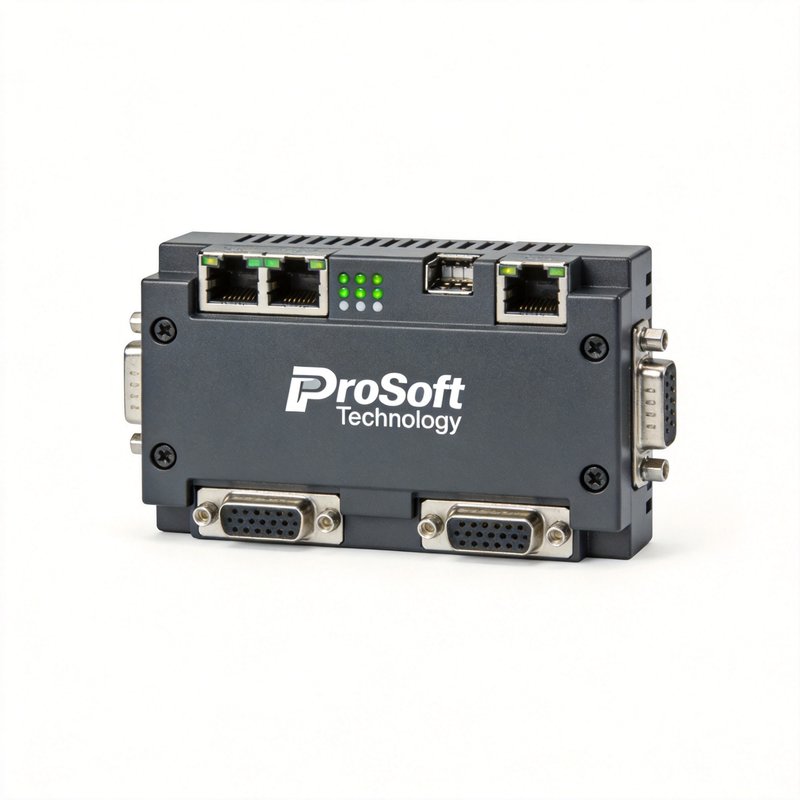

Prosoft Technology PLX31-MBTCP-MBS | Industrial Automation Component

SKU: PLX31-MBTCP-MBS
(0)
$1,364.00
In stock
Usually ships within 72 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056
ProSoft Technology  |  PLX31-MBTCP-MBS

PLX31-MBTCP-MBS

PLX31-MBTCP-MBS official manufacturer specifications

Key Ratings at a Glance

Supported Modbus Function Codes
1: Read Coil Status 2: Read Input Status 3: Read Holding Registers 4: Read Input Registers 5: Force (Write) Single Coil 6: Preset (Write) Single Holding Register
Supported Clients
10
Command List
Up to 160 fully configurable Client commands
Status Data
Error codes reported individually for each command
Command List Polling
Each command can be individually enabled or disabled;write-only-on-data-change is available
Command List
Up to 100 commands per Master port, each fully configurable for Function Code, slave address, register to/from addressing and word/bit count.
Supported Modbus Function Codes
1: Read Coil Status 2: Read Input Status 3: Read Holding Registers 4: Read Input Registers 5: Force (Write) Single Coil 6: Preset (Write) SingleHolding Register
Polling of Command List
Configurable polling of command list, including continuous and on change of data, and dynamically user or automatic enabled.

Type Designation Breakdown

PLX31-MBTCP-MBS

PLX31Product family / base order code
MBTCPOrder code segment — model / options
MBSVersion / revision suffix

Power Supply

Power Supply 24 VDC nominal 10 to 36 VDC allowedPositive, Negative, GND Terminals
Current Load 24 VDC nominal @ 300 mA10 to 36 VDC @ 610 mA maximum

Ports & Connections

Supported Modbus Function Codes 1: Read Coil Status 2: Read Input Status 3: Read Holding Registers 4: Read Input Registers 5: Force (Write) Single Coil 6: Preset (Write) Single Holding Register
Supported Clients 10
Supported Modbus Function Codes 1: Read Coil Status 2: Read Input Status 3: Read Holding Registers 4: Read Input Registers 5: Force (Write) Single Coil 6: Preset (Write) SingleHolding Register
Number of Serial Ports 4
Serial Port Isolation 2500 Vrms port signal isolation per UL 1577 serial port communication signal uses RF (Radio Frequency) modulation signal as isolation media, IC chip model is SiliconLabs Si844x (Si8440,Si8441,Si8442)

Features & Protocols

Supported Modbus Function Codes 1: Read Coil Status 2: Read Input Status 3: Read Holding Registers 4: Read Input Registers 5: Force (Write) Single Coil 6: Preset (Write) Single Holding Register
Supported Modbus Function Codes 1: Read Coil Status 2: Read Input Status 3: Read Holding Registers 4: Read Input Registers 5: Force (Write) Single Coil 6: Preset (Write) SingleHolding Register

Mechanical & Environmental

Operating Temperature -25°C to 70°C (-13°F to 158°F)
Storage Temperature -40°C to 80°C (-40°F to 176°F)
Shock IEC 60068-2-27; 15G @ 11ms, 3-Axis (Operational)IEC 60068-2-27; 30G @ 18ms, 3-Axis (Non-Operational)
Vibration IEC 60068-2-6; 5G @ 10 to 150 Hz
Relative Humidity 5% to 95% RH with no condensation
Dimensions (H x W x D) 5.38 x 1.99 x 4.38 in13.67 x 5.05 x 11.13 cm

Compliance, Approvals & Standards

Product approvals CE, UKCA, UL/cUL, RoHS
EMC EN 61000-6-x / EN 55011 (industrial environment)
Safety standard IEC/EN 61131 / 61800 / 60947 (product-specific)
