PLX31-EIP-MBTCP official manufacturer specifications

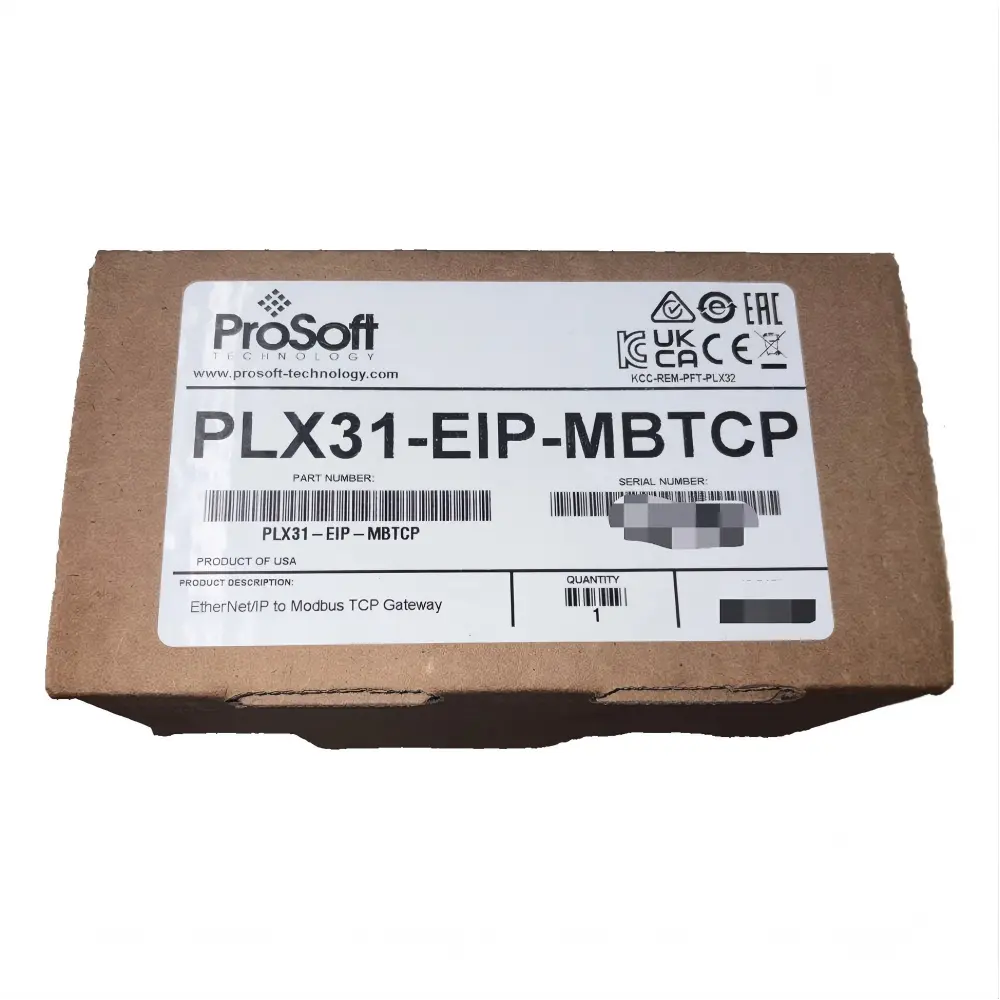

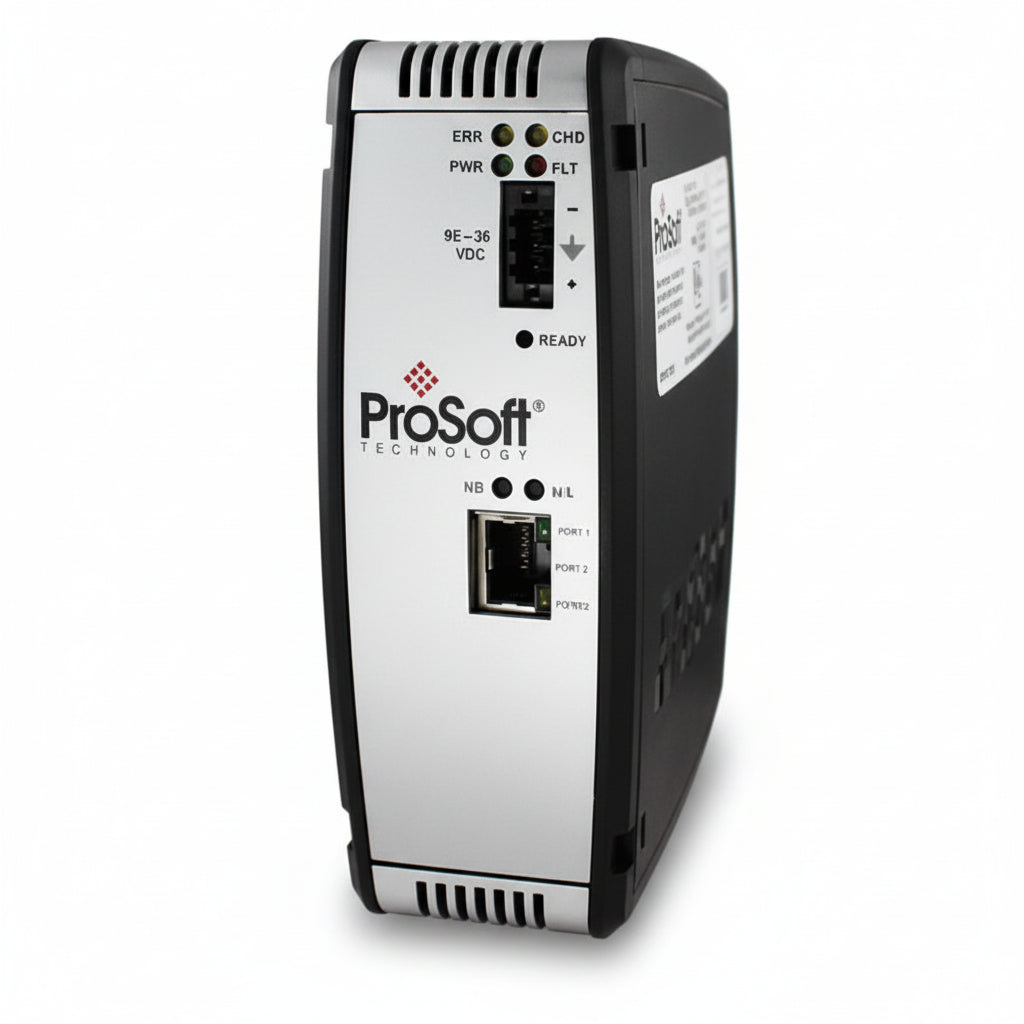

PLX31-EIP-MBTCP
| Power Supply | 24 VDC nominal 10 to 36 VDC allowed Positive, Negative, GND Terminals |
|---|---|
| Current Load | 24 VDC nominal @ 300 mA10 to 36 VDC @ 610 mA maximum |
| Number of Class 3 Server Connections | 5 |
|---|---|
| Supported PLC Types | PLC2, PLC5, SLC, CLX, CMPLX, MICROLX |
| Supported Message Types | PCCC and CIP |
| Class 3 Client Connections | Connected: 2Unconnected: 1 |
| Number of Class 1 I/O Connections | 2 |
| I/O connection sizes | 248/248 |
| CIP Services Supported | 0x4C - CIP Data Table Read 0x4D - CIP Data Table WriteCIP Generic |
| Supported Clients | 10 |
| Operating Temperature | -25°C to 70°C (-13°F to 158°F) |
|---|---|
| Storage Temperature | -40°C to 80°C (-40°F to 176°F) |
| Shock | IEC 60068-2-27; 15G @ 11ms, 3-Axis (Operational)IEC 60068-2-27; 30G @ 18ms, 3-Axis (Non-Operational) |
| Vibration | IEC 60068-2-6; 5G @ 10 to 150 Hz |
| Relative Humidity | 5% to 95% RH with no condensation |
| Dimensions (H x W x D) | 5.38 x 1.99 x 4.38 in13.67 x 5.05 x 11.13 cm |
| Product approvals | CE, UKCA, UL/cUL, RoHS |
|---|---|
| EMC | EN 61000-6-x / EN 55011 (industrial environment) |
| Safety standard | IEC/EN 61131 / 61800 / 60947 (product-specific) |
