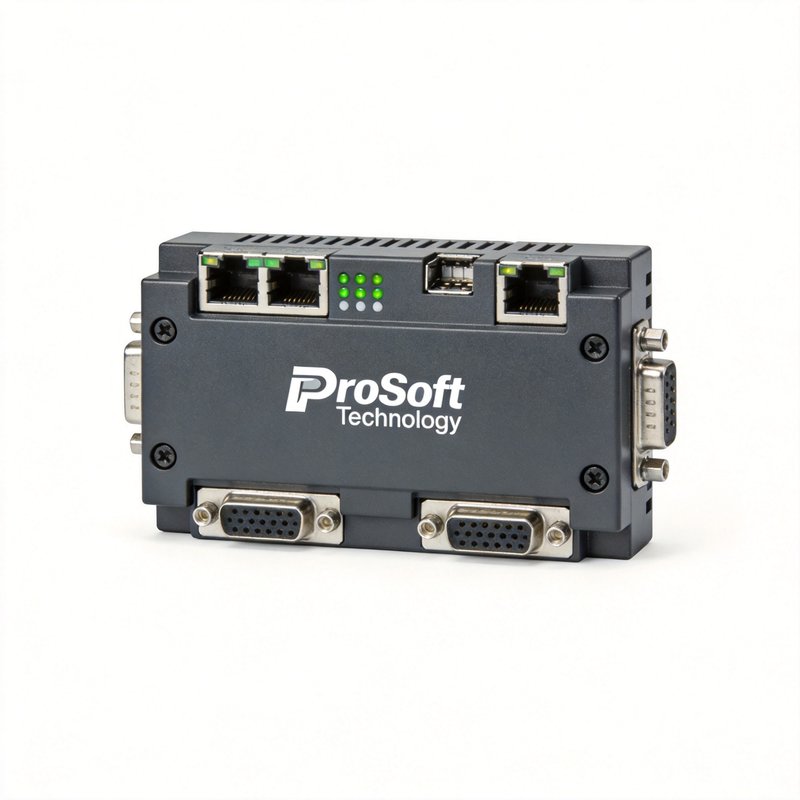

EtherNet/IP to Modbus Serial 4-Port Gateway
EtherNet/IP to Modbus Serial four-port communication gateway.
| Form Factor | Stand-alone DIN-rail mounted gateway |
| Power Supply | 24 VDC nominal, 10 to 36 VDC allowed |
| Current Load | 300 mA @ 24 VDC (610 mA max @ 10-36 VDC) |
| Operating Temperature | -25°C to 70°C (-13°F to 158°F) |
| Storage Temperature | -40°C to 80°C (-40°F to 176°F) |
| Shock | IEC 60068-2-27; 15G @ 11ms (Operational), 30G @ 18ms (Non-Operational) |
| Vibration | IEC 60068-2-6; 5G @ 10 to 150 Hz |
| Relative Humidity | 5% to 95% RH with no condensation |
| Dimensions | 5.38 x 1.99 x 4.38 in (13.67 x 5.05 x 11.13 cm) |
| Ethernet Port | 10/100 Mbps RJ45 |
| Serial Port Isolation | 2500 Vrms per UL 1577 |
| Configuration Software | ProSoft Configuration Builder (PCB) |
| Data Capacity | Up to 10,000 16-bit registers |
| Agency Approvals | UL/cUL Class I Div 2, ATEX, CE |
| Protocol Support | EtherNet/IP, Modbus Serial (Master/Slave) |
| Serial Ports | 4 isolated serial ports |
| Supported PLC Types | PLC2, PLC5, SLC, CLX, CMPLX, MICROLX |
