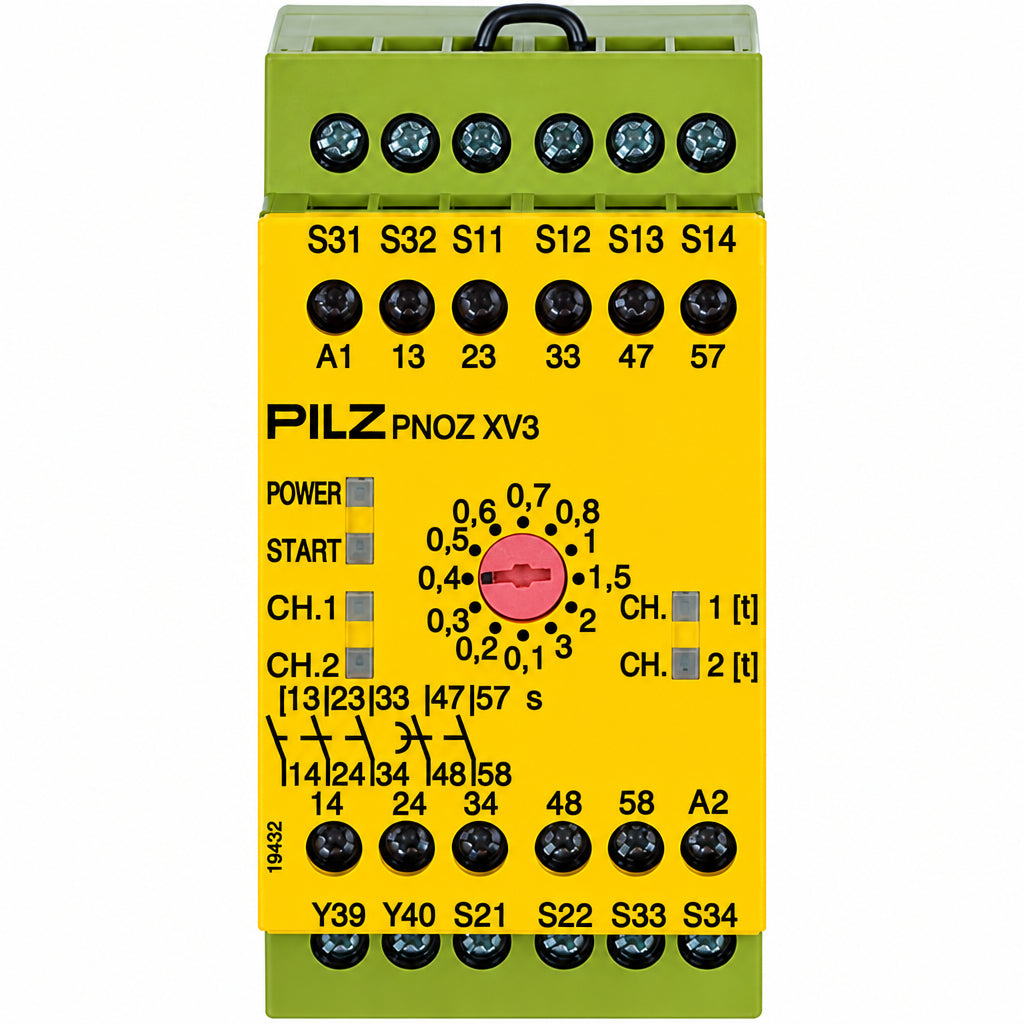

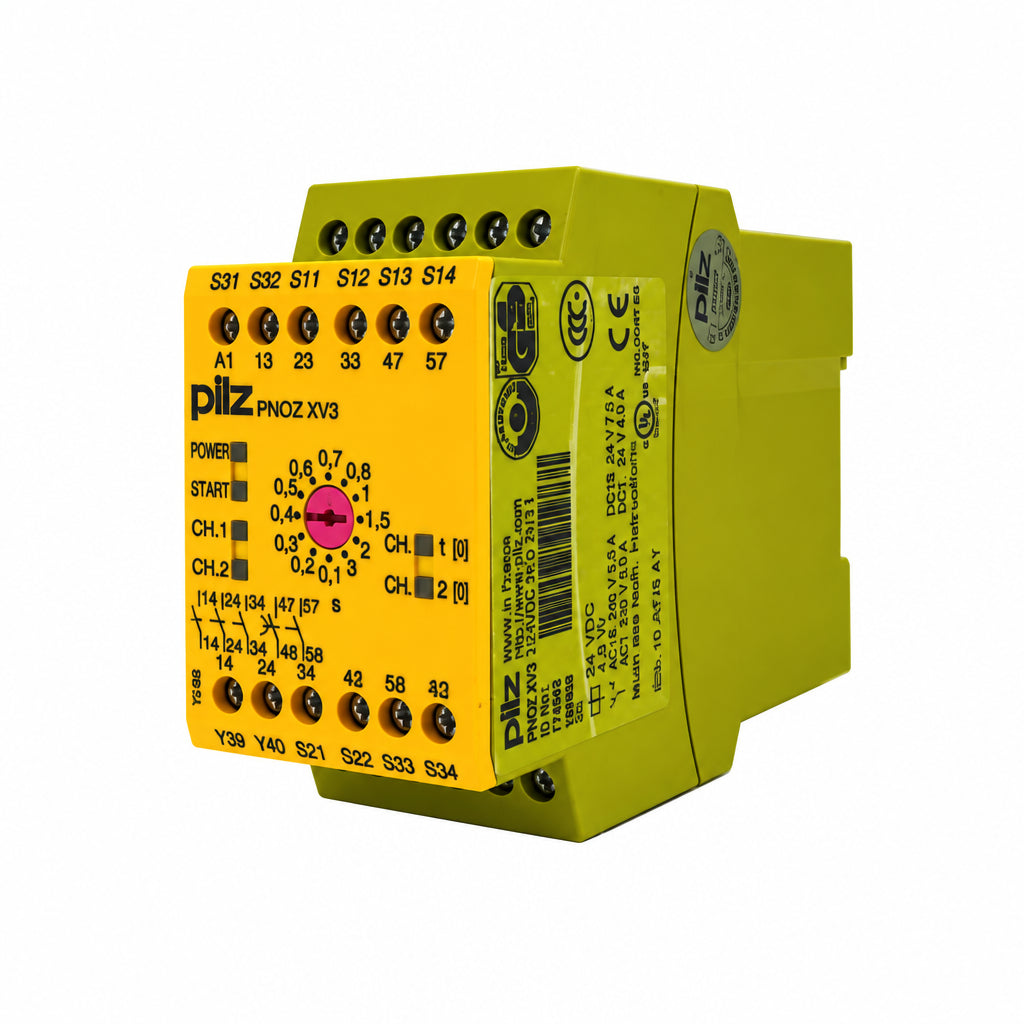

The Pilz 774542 is a safety / control relay, pNOZ XV3 safety relay, 24 VDC, 3 N/O instantaneous + 2 N/O delayed, 3 s. The listed technical data shows a supply of 24 V DC, 2 I/O points, based on the manufacturer's datasheet. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.
Technical parameters compiled from the manufacturer data sheet and reference documentation.
| Technical Specifications | |
| Type Designation | |
| Product type | Safety relay, E-STOP / safety gate monitoring with delayed outputs |
| Series | PNOZ XV3 |
| Overvoltage category / pollution degree | III / II / 2 |
| Connection type | Screw terminal |
| Power Supply | |
| Supply voltage | 24 V DC |
| External power supply output | 4.5 W DC |
| Min. input resistance at power-on | 135 Ohm |
| Rated insulation / impulse withstand voltage | 250 V / 4 kV |
| Inputs & Outputs | |
| Number of inputs | 2 |
| Input circuit current | 35 mA |
| Max. cable resistance, single/dual-channel | 100 Ohm |
| Mechanical | |
| Contact material | AgSnO2 + 0.2 um Au |
| Protection degree | IP40 housing, IP20 terminals, IP54 cabinet |
| Terminal torque | 0.5 Nm |
| Dimensions H x W x D | 87 x 45 x 121 mm |
| Weight | 360 g |
| Environmental | |
| Ambient temperature | -10 to 55 C |
| Storage temperature | -40 to 85 C |
| Humidity | 93 % r.h. at 40 C, no condensation |
| EMC standards | EN 60947-5-1, EN 61000-6-2, EN 61326-3-1 |
| Vibration | 10-55 Hz, 0.35 mm |
| Compliance, Approvals & Standards | |
| Certifications | CCC, CE, EAC, TUV, UKCA, cULus Listed |
| Max. cable resistance, cross-short detection | 10 Ohm |
| Other | |
| Order number | 774542 |
| Residual ripple | 160 % |
| Duty cycle | 100 % |
| Max. inrush current pulse A1 | 5 A, 1 ms |
| Start circuit current | 50 mA |
| Instantaneous safety contacts (N/O) | 3 |
| Max. short-circuit current IK | 1 kA |
| AC1 switching capacity | 8 A, 240 V, 2000 VA |
| DC1 switching capacity | 8 A, 24 V, 200 W |
| AC15 utilization | 5 A at 230 V |
| DC13 utilization | 7 A at 24 V |
| Fuse rating (quick / slow / gG) | 10 A / 6 A / 10 A |
| Switch-on delay, automatic start | 350 ms typ., 650 ms max. |
| Delay-on de-energisation with E-STOP | 15 ms typ., 30 ms max. |
| Selectable delay time tv | 0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 1, 1.5, 2, 3 s |
| Time accuracy | -15 % / +15 % +50 ms |
| Safety level, instantaneous contacts | PL e / Cat. 4 / SIL 3, PFHD 2.31E-09 |
| Safety level, delayed contacts <30 s | PL d / Cat. 3 / SIL 3, PFHD 2.64E-09 |
| Mission time TM | 20 years |
| Mechanical life | 10,000,000 cycles |
| Conductor cross section | 0.2-4 mm2 (24-10 AWG) |
| Stripping length | 6 mm |
