Phoenix Contact · Current transformer

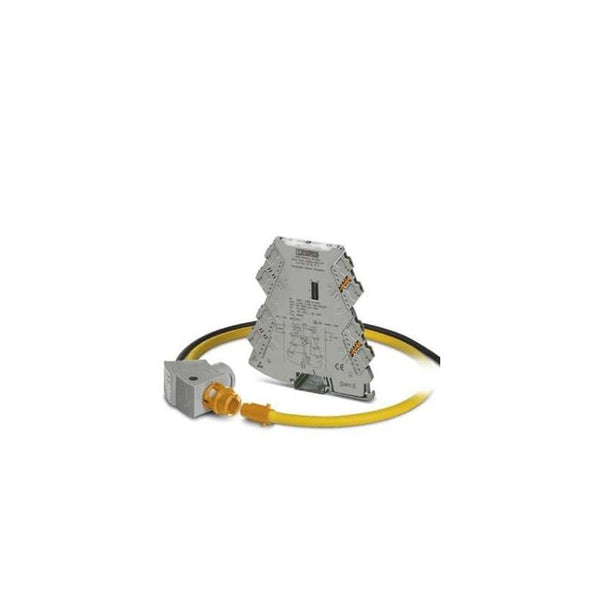

2906236 – PACT RCP-4000A-UIRO-PT-D190 · Current transformer
The Phoenix Contact 2906236 (PACT RCP-4000A-UIRO-PT-D190) is a Current transformer in the Phoenix Contact range. The specification below is transcribed from the official Phoenix Contact product page for this order number, which publishes the technical data in 12 sections: Product properties, Electrical properties, Input data, Output data, Connection data, Dimensions and further sections.
Nominal voltage24 VÂ DC
Rated current24.6 mA
Degree of protectionIP54 (not assessed by UL)
Ambient temperature-30 °C ... 80 °C (Measuring coil)
Dimensions6.2 mm
ConnectionPush-in connection
MaterialPC
How it works
Phoenix Contact keeps the values in the groups shown below, in the order the manufacturer publishes them: Product properties, Electrical properties, Input data, Output data, Connection data, Dimensions, Material specifications, Environmental and real-life conditions, Approvals, EMC data, Standards and regulations, Mounting. The values are carried over unchanged from the official product page; nothing is added beyond what the manufacturer states for this order number.
Specifications
Product properties
Product typeCurrent transformer
Product familyRogowski coil and 4-way signal conditioner
Insulation characteristics
Overvoltage categoryII
Pollution degree2
Electrical properties
Electrical isolationReinforced insulation in accordance with IEC 61010-1
Typical measuring error< 1 %
Protective circuitSurge protection; 33Â V suppressor diode
Step response (0–99%)110 ms
Rated insulation voltage300 V
Measuring coil
Conductor structure signal line2x 0.22 mm (Signal (tinned))
Value1x 0.22 mm (Shielding (tinned))
Insulationdouble insulation
Rated insulation voltage1000 VÂ AC (rms CAT III)
Value600 VÂ AC (rms CAT IV)
Test voltage10.45 kV DC (60 s)
Accuracy class0.2 (IECÂ 61869-10:Â A1)
Measuring transducers
Maximum transmission error≤ 0.5 % (From the range end value)
Frequency range16 Hz ... 1000 Hz
Test voltage3 kV (50Â Hz, 1Â min.)
General
Can be calibratedno
Converter typeRogowski coil and 4-way signal conditioner
Supply: Measuring transducers
Nominal supply voltage24 VÂ DC
Nominal supply voltage range9.6 VÂ DC ... 30 VÂ DC
Power consumption≤ 1 W (at I OUT = 20 mA, 9.6 V DC, 600 Ω load)
Input data
Frequency
DesignationMeasuring coil
Frequency measuring range40 Hz ... 20000 Hz
Signal
Input signal (at 50 Hz)100 mV (1000Â A)
Curve typeSine
Input impedance> 100 kΩ
Current transformer
Configurable/programmableVia DIP switches
Rated frequency: Standard converter40 Hz ... 20000 Hz
Primary rated current I pn0 A AC ... 100 A AC
Value0 A AC ... 250 A AC
Value0 A AC ... 400 A AC
Value0 A AC ... 630 A AC
Value0 A AC ... 1000 A AC
Value0 A AC ... 1500 A AC
Value0 A AC ... 2000 A AC
Value0 A AC ... 4000 A AC
Can be calibratedno
Converter typeRogowski coil and 4-way signal conditioner
Output data
Switching: Transistor
Number of outputs1
Contact switching type1 N/O contact
Minimum switching voltage1 V
Maximum switching voltage30 VÂ DC
Min. switching current100 µA
Max. switching current100 mA (at 30 V)
Signal
DesignationMeasuring coil
Output signal (at 50 Hz)100 mV (no load, at 1,000 A)
Output voltage (in no-load operation)V OUT = M * dI/dt
Output voltage (sinusoidal, in no-load operation)100 mV (V OUT = 2 * π * M * f * I (M = 0.318 μH; example: At 50 Hz; I = 1,000 A))
Signal
DesignationMeasuring transducer
Configurable/programmableYes
Voltage output signal0 V ... 10 V (via DIP switch)
Value2 V ... 10 V (via DIP switch)
Value0 V ... 5 V (via DIP switch)
Value1 V ... 5 V (via DIP switch)
Value0 V ... 10.5 V (can be set via software)
Max. voltage output signalï‚» 12.3 V
Current output signal0 mA ... 20 mA (via DIP switch)
Value4 mA ... 20 mA (via DIP switch)
Value0 mA ... 10 mA (via DIP switch)
Value2 mA ... 10 mA (via DIP switch)
Value0 mA ... 21 mA (can be set via software)
Max. current output signal24.6 mA
Load/output load voltage output≥ 10 kΩ
Load/output load current output≤ 600 Ω (20 mA)
Ripple< 20 mV PP
Value< 20 mV PP
Connection data
Measuring transducer side
Connection methodPush-in connection
Stripping length10 mm
Conductor cross-section rigid0.2 mm² ... 2.5 mm²
Conductor cross-section flexible0.2 mm² ... 2.5 mm²
Conductor cross-section AWG26 ... 12
Dimensions
Item dimensions
Width6.2 mm
Height110.5 mm
Depth120.5 mm
Measuring coil
Length600 mm
Diameter8.3 mm ±0.2 mm
Measuring coil when installed
Diameter190 mm
Signal line
Length3 m
Width6.2 mm
Height110.5 mm
Depth120.5 mm
Material specifications
Housing materialPC
ValuePBT
Coil materialElastollan
Environmental and real-life conditions
Ambient conditions
Measuring coil degree of protectionIP54 (not assessed by UL)
Measuring transducer degree of protectionIP20
Ambient temperature (operation) (Measuring coil)-30 °C ... 80 °C (Measuring coil)
Ambient temperature (operation) (Measuring transducer)-40 °C ... 70 °C (Measuring transducer)
Ambient temperature (storage/transport)-40 °C ... 80 °C (Measuring coil)
Value-40 °C ... 85 °C (Measuring transducer)
Altitude< 2000 m
Permissible humidity (operation)5 % ... 95 % (non-condensing)
Approvals
CE
CertificateCE-compliant
UKCA
CertificateUKCA-compliant
CMIM
CertificateCMIM-compliant
UL, USA/Canada
IdentificationUL 61010 Recognized
NoteMeasuring coil
UL, USA/Canada
IdentificationUL 508 Listed
NoteMeasuring transducer
EMC data
Electromagnetic compatibilityConformance with EMC directive
Noise immunityEN 61000-6-2
NoteWhen being exposed to interference, there may be minimal deviations.
Noise emission
Standards/regulationsEN 61000-6-4
Standards and regulations
Electrical isolationReinforced insulation in accordance with IEC 61010-1
Standards/regulationsIECÂ 61010-2-030
ValueIECÂ 61869-10
Mounting
Mounting typeDIN rail mounting
Order number
2906236 — https://www.phoenixcontact.com/en-us/products/current-transformer-pact-rcp-4000a-uiro-pt-d190-2906236
Official source
Phoenix Contact official product page, technical data section (EN-US); order number 2906236.
FAQ
What voltage does the 2906236 operate at?
Phoenix Contact gives a nominal voltage of 24 VÂ DC for this order number.
What current rating is specified?
The technical data lists a rated current of 0 A AC ... 100 A AC.
What degree of protection does the 2906236 have?
It is rated IP54 (not assessed by UL), as stated in the official technical data.
What ambient temperature is permitted?
Phoenix Contact specifies an ambient temperature of -30 °C ... 80 °C (Measuring coil).
What are the dimensions?
The technical data gives 6.2 mm.
How is the 2906236 connected?
Phoenix Contact specifies the connection as Push-in connection.
What material is the housing made of?
The technical data lists PC.
