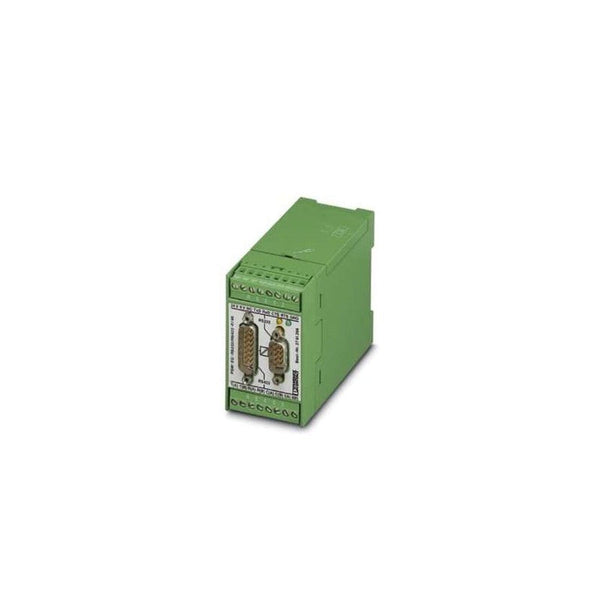

2761253 – PSM-EG-RS232/TTY-P/2K · Interface converter
The Phoenix Contact 2761253 (PSM-EG-RS232/TTY-P/2K) is an Interface converter in the Phoenix Contact range. The specification below is transcribed from the official Phoenix Contact product page for this order number, which publishes the technical data in 9 sections: Product properties, Electrical properties, Connection data, Interfaces, Dimensions, Material specifications and further sections.
Nominal voltage24 V DC ±20 %
Degree of protectionIP20
Ambient temperature0 °C ... 50 °C
Dimensions45 mm
ConnectionD-SUBÂ 9 plug
MaterialABS
How it works
Phoenix Contact keeps the values in the groups shown below, in the order the manufacturer publishes them: Product properties, Electrical properties, Connection data, Interfaces, Dimensions, Material specifications, Environmental and real-life conditions, EMC data, Mounting. The values are carried over unchanged from the official product page; nothing is added beyond what the manufacturer states for this order number.
Specifications
Product properties
Product typeInterface converter
Electrical properties
Electrical isolationVCC // V.24 (RS-232) // TTY
Maximum power dissipation for nominal condition3.12 W
Test voltage data interface/power supply2.5 kV
Value2.5 kV AC
Test voltage data interfaces2.5 kV AC
Supply
Nominal supply voltage24 V DC ±20 %
Typical current consumption130 mA (24Â VÂ DC)
Connection data
Supply
Tightening torque0.56 Nm ... 0.79 Nm
Interfaces
Bit distortion≤ 5 %
Bit delay≤ 3 µs
SignalModbus
Data: V.24 (RS-232) interface in acc. with ITU-T V.28, EIA/TIA-232, DINÂ 66259-1
Serial transmission speed≤ 19.2 kbps
Connection methodD-SUBÂ 9 plug
ValuePluggable screw connection
Transmission length≤ 15 m (twisted pair)
Conductor cross-section flexible max.2.5 mm²
Conductor cross-section flexible min.0.2 mm²
Conductor cross-section, rigid max.2.5 mm²
Conductor cross-section, rigid min.0.2 mm²
Conductor cross-section AWG max.14
Conductor cross-section AWG min.24
Data: TTY interface, CL2 in acc. with DIN 66348-1
Serial transmission speed≤ 19.2 kbps
Connection methodD-SUB-9 female connector
ValuePluggable screw connection
Transmission length≤ 1000 m (twisted pair)
Conductor cross-section flexible max.2.5 mm²
Conductor cross-section flexible min.0.2 mm²
Conductor cross-section AWG max.14
Conductor cross-section AWG min.24
Load/output load current output≤ 500 Ω
Dimensions
Width45 mm
Height75 mm
Depth110 mm
Material specifications
Color (Housing)green (RAL 6021)
Material (Housing)ABS
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP20
Ambient temperature (operation)0 °C ... 50 °C
EMC data
Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Noise emission
Standards/regulationsEN 55022 / Class B
Mounting
Mounting typeDIN rail mounting
Order number
2761253 — https://www.phoenixcontact.com/en-us/products/interface-converter-psm-eg-rs232tty-p2k-2761253
Official source
Phoenix Contact official product page, technical data section (EN-US); order number 2761253.
FAQ
What voltage does the 2761253 operate at?
Phoenix Contact gives a nominal voltage of 24 V DC ±20 % for this order number.
What degree of protection does the 2761253 have?
It is rated IP20, as stated in the official technical data.
What ambient temperature is permitted?
Phoenix Contact specifies an ambient temperature of 0 °C ... 50 °C.
What are the dimensions?
The technical data gives 45 mm.
How is the 2761253 connected?
Phoenix Contact specifies the connection as D-SUBÂ 9 plug.
What material is the housing made of?
The technical data lists ABS.
