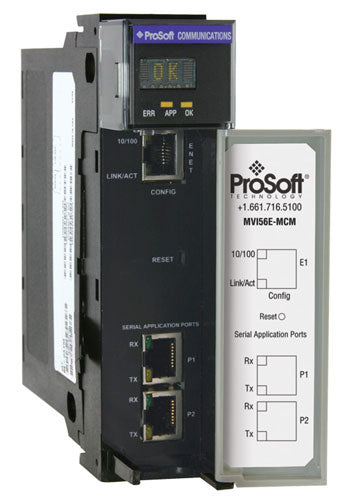

Enhanced Modbus Master/Slave Module for ControlLogix
Enhanced Modbus Master/Slave Communication Module with Ethernet port for configuration, diagnostics, and CIPconnect technology.
| Platform | Rockwell Automation ControlLogix (1756 backplane) |
| Backplane Current Load | 800 mA @ 5V DC, 3 mA @ 24V DC |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Shock | 30g operational, 50g non-operational |
| Vibration | 5 g from 10 to 150 Hz |
| Relative Humidity | 5% to 95% (non-condensing) |
| Processor Compatibility | ControlLogix processors (firmware v10+) |
| Configuration Port | RJ45 RS-232, CIPconnect Ethernet routing |
| Configuration Software | ProSoft Configuration Builder (PCB) |
| Enhanced Features | Ethernet port for config/diagnostics, web server |
| Agency Approvals | UL/cUL Class I Div 2, ATEX, CE |
| Protocol | Modbus RTU/ASCII (Master/Slave) |
| Serial Ports | 2 (RS-232/422/485) |
| Baud Rate | 110 to 115.2K baud |
