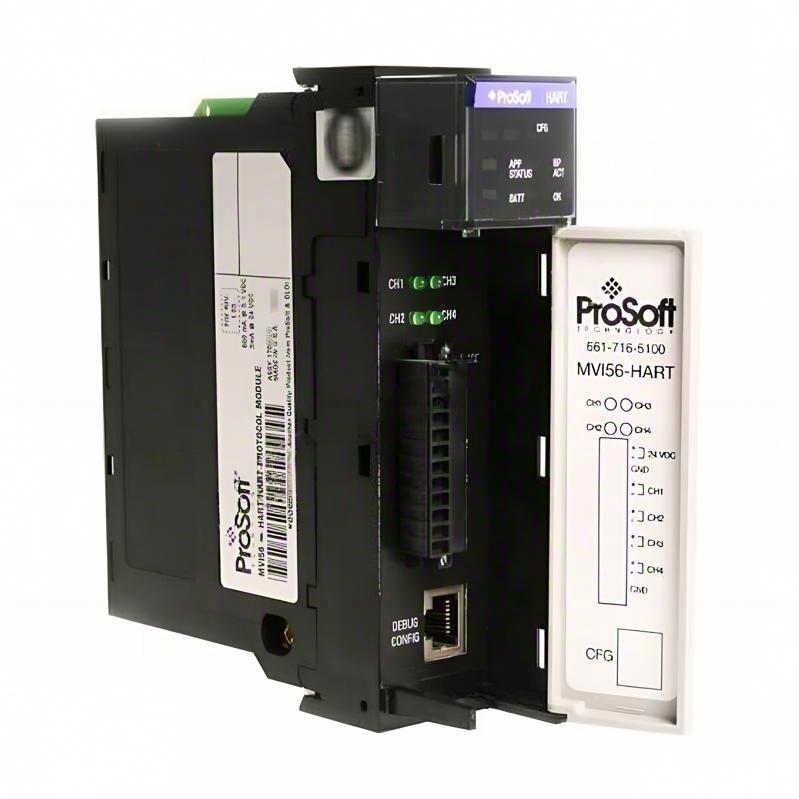

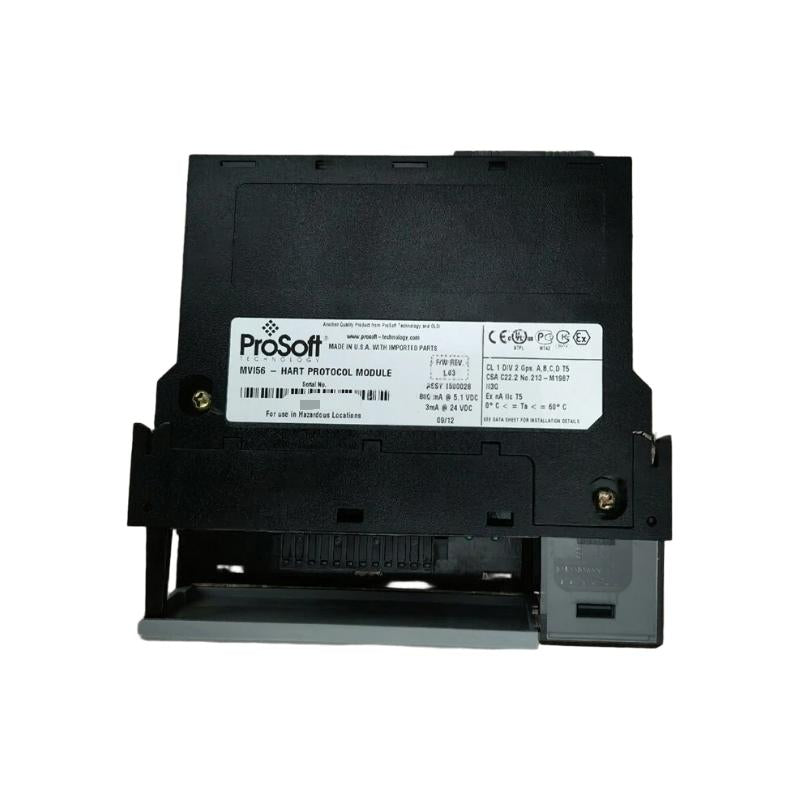

HART Multidrop Master Communication Module for ControlLogix
HART Multidrop Master Communication Module for ControlLogix. Features four independent HART master ports supporting up to 15 devices per port.
| Platform | Rockwell Automation ControlLogix (1756 backplane) |
| Backplane Current Load | 800 mA @ 5V DC |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Shock | 30g operational, 50g non-operational |
| Vibration | 5 g from 10 to 150 Hz |
| Relative Humidity | 5% to 95% (non-condensing) |
| Processor Compatibility | ControlLogix processors |
| Configuration Port | RJ45 RS-232 (DB-9M with supplied cable) |
| Configuration Software | ProSoft Configuration Builder (PCB) |
| Agency Approvals | UL/cUL Class I Div 2, ATEX, CE |
| Protocol | HART (Bell 202 FSK at 1200 baud) |
| HART Ports | 4 independent master channels |
| Devices Per Port | Up to 15 (multidrop) |
| HART Commands | Universal (00-03, 06-09, 11-22), Common Practice (33-83, 105-110) |
| Data Registers | 5000 registers maximum |
| Application Ports | HART terminal connectors |
| Burst Mode | Supported |
| Auto Polling | Supported |
