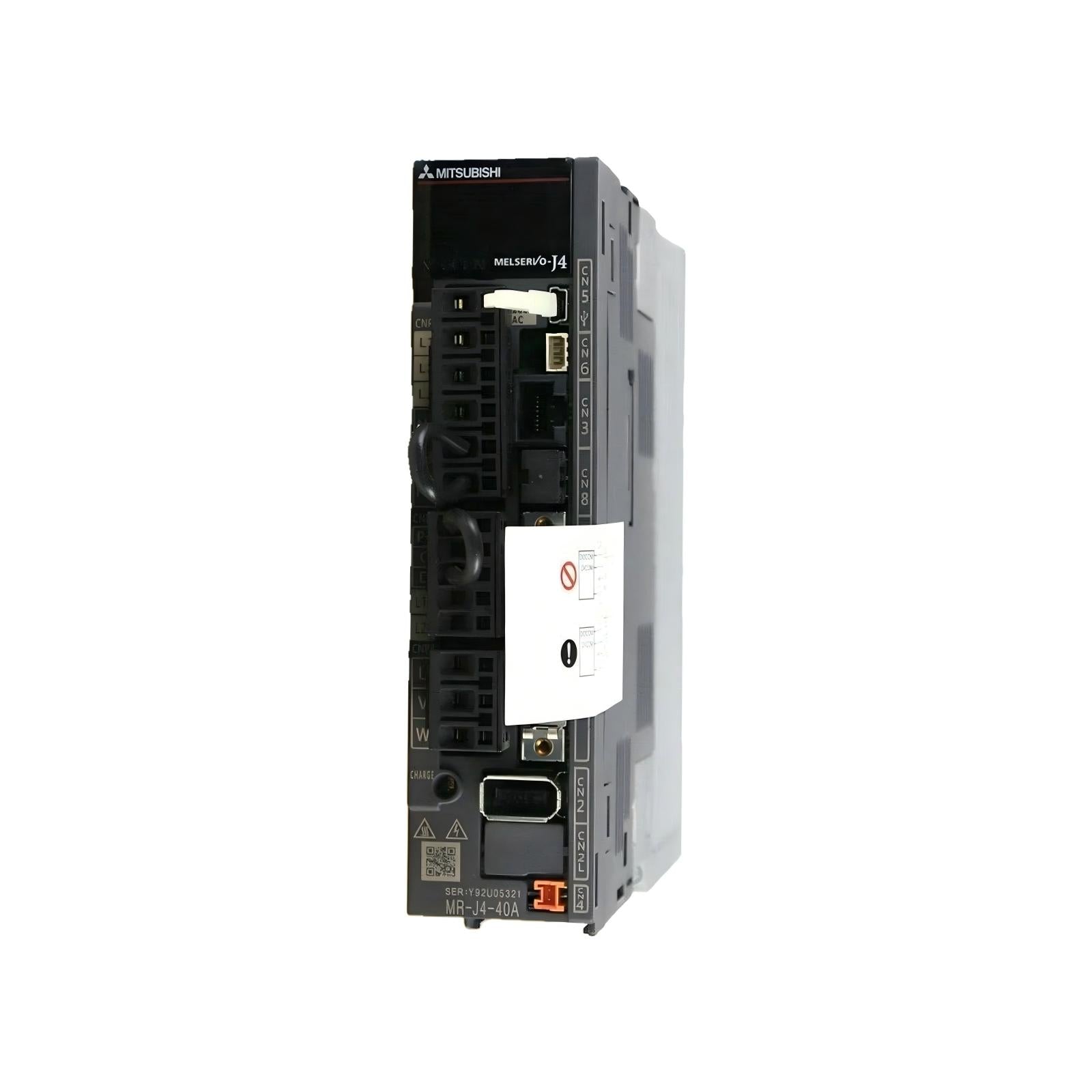

AC Servos-MELSERVO MR-J4-40A
| Series | MELSERVO-J4 series |
| Power class | 200 V AC |
| Model name | MR-J4-40A |
| Capacity [kW] | 0.4 |
| Command interface | General-Purpose Interface |
| Output - Rated voltage | 3-phase 170 V AC |
| Output - Rated current [A] | 2.8 |
| Main circuit power supply input - Voltage/frequency *1 - AC input | 3-phase or 1-phase 200 V AC to 240 V AC, 50 Hz/60 Hz |
| Main circuit power supply input - Rated current [A] *3 | 2.6 |
| Main circuit power supply input - Permissible voltage fluctuation - AC input | 3-phase or 1-phase 170 V AC to 264 V AC |
| Main circuit power supply input - Permissible frequency fluctuation | ±5 % maximum |
| Control circuit power supply input - Voltage/frequency - AC input | 1-phase 200 V AC to 240 V AC, 50 Hz/60 Hz |
| Control circuit power supply input - Rated current [A] | 0.2 |
| Control circuit power supply input - Permissible voltage fluctuation - AC input | 1-phase 170 V AC to 264 V AC |
| Control circuit power supply input - Permissible frequency fluctuation | ±5 % maximum |
| Control circuit power supply input - Power consumption [W] | 30 |
| Interface power supply | 24 V DC ± 10 % (required current capacity: 0.5 A (including CN8 connector signals)) |
| Control method | Sine-wave PWM control/current control method |
| Permissible regenerative power - Built-in regenerative resistor [W] *4 *5 | 10 |
| Permissible regenerative power - External regenerative resistor (standard accessory) [W] *4 *5 *6 *7 | - |
| Dynamic brake *8 | Built-in |
| Communication function | USB: Connect a personal computer (MR Configurator2 compatible) RS-422/RS-485: 1:n communication (up to 32 axes) *10 |
| A/B/Z-phase pulse output | Compatible |
| Analog monitor | 2 channels |
| Position control mode - Maximum input pulse frequency | 4 Mpulses/s (when using differential receiver), 200 kpulses/s (when using open collector) |
| Position control mode - Positioning feedback pulse | Encoder resolution: 22 bits |
| Position control mode - Command pulse multiplying factor | Electronic gear A/B multiple, A: 1 to 16777215, B: 1 to 16777215, 1/10 |
| Position control mode - In-position range setting | 0 pulse to ±65535 pulses (command pulse unit) |
| Position control mode - Error excessive | ±3 rotations |
| Position control mode - Torque limit | Set by parameters or external analog input (0 V DC to +10 V DC/maximum torque) |
| Speed control mode - Speed control range | Analog speed command 1:2000, internal speed command 1:5000 |
| Speed control mode - Analog speed command input | 0 V DC to ±10 V DC/rated speed (Speed at 10 V is changeable with [Pr. PC12].) |
| Speed control mode - Speed fluctuation rate | ±0.01 % maximum (load fluctuation: 0 % to 100 %), 0 % (power fluctuation: ±10 %) ±0.2 % maximum (ambient temperature: 25 °C ± 10 °C) only when using analog speed command |
| Speed control mode - Torque limit | Set by parameters or external analog input (0 V DC to +10 V DC/maximum torque) |
| Torque control mode - Analog torque command input | 0 V DC to ±8 V DC/maximum torque (input impedance: 10 kΩ to 12 kΩ) |
| Torque control mode - Speed limit | Set by parameters or external analog input (0 V DC to ± 10 V DC/rated speed) |
| Positioning mode *11 | Not compatible |
| Fully closed loop control *12 | Two-wire type communication method |
| Load-side encoder interface | Mitsubishi Electric high-speed serial communication |
| Servo functions | Advanced vibration suppression control II, adaptive filter II, robust filter, auto tuning, one-touch tuning, tough drive function, drive recorder function, machine diagnosis function, power monitoring function, super trace control *13 , lost motion compensation function *13 |
| Protective functions | Overcurrent shut-off, regenerative overvoltage shut-off, overload shut-off (electronic thermal), servo motor overheat protection, encoder error protection, regenerative error protection, undervoltage protection, instantaneous power failure protection, overspeed protection, error excessive protection |
| Safety sub-function | STO (IEC/EN 61800-5-2) |
| Safety performance - Satisfied standards *14 | EN ISO 13849-1:2015 Category 3 PL e, IEC 61508 SIL 3, EN 62061 SIL CL 3, EN 61800-5-2 |
| Safety performance - Response performance | 8 ms or less (STO input OFF → energy shut-off) |
| Safety performance - Test pulse input (STO) *15 | Test pulse interval: 1 Hz to 25 Hz, test pulse off time: 1 ms maximum |
| Safety performance - Mean time to dangerous failure (MTTFd) | MTTFd ≥ 100 [years] (314a) |
| Safety performance - Diagnostic coverage (DC) | DC = Medium, 97.6 [%] |
| Safety performance - Probability of dangerous Failure per Hour (PFH) | PFH = 6.4 × 10 -9 [1/h] |
| Satisfied standards | Refer to " Standards and certifications (by product) Products " for compliance with global standards and regulations. |
| Structure (IP rating) | Natural cooling, open (IP20) |
| Close mounting - 3-phase power supply input | Possible *17 |
| Close mounting - 1-phase power supply input | Possible *17 |
| Environment - Ambient temperature - Operation | 0 °C to 55 °C (non-freezing) |
| Environment - Ambient temperature - Storage | -20 °C to 65 °C (non-freezing) |
| Environment - Ambient humidity | Operation/storage: 5 %RH to 90 %RH (non-condensing) |
| Environment - Ambience | Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust |
| Environment - Altitude | 2000 m or less above sea level *18 |
| Environment - Vibration resistance - | 5.9 m/s 2 at 10 Hz to 55 Hz (directions of X, Y, and Z axes) |
| Mass [kg] | 1.0 |
