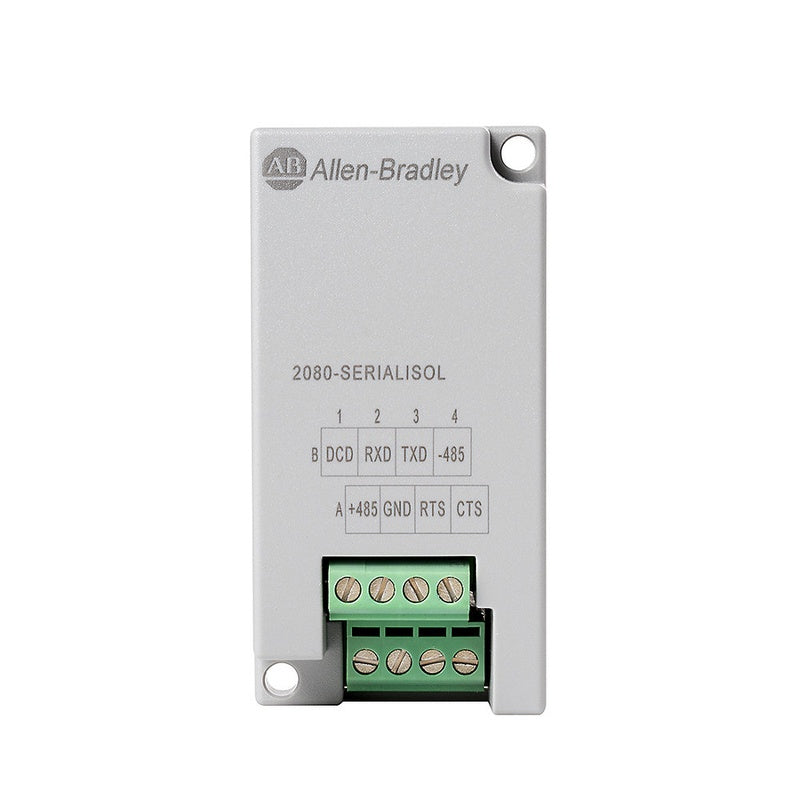

Allen-Bradley 2080-SERIALISOL - Micro800 Isolated Serial Port Plug-In

SKU: 2080-SERIALISOL
(2)
$40.54
-13% $46.62 $40.54
In stock
Usually ships within 24 hours
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

Micro800 Isolated Serial Port Plug-In

2080 Micro800 System, RS232/485 isolated serial port

Specifications

  • Temperature Rating: -20¡­65 ¡ãC (-4¡­149 ¡ãF)
  • Cable length using RS485, Max: 1000
  • Conducted RF immunity: IEC 61000-4-6, 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
  • Data transmission type: Serial
  • EFT/B immunity: IEC 61000-4-4: ¡À 2kV @ 5kHz on communication ports
  • Emissions: CISPR 11 (IEC 61000-6-4): Class A
  • ESD immunity: IEC 61000-4-2: 6 kV contact discharges, 8 kV air discharges
  • IO link master: false
  • Isolated voltage: 500V AC
  • Mounting torque: 0.2 nm
  • Nonoperating temperature: -40...85 ¡ãC (-40...185 ¡ãF), IEC60068-2-1 (Test Ad, operating cold), IEC60068-2-2 (Test Bd, operating dry heat), IEC 60068-2-14 (Test Nb, operating thermal shock)
  • Operating temperature: -20...65 ¡ãC (-4...149 ¡ãF), IEC 60068-2-1 (Test Ad, operating cold), IEC 60068-2-2 (Test Bd, operating dry heat), IEC 60068-2-14 (Test Nb, operating thermal shock)
  • Radiated RF immunity: IEC 61000-4-3: 10V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10V/m with 200 Hz 50% pulse 100% AM @ 900 MHz, 10V/m with 200 Hz 50% pulse 100% AM @ 1890 MHz, 10V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz,
  • Redundancy: false
  • Shock: Operating: 25 G, IEC 60068-2-27 (Test Ea, unpackaged shock)
  • SIL according to IEC 61508: None
  • Suitable for safety functions: false
  • Supporting protocol: Modbus RTU (RS232 and RS485)
  • Supporting protocol for ASI: false
  • Supporting protocol for AS-Interface Safety at Work: false
  • Supporting protocol for CAN: false
  • Supporting protocol for Data-Highway: false
  • Supporting protocol for DeviceNet: true
  • Supporting protocol for DeviceNet Safety: true
  • Supporting protocol for EtherNet/IP: false
  • Supporting protocol for Foundation Fieldbus: false
  • Supporting protocol for INTERBUS: false
  • Supporting protocol for INTERBUS-Safety: false
  • Supporting protocol for KNX: false
  • Supporting protocol for LON: false
  • Supporting protocol for Modbus: false
  • Supporting protocol for other bus systems: false
  • Supporting protocol for PROFIBUS: false
  • Supporting protocol for PROFINET CBA: false
  • Supporting protocol for PROFINET IO: false
  • Supporting protocol for PROFIsafe: false
  • Supporting protocol for SafetyBUS p: false
  • Supporting protocol for SERCOS: false
  • Supporting protocol for SUCONET: false
  • Supporting protocol for TCP/IP: false
  • Surge transient immunity: IEC 61000-4-5: ¡À 2 kV line-earth(CM) on communication ports
  • Surrounding air temperature, max: 65 ¡ãC
  • Terminal screw torque: 0.22...0.25 Nm (1.95...2.21 in-lb) (using a 2.5 mm (0.10 in.) flat-blade screwdriver)
  • Transmission rate: 19.2 kbps
  • Vibration: IEC 60068-2-6 (Test Fc, operating), 2 G @ 10...500 Hz
  • Wire size: 0.14...1.5 mm2 (26...16 AWG) solid copper wire or, 0.14...1.0 mm2 (22...18 AWG) stranded copper wire, Rated at 90 ¡ãC (194 ¡ãF) insulation max
  • With optical interface: false
  • With potential separation: false
  • Product Series: A
