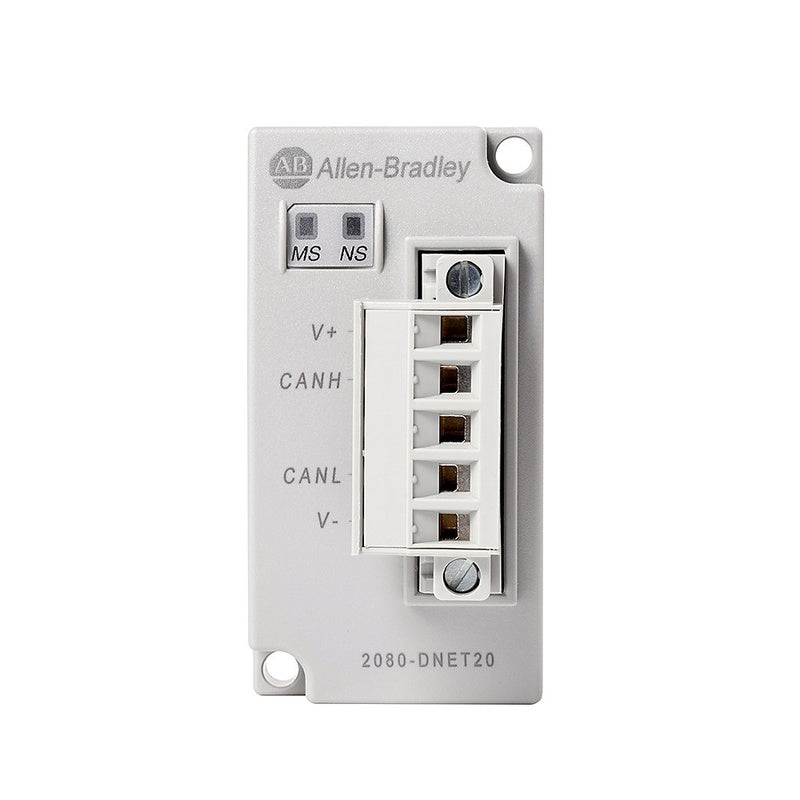

Allen-Bradley 2080-DNET20 - Micro800 DeviceNet Scanner Plug-In

SKU: 2080-DNET20
(4)
$139.87
In stock
Usually ships within 24 hours
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

Micro800 DeviceNet Scanner Plug-In

2080 Micro800 System, DeviceNet Scanner, Supports upto 20 Nodes

Specifications

  • Communication Protocol: DeviceNet
  • Power Supply: 24V DC
  • Temperature Rating: -20¡­65 ¡ãC (-4¡­149 ¡ãF)
  • Backplane power consumption: 50mA @ 24V DC
  • Conducted RF immunity: IEC 61000-4-6, 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
  • Data transmission type: DeviceNet
  • Depth: 20 mm
  • DeviceNet communication rate, max: 125 Kbps - 420 m (1378 ft.), 250 Kbps - 200 m (656 ft.), 500 Kbps - 75 m (246 ft.)
  • DeviceNet current: 24V DC @ 300mA Class 2
  • DeviceNet status indicators: Module status - red/green Network status - red/green
  • EFT/B immunity: IEC 61000-4-4: ¡À 2kV @ 5kHz on communication ports
  • Emissions: CISPR 11 (IEC 61000-6-4): Class A
  • Enclosure type rating: Meets IP20
  • ESD immunity: IEC 61000-4-2: 6 kV contact discharges, 8 kV air discharges
  • Height: 62 mm
  • IO link master: false
  • Isolation voltage: 50V (continuous), Type tested for 60 s @ 500V AC
  • Network protocol: I/O Slave messaging: poll command
  • Nonoperating temperature: -40...85 ¡ãC (-40...185 ¡ãF), IEC60068-2-1 (Test Ad, operating cold), IEC60068-2-2 (Test Bd, operating dry heat), IEC 60068-2-14 (Test Nb, operating thermal shock)
  • Number of nodes, max: 20 nodes for I/O ops
  • Operating temperature: -20...65 ¡ãC (-4...149 ¡ãF), IEC 60068-2-1 (Test Ad, operating cold), IEC 60068-2-2 (Test Bd, operating dry heat), IEC 60068-2-14 (Test Nb, operating thermal shock)
  • Power dissipation, max: 1.44 W
  • Preferred power supply: 1606-XLSDNET4
  • Radiated RF immunity: IEC 61000-4-3: 10V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10V/m with 200 Hz 50% pulse 100% AM @ 900 MHz, 10V/m with 200 Hz 50% pulse 100% AM @ 1890 MHz, 10V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz,
  • Redundancy: false
  • Relative humidity: IEC 60068-2-30 (Test Db, unpackaged dA heat), 5...95% noncondensing
  • Shock: Operating: 25 G, IEC 60068-2-27 (Test Ea, unpackaged shock)
  • SIL according to IEC 61508: None
  • Suitable for safety functions: false
  • Supporting protocol for ASI: false
  • Supporting protocol for AS-Interface Safety at Work: false
  • Supporting protocol for CAN: false
  • Supporting protocol for Data-Highway: false
  • Supporting protocol for DeviceNet: true
  • Supporting protocol for DeviceNet Safety: false
  • Supporting protocol for EtherNet/IP: false
  • Supporting protocol for Foundation Fieldbus: false
  • Supporting protocol for INTERBUS: false
  • Supporting protocol for INTERBUS-Safety: false
  • Supporting protocol for KNX: false
  • Supporting protocol for LON: false
  • Supporting protocol for Modbus: false
  • Supporting protocol for other bus systems: false
  • Supporting protocol for PROFIBUS: false
  • Supporting protocol for PROFINET CBA: false
  • Supporting protocol for PROFINET IO: false
  • Supporting protocol for PROFIsafe: false
  • Supporting protocol for SafetyBUS p: false
  • Supporting protocol for SERCOS: false
  • Supporting protocol for SUCONET: false
  • Supporting protocol for TCP/IP: false
  • Surge transient immunity: IEC 61000-4-5: ¡À 2 kV line-earth(CM) on communication ports
  • Surrounding air temperature, max: 65 ¡ãC
  • Vibration: IEC 60068-2-6 (Test Fc, operating), 2 G @ 10...500 Hz
  • Weight: 35 g
  • Width: 31.5 mm
  • Wire category: 1 - on power ports
  • Wire size: 0.25...2.5 mm2 (24...14 AWG) solid copper wire, 0.25...2.5 mm2 (24...14 AWG) stranded copper wire, Rated @ 75 ¡ãC (167 ¡ãF ), or greater, 1.2 mm (3/64 in.) insulation maximum
  • With optical interface: false
  • With potential separation: false
  • Product Series: A
