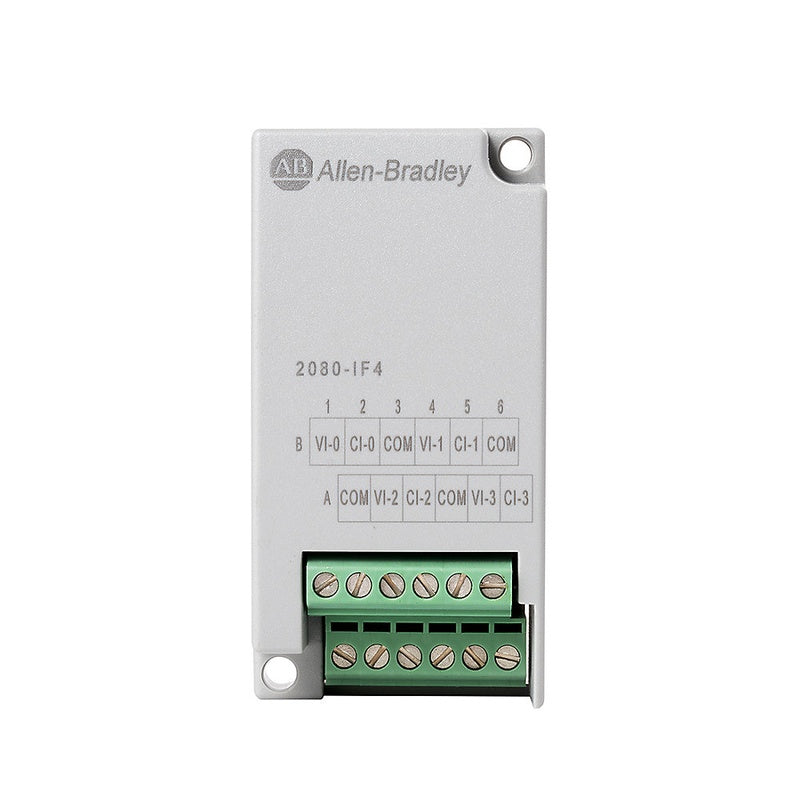

Allen-Bradley 2080-IF4 - Micro800 4 Point Analog Input Plug-In

Micro800 4 Point Analog Input Plug-In

2080 Micro800 System, 4-ch V/I Analog Input Unipolar 0-10V/0-20mA (non-isolated)

Specifications

• Consist Of: Screws
• I/O Status Indication: None
• Analogue inputs configurable: true
• Analogue outputs configurable: false
• Channel to channel isolation: Non-isolation
• Conducted RF immunity: IEC 61000-4-6, 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
• Current range: 0 mA
• Data range: 0 to 65535
• EFT/B immunity: IEC 61000-4-4: ¡À2kV @ 5kHz on shielded ports
• Emissions: CISPR 11 (IEC 61000-6-4): Class A
• ESD immunity: IEC 61000-4-2: 6 kV contact discharges, 8 kV air discharges
• Field input calibration: Not required
• Input, current: true
• Input group to bus isolation: No isolation
• Input impedance: >100 k? for voltage mode, 250 ? for current mode
• Input, resistance thermometer: false
• Input, resistor: false
• Input signal, configurable: false
• Input, thermocouple: false
• Input, voltage: true
• Module error: Voltage: ¡À1.5% @ over full temperature range, -20...65¡ãC (-4...149¡ãF), Current: ¡À2.0% @ over full temperature range, -20...65¡ãC (-4...149¡ãF)
• Mounting torque: 0.2 nm
• Non-linearity: ¡À0.1% @ in % full scale
• Nonoperating temperature: -40...85 ¡ãC (-40...185 ¡ãF), IEC 60068-2-1 (Test Ab, Unpackaged Nonoperating Cold), IEC 60068-2-2 (Test Bb, Unpackaged Nonoperating Dry Heat), IEC 60068-2-14 (Test Na, Unpackaged Nonoperating Thermal Shock)
• North American temperature code: T4
• Number of analogue inputs: 4
• Operating altitude: 2000 m
• Operating temperature: -20...65 ¡ãC (-4...149 ¡ãF): IEC 60068-2-1 (Test Ad, Operating Cold), IEC 60068-2-2 (Test Bd, operating dry heat), IEC 60068-2-14 (Test Nb, operating thermal shock)
• Output, current: false
• Output signal configurable: false
• Output, voltage: false
• Overall accuracy: Voltage terminal: ¡À1% full scale @ 25¡ãC, Current terminal: ¡À1% full scale @ 25¡ãC
• Power consumption: <60mA @ 3.3V
• Radiated RF immunity: IEC 61000-4-3: 10V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10V/m with 200 Hz 50% pulse 100% AM @ 900 MHz, 10V/m with 200 Hz 50% pulse 100% AM @ 1890 MHz, 10V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz,
• Recommended maximum shielded cable length: 10 m
• Relative humidity: IEC 60068-2-30 (Test Db, unpackaged dA heat), 5...95% noncondensing
• Repeatability: ¡À0.1%
• Resolution of the analogue inputs: 12 bit
• Shock: IEC 60068-2-27 (Test Ea, unpackaged shock): DIN rail mount: 25 g, nonoperating, Panel Mount: 35 g nonoperating
• SIL according to IEC 61508: None
• Suitable for safety functions: false
• Surge transient immunity: IEC 61000-4-5: ¡À2 kV line-earth(CM) on shielded ports
• Surrounding air temperature, max: 65 ¡ãC
• Terminal screw torque: 0.22...0.25 Nm (1.95...2.21 in-lb) (using a 2.5 mm (0.10 in.) flat-blade screwdriver)
• Type of electric connection: Screw connection
• Update time: 180 ms per enabled channel
• Vibration: IEC 60068-2-6 (Test Fc, operating), 2 G @ 10...500 Hz
• Voltage ranges: 0
• Wire size: Solid: 0.14 mm2 AWG)...1.5 mm2 AWG) @ Rated @ 90 ¡ãC (194 ¡ãF) insulation maximum, Stranded: 0.14 mm2 AWG)...1.0 mm2 AWG) @ Rated @ 90 ¡ãC (194 ¡ãF) insulation maximum
• Product Series: A
