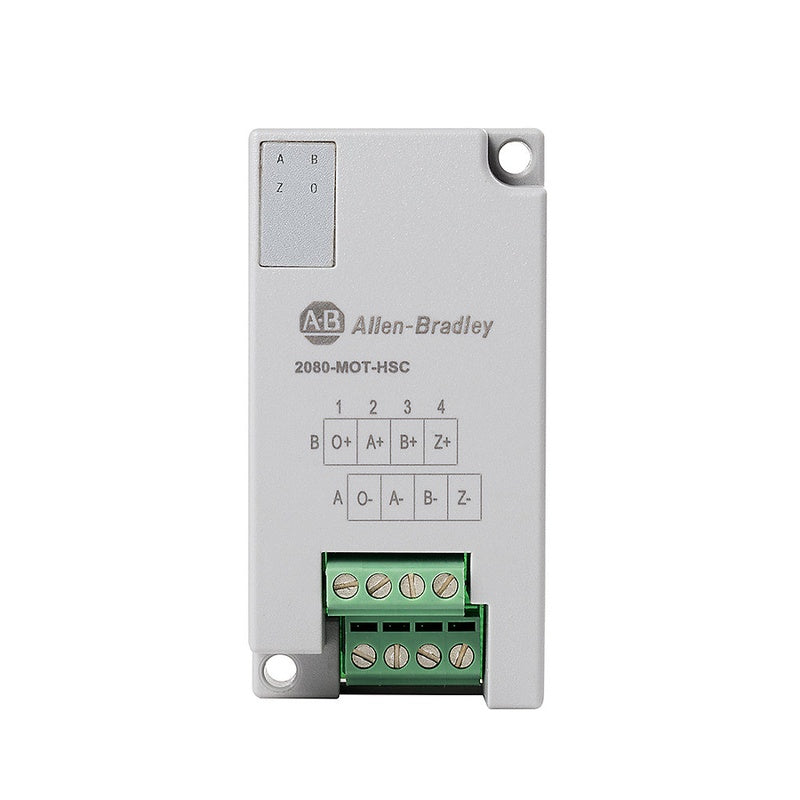

Micro800 250KHz HSC Plug-In
2080 Micro800 System, High Speed Counter, 4 inputs with Line Driver, 250KHz
Specifications
-
I/O Isolation: None
-
I/O Status Indication: LED
-
Bus current draw: 60mA @ 3.3V DC
-
Conducted RF immunity: IEC 61000-4-6, 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
-
Depth: 20 mm
-
Digital inputs configurable: true
-
Digital outputs configurable: true
-
EFT/B immunity: IEC 61000-4-4: ¡À2kV @ 5kHz on signal ports
-
Emissions: CISPR 11 (IEC 61000-6-4): Class A
-
Enclosure type rating: Meets IP20
-
ESD immunity: IEC 61000-4-2: 6 kV contact discharges, 8 kV air discharges
-
Height: 62 mm
-
Input current range: 2 mA
-
Input frequency, max: 250 kHz (50% duty)
-
Input impedance, nom: 3580 ?
-
Input voltage range: 0...30V DC
-
Isolation voltage: Input module: 50V (continuous), Basic Insulation Type, Inputs/Outputs to Backplane. Type tested for 60s @ 720V DC, Inputs/Outputs to Backplane
-
Maximum count: 48 bit
-
Nonoperating temperature: -40...85 ¡ãC (-40...185 ¡ãF), IEC 60068-2-1 (Test Ab, Unpackaged Nonoperating Cold), IEC 60068-2-2 (Test Bb, Unpackaged Nonoperating Dry Heat), IEC 60068-2-14 (Test Na, Unpackaged Nonoperating Thermal Shock)
-
North American temperature code: T4
-
Number of inputs: 1 Quadrature (ABZ) differential input
-
Number of outputs: 16 (1 physical output, 15 virtual)
-
Off-state leakage current: 0.5 mA
-
Off-state voltage, max: 1.0V DC
-
On-state current, min: 2 mA
-
On-state voltage drop, max: 0.5V DC
-
ON-state voltage range: 2.6...30V DC
-
Operating temperature: -20...65 ¡ãC (-4...149 ¡ãF): IEC 60068-2-1 (Test Ad, Operating Cold), IEC 60068-2-2 (Test Bd, operating dry heat), IEC 60068-2-14 (Test Nb, operating thermal shock)
-
Output on-state current: 0.5 A
-
Output voltage range: 5...30V DC
-
Phase separation, min: 500 ns
-
Pulse width, min: 2 ¦Ìs
-
Radiated RF immunity: IEC 61000-4-3: 10V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10V/m with 200 Hz 50% pulse 100% AM @ 900 MHz, 10V/m with 200 Hz 50% pulse 100% AM @ 1890 MHz, 10V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz,
-
Redundancy: false
-
Relative humidity: IEC 60068-2-30 (Test Db, unpackaged dA heat), 5...95% noncondensing
-
Reverse polarity protection: None
-
Shock: IEC 60068-2-27 (Test Ea, unpackaged shock): 25 g, nonoperating, 35 g (Panel Mount) nonoperating
-
Short-circuit protection, outputs available: false
-
Suitable for safety functions: true
-
Surge transient immunity: IEC 61000-4-5: ¡À2 kV line-earth(CM) on shielded ports
-
Surrounding air temperature, max: 65 ¡ãC
-
Terminal screw torque: 0.22...0.25 Nm (1.95...2.21 in-lb) (using a 2.5 mm (0.10 in.) flat-blade screwdriver)
-
Time delay at signal exchange: 2 ms
-
Type of digital output: Other
-
Type of electric connection: Screw connection
-
Type of output voltage: DC
-
Type of voltage (input voltage): DC
-
Vibration: IEC 60068-2-6 (Test Fc, operating), 2 G @ 10...500 Hz
-
Width: 31.5 mm
-
Wire size: Solid: 0.14 mm2 AWG)...1.5 mm2 AWG) @ Rated @ 90 ¡ãC (194 ¡ãF) insulation maximum, Stranded: 0.14 mm2 AWG)...1.0 mm2 AWG) @ Rated @ 90 ¡ãC (194 ¡ãF) insulation maximum
-
Wiring category: 2 - on signal ports
