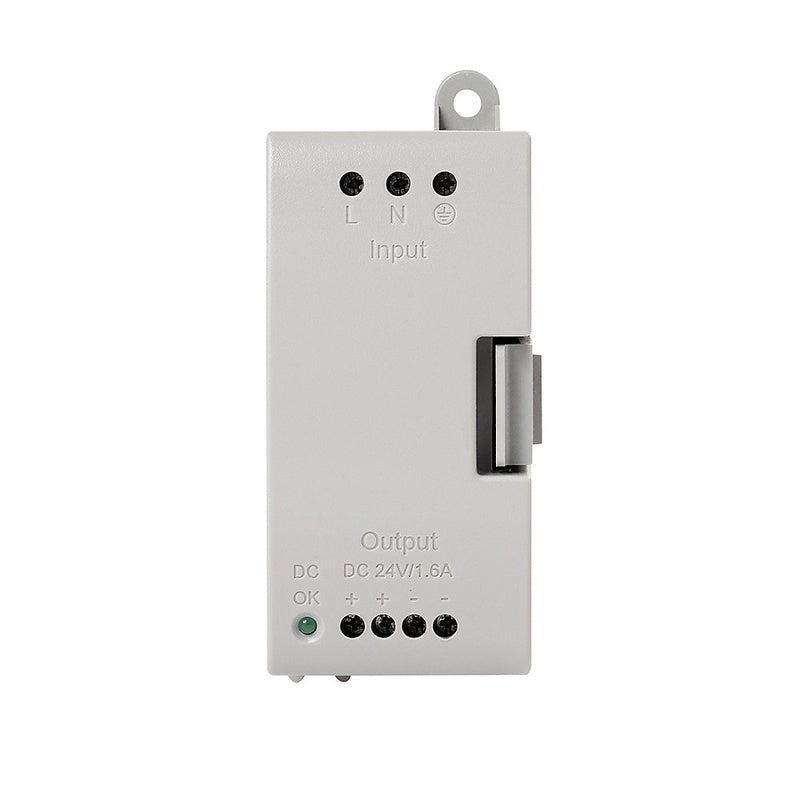

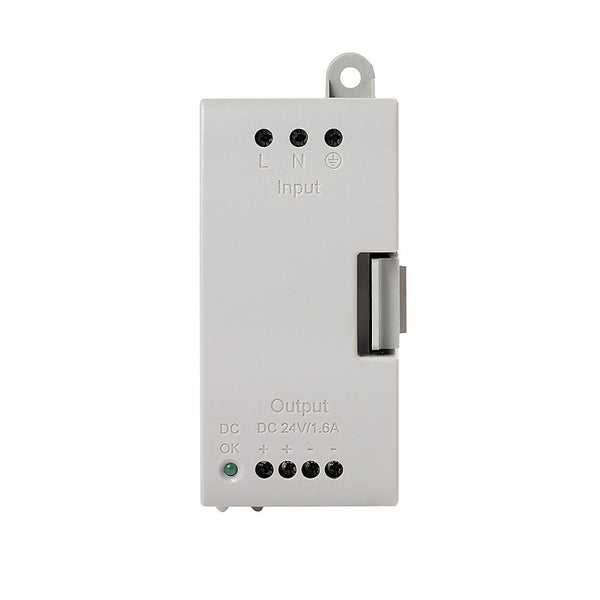

Allen-Bradley 2080-PS120-240VAC - Micro800 24V DC Power Supply

Micro800 24V DC Power Supply

2080 Micro800 System, 120/240VAC to 24VDC Power Supply for Controller and Exp I/O

Specifications

• Conducted RF immunity: IEC 61000-4-6, 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
• Depth: 80 mm
• EFT/B immunity: IEC 61000-4-4: ¡À2kV @ 5kHz on power ports
• Emissions: CISPR 11 Group 1, Class A
• Enclosure type rating: Meets IP20
• ESD immunity: IEC 61000-4-2: 6 kV contact discharges, 8 kV air discharges
• Height: 90 mm
• Inrush current, max: 24A @ 132V for 10 ms, 40A @ 263V for 10 ms
• Insulation stripping length: 7 mm
• Isolation voltage: 250V (continuous), primary to sary: reinforced Insulation Type, Type tested for 60s @ 2300V AC primary to sary and 1480V AC primary to earth ground
• Operating temperature: -20...65 ¡ãC (-4...149 ¡ãF), IEC 60068-2-1 (Test Ad, operating cold), IEC 60068-2-2 (Test Bd, operating dry heat), IEC 60068-2-14 (Test Nb, operating thermal shock)
• Output rating: 24V DC @ 1.6A, 38.4 W maximum
• Power consumption (Output power): 38.4 W @ 100V AC, 38.4 W @ 240V AC
• Power dissipation (Input power): 45.1 W @ 100V AC, 44.0 W @ 240V AC
• Radiated RF immunity: IEC 61000-4-3: 10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM at 900 MHz, 10 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz
• Redundancy: false
• Relative humidity: IEC 60068-2-30 (Test Db, unpackaged dA heat), 5...95% noncondensing
• Shock: Operating: 30 G, IEC 60068-2-27 (Test Ea, unpackaged shock)
• Storage temperature: -40...85 ¡ãC (-40...185 ¡ãF), IEC 60068-2-1 (Test Ab, Unpackaged Nonoperating Cold), IEC 60068-2-2 (Test Bb, Unpackaged Nonoperating Dry Heat), IEC 60068-2-14 (Test Na, Unpackaged Nonoperating Thermal Shock)
• Suitable for safety functions: false
• Supply frequency: 47...63 Hz
• Supply power: 24V DC @ 1.6A
• Supply voltage: 100...120V AC @ 1A, 200...240V AC @ 0.5A
• Surge transient immunity: IEC 61000-4-5: ¡À1 kV line-line(DM) and ¡À2 kV line-earth(CM) on power ports
• Surrounding air temperature, max: 65 ¡ãC
• Terminal screw torque: 0.5...0.6 Nm (4.4...5.3 in-lb) (using a Phillips-head or 2.5 mm (0.10in.) flat-blade screwdriver)
• Vibration: IEC 60068-2-6 (Test Fc, operating), 2 G @ 10...500 Hz
• Voltage variation: IEC 61000-4-11: 30% dips for 1 period at 0¡ã and 180¡ã on AC supply ports, 60% dips for 5 and 50 periods on AC supply ports, ¡À10% fluctuations for 15 min on AC supply ports, >95% interruptions for 250 periods on AC supply ports
• Weight: Approx 0.34 kg (0.75 lb)
• Width: 45 mm
• Wire size: 0.32...2.1 mm2 (22...14 AWG) solid copper wire or, 0.32...1.3 mm2 (22...16 AWG) stranded copper wire, Rated at 90 ¡ãC (194 ¡ãF) insulation max
• Wiring category: 2 - on power ports
