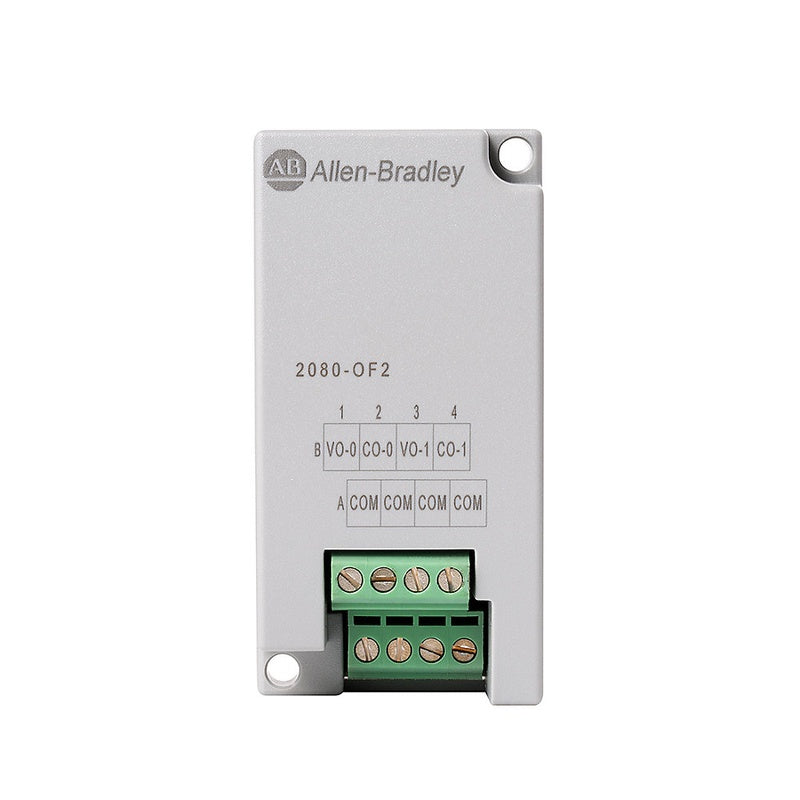

Allen-Bradley 2080-OF2 - Micro800 2 Point Analog Output Plug-In - Industrial Automation Part
Allen-Bradley 2080-OF2 - Micro800 2 Point Analog Output Plug-In - Industrial Automation Part

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Allen-Bradley

Allen-Bradley 2080-OF2 - Micro800 2 Point Analog Output Plug-In

SKU: 2080-OF2
(3)
$120.08
In stock
Usually ships within 24 hours
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

Micro800 2 Point Analog Output Plug-In

2080 Micro800 System, 2-ch V/I Analog Output Unipolar 0-10V/0-20mA (non-isolated)

Specifications

  • I/O Isolation: None
  • I/O Status Indication: None
  • Temperature Rating: -20¡­65 ¡ãC (-4¡­149 ¡ãF)
  • Analogue inputs configurable: false
  • Analogue outputs configurable: true
  • Capacitive load, max: 0.1 ¦ÌF @ voltage outputs
  • Channel to channel isolation: Non-isolation
  • Conducted RF immunity: IEC 61000-4-6, 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
  • Current load on voltage output, max: 10 mA
  • Current range: 0 mA
  • D/A Conversion rate (all channels), max: 2.5 ms
  • EFT/B immunity: IEC 61000-4-4: ¡À2kV @ 5kHz on shielded ports
  • Emissions: CISPR 11 (IEC 61000-6-4): Class A
  • ESD immunity: IEC 61000-4-2: 6 kV contact discharges, 8 kV air discharges
  • Inductive load, max: 0.01 mH @ current outputs
  • Input, current: false
  • Input group to bus isolation: Non-isolation
  • Input, resistance thermometer: false
  • Input, resistor: false
  • Input signal, configurable: false
  • Input, thermocouple: false
  • Input, voltage: false
  • Load range on voltage output: > 1k ? @ 10V DC
  • Mounting torque: 0.2 nm
  • Non-linearity: ¡À0.1% @ in % full scale
  • Nonoperating temperature: -40...85 ¡ãC (-40...185 ¡ãF), IEC 60068-2-1 (Test Ab, Unpackaged Nonoperating Cold), IEC 60068-2-2 (Test Bb, Unpackaged Nonoperating Dry Heat), IEC 60068-2-14 (Test Na, Unpackaged Nonoperating Thermal Shock)
  • North American temperature code: T4
  • Number of analogue outputs: 2
  • Open and short-circuit protection: true
  • Operating altitude: 2000 m
  • Operating temperature: -20...65 ¡ãC (-4...149 ¡ãF): IEC 60068-2-1 (Test Ad, Operating Cold), IEC 60068-2-2 (Test Bd, operating dry heat), IEC 60068-2-14 (Test Nb, operating thermal shock)
  • Output count range: 0 to 65535
  • Output, current: true
  • Output error: Voltage: ¡À1.5% @ over full temperature range, -20...65¡ãC (-4...149¡ãF), Current: ¡À2.0% @ over full temperature range, -20...65¡ãC (-4...149¡ãF)
  • Output overvoltage protection: true
  • Output signal configurable: true
  • Output, voltage: true
  • Overall accuracy: Voltage terminal: ¡À1% full scale @ 25¡ãC, Current terminal: ¡À1% full scale @ 25¡ãC
  • Power consumption: <60mA @ 24V
  • Radiated RF immunity: IEC 61000-4-3: 10V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10V/m with 200 Hz 50% pulse 100% AM @ 900 MHz, 10V/m with 200 Hz 50% pulse 100% AM @ 1890 MHz, 10V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz,
  • Recommended maximum shielded cable length: 10 m
  • Relative humidity: IEC 60068-2-30 (Test Db, unpackaged dA heat), 5...95% noncondensing
  • Repeatability: ¡À0.1% @ in % full scale
  • Resistive load on current output: 0...500 ? (includes wire resistance)
  • Resolution of the analogue outputs: 12 bit
  • Shock: IEC 60068-2-27 (Test Ea, unpackaged shock): DIN rail mount: 25 g, nonoperating, Panel Mount: 35 g nonoperating
  • SIL according to IEC 61508: None
  • Step response to 63%: 5 ms
  • Suitable for safety functions: false
  • Surge transient immunity: IEC 61000-4-5: ¡À2 kV line-earth(CM) on shielded ports
  • Surrounding air temperature, max: 65 ¡ãC
  • Terminal screw torque: 0.22...0.25 Nm (1.95...2.21 in-lb) (using a 2.5 mm (0.10 in.) flat-blade screwdriver)
  • Type of electric connection: Screw connection
  • Vibration: IEC 60068-2-6 (Test Fc, operating), 2 G @ 10...500 Hz
  • Voltage ranges: 0
  • Wire size: Solid: 0.14 mm2 AWG)...1.5 mm2 AWG) @ Rated @ 90 ¡ãC (194 ¡ãF) insulation maximum, Stranded: 0.14 mm2 AWG)...1.0 mm2 AWG) @ Rated @ 90 ¡ãC (194 ¡ãF) insulation maximum
  • Product Series: A
