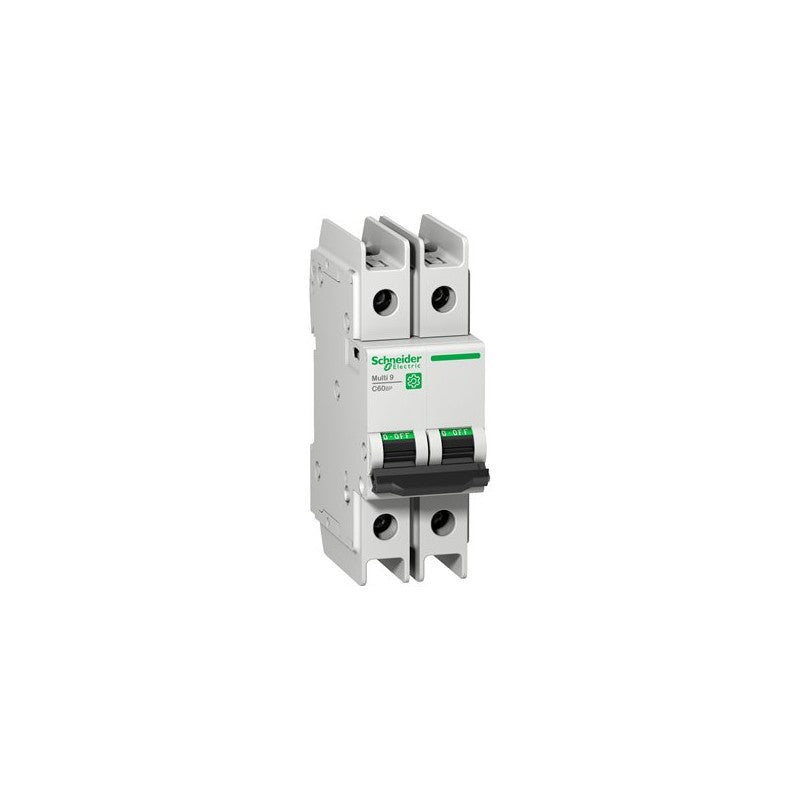

Schneider Electric M9F42220 | Circuit Breaker

2-Pole Miniature Circuit Breaker for Commercial Applications

The Schneider Electric Multi 9 C60BP M9F42220 is a 2-pole miniature circuit breaker rated at 20A with C-curve trip characteristics and 10kA breaking capacity at 480Y/277V. Engineered for global compliance with IEC/EN 60947-2, UL 489, CSA C22.2 No 5, and GB/T 14048.2 standards.

Key Features

• 2-pole, 20A rated, C-curve trip (5-10x In)
• 10kA breaking capacity for robust short-circuit protection
• Green strip visual contact indication for maintenance safety
• Positive contact indication suitable for isolation per IEC/EN 60947-2
• Unified terminal design with wiring indication
• Multi-standard: IEC/EN 60947-2, UL 489, CSA, GB/T
• 35mm DIN-rail mount

Applications

General-purpose power circuits, lighting distribution boards, socket outlet circuits, HVAC equipment, and small motor loads with moderate inrush currents.
