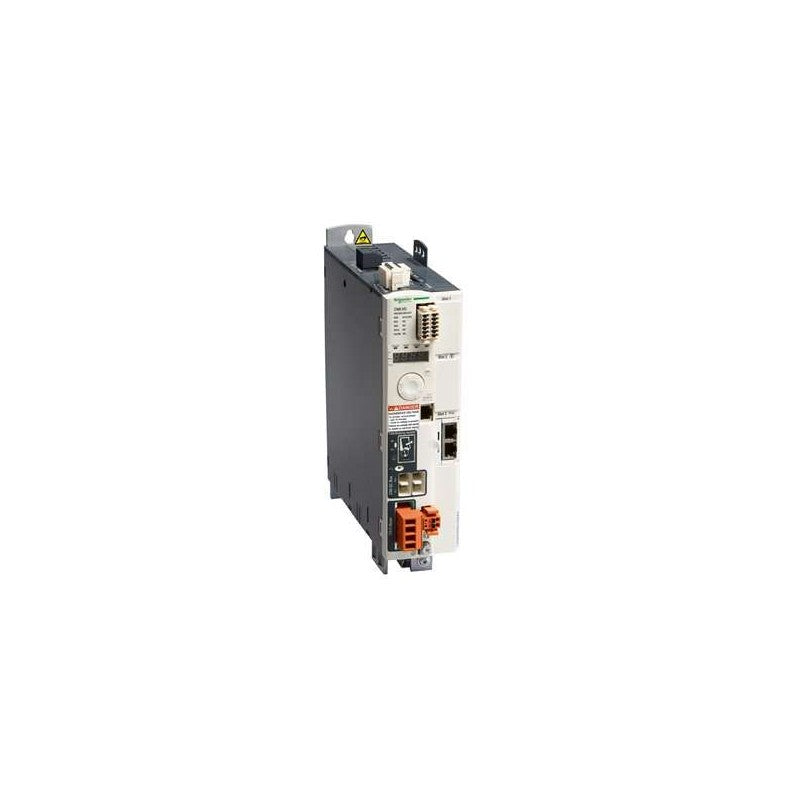

Schneider Electric LXM32SD72N4 | Variable Frequency Drive
Schneider Electric LXM32SD72N4 | Variable Frequency Drive

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Schneider Electric

Schneider Electric LXM32SD72N4 | Variable Frequency Drive

SKU: LXM32SD72N4
(3)
$652.03
-13% $749.83 $652.03
In stock
Usually ships within 24 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

LXM32SD72N4 Schneider Electric - Schneider Electric Lexium 32 Motion Servo Drive - 24A, 7kW, SERCOS. The Lexium 32 motion servo drive provides high-performance single-axis servo control for machines from 0.15 to 7 kW. This model features an integrated EMC filter, SERCOS III communication, compact book-format design, and supports both 200-240V and 380-480V three-phase supplies.

  • Brand: Schneider Electric
  • Category: Servo Drives
  • Product Type: Motion Servo Drive
  • Series: Lexium 32 (LXM32S)
  • Format: Book format
  • Supply Voltage: 200-240 V AC / 380-480 V AC (3-phase)
  • Supply Voltage Limits: 170-264 V / 323-528 V
  • Continuous Output Current: 24 A at 8 kHz
  • Peak Output Current: 72 A for 5 s
  • Nominal Power: 5 kW at 208V, 7 kW at 400-480V
  • Continuous Power: 6500 W at 208V, 13000 W at 400-480V
  • Switching Frequency: 8 kHz
  • EMC Filter: Integrated
  • Communication: Modbus (RJ45), SERCOS III (RJ45)
  • Discrete Inputs: 2 (capture)
  • Discrete Outputs: 3
  • Analog Inputs: Yes (pulse train support)
  • Electrical Isolation: Between power and control
  • Maximum Leakage Current: 30 mA
  • Overvoltage Category: III
  • Protection Rating: IP20
  • Dimensions (W x D x H): 108 x 237 x 270 mm
  • Product Weight: 4.8 kg
  • Operating Temperature: 0 to 50 C
  • Compatible Motors: BMH/BSH series servo motors
  • Standards: EN/IEC 61800-3
  • Certifications: CE, CSA

Motion control for packaging machines, material handling, robotics, printing, textiles, and other industrial machinery requiring precise servo positioning and speed control.
