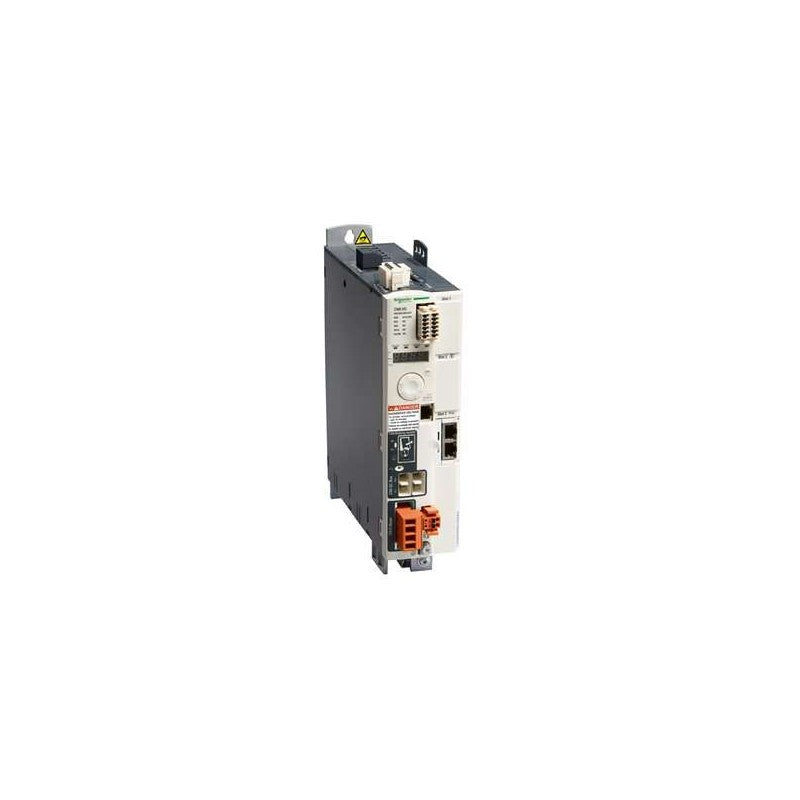

Schneider Electric LXM32SD30N4 | Industrial Automation Component

LXM32SD30N4 Schneider Electric - Lexium 32S Servo Drive. LXM32SD30N4 is a Lexium 32S servo drive with SERCOS III integrated communication, designed for three-phase 208/480V operation. Rated for 2kW at 208V and 3kW at 400V/480V with 10A continuous and 30A peak output current. Features integrated EMC filter, Safe Torque Off (STO) SIL3 safety function, integrated fan cooling, and compatibility with BMH 100mm servo motors.

• Brand: Schneider Electric
• Category: Servo Drive
• Series: Lexium 32
• Product Type: Servo drive (SERCOS III)
• Input Voltage: Three-phase 200-240V / 380-480V AC
• Supply Voltage Limits: 170-264V / 323-528V
• Continuous Output Current: 10 A at 8 kHz
• Peak Output Current: 30 A for 5 s
• Continuous Power: 2800 W at 208V, 5600 W at 400V/480V
• Nominal Power: 2 kW at 208V, 3 kW at 400V/480V
• Switching Frequency: 8 kHz
• Communication: SERCOS III integrated
• Safety Function: Safe Torque Off (STO), SIL3
• Inputs: 2 capture inputs
• Outputs: 3 logic outputs (24V DC)
• EMC Filter: Integrated
• Cooling: Integrated fan
• Compatible Motors: BMH 100mm (3 motor stacks)
• Dimensions (W x H x D): 68 x 270 x 237 mm
• Weight: 2.7 kg
• Protection Rating: IP20
• Operating Temperature: 0 to 50 degrees C
• Storage Temperature: -25 to 70 degrees C
• Operating Altitude: Up to 1000 m without derating
• Certifications: CE, CSA
• Standards: EN/IEC 61800-3
• Warranty: 18 months

Suitable for high-power motion control applications requiring three-phase supply and SERCOS III deterministic communication. Ideal for printing machines, metalworking equipment, robotics, and high-speed packaging lines where precise synchronization and high continuous power output are critical.
