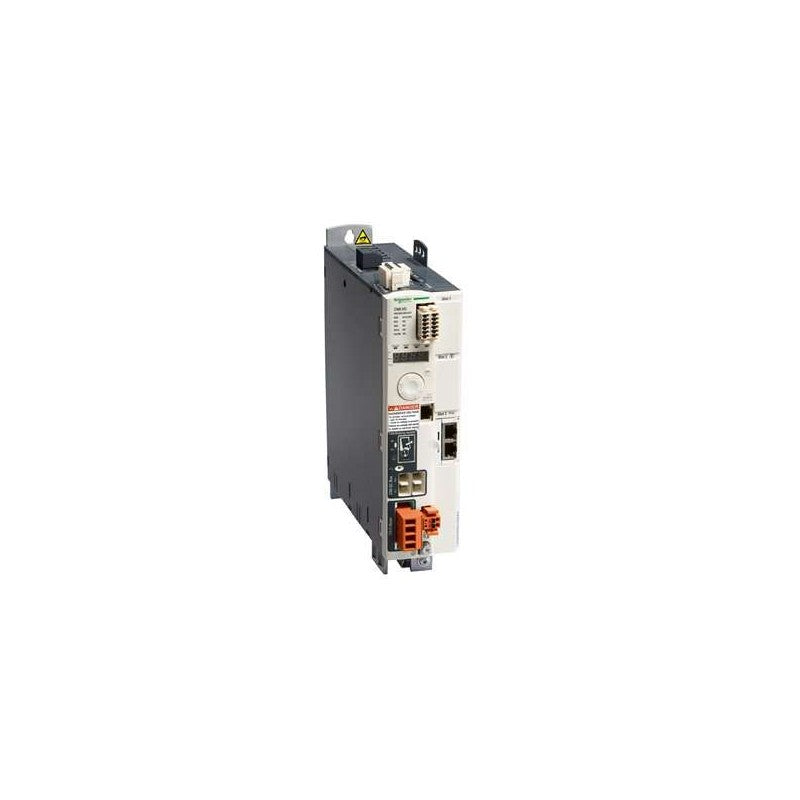

LXM32SD30M2 Schneider Electric - Lexium 32S Servo Drive. LXM32SD30M2 is a Lexium 32S servo drive with SERCOS III integrated communication, designed for single-phase 100-120V/200-240V operation. Features 10A continuous and 30A peak output current at 230V, integrated EMC filter, Safe Torque Off (STO) SIL3 safety function, and integrated fan cooling. Compatible with BMH and BSH series servo motors.

  • Brand: Schneider Electric
  • Category: Servo Drive
  • Series: Lexium 32
  • Product Type: Servo drive (SERCOS III)
  • Input Voltage: Single-phase 100-120V / 200-240V AC
  • Continuous Output Current: 10 A at 8 kHz
  • Peak Output Current: 15 A at 115V (5s), 30 A at 230V (5s)
  • Max Continuous Power: 800 W at 115V, 2200 W at 230V
  • Nominal Power: 0.8 kW at 115V, 1.6 kW at 230V
  • Switching Frequency: 8 kHz
  • Communication: SERCOS III integrated, Modbus via RJ45
  • Safety Function: Safe Torque Off (STO), SIL3
  • Inputs: 2 capture inputs
  • Outputs: 3 logic outputs (24V DC)
  • EMC Filter: Integrated
  • Cooling: Integrated fan
  • Compatible Motors: BMH and BSH series
  • Dimensions (W x H x D): 68 x 270 x 237 mm
  • Weight: 2 kg
  • Protection Rating: IP20
  • Operating Temperature: 0 to 50 degrees C
  • Certifications: CE
  • Standards: EN/IEC 61800-3

Suitable for high-performance motion control applications requiring SERCOS III real-time communication and single-phase power input. Ideal for packaging machines, material handling, robotics, and CNC equipment where deterministic communication and high peak current capability are essential.
