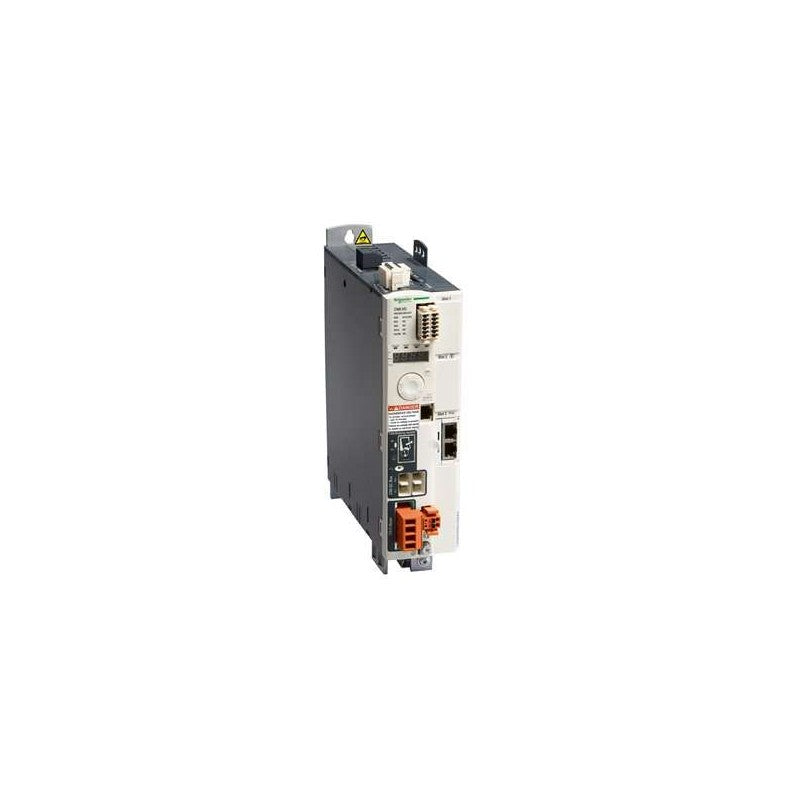

Schneider Electric LXM32SD18N4 | Industrial Automation Component

LXM32SD18N4 Schneider Electric - Lexium 32S Servo Drive. LXM32SD18N4 is a Lexium 32S servo drive with SERCOS III integrated communication, designed for three-phase 208/480V operation. Rated for 1.2kW at 230V and 1.8kW at 400V with 6A continuous and 18A peak output current. Features integrated EMC filter, Safe Torque Off (STO) SIL3 safety function, integrated fan cooling, and compatibility with BMH 100mm servo motors.

• Brand: Schneider Electric
• Category: Servo Drive
• Series: Lexium 32
• Product Type: Servo drive (SERCOS III)
• Input Voltage: Three-phase 200-240V / 380-480V AC
• Supply Voltage Limits: 170-264V / 323-528V
• Continuous Output Current: 6 A at 8 kHz
• Peak Output Current: 18 A for 5 s
• Max Continuous Power: 1500 W at 230V
• Nominal Power: 1.2 kW at 230V, 1.8 kW at 400V
• Switching Frequency: 8 kHz
• Communication: SERCOS III integrated, Modbus via RJ45
• Safety Function: Safe Torque Off (STO), SIL3
• Inputs: 2 capture inputs
• Outputs: 3 logic outputs (24V DC)
• EMC Filter: Integrated
• Cooling: Integrated fan
• Compatible Motors: BMH 100mm (1 motor stack)
• Dimensions (W x H x D): 68 x 270 x 237 mm
• Weight: 2.1 kg
• Protection Rating: IP20
• Operating Temperature: 0 to 50 degrees C
• Storage Temperature: -25 to 70 degrees C
• Operating Altitude: Up to 1000 m without derating
• Certifications: CE, CSA
• Standards: EN/IEC 61800-3
• Warranty: 18 months

Designed for industrial motion control applications requiring three-phase power and SERCOS III deterministic communication. Ideal for printing machines, metalworking equipment, packaging lines, and robotics where precise positioning and synchronization are critical.
