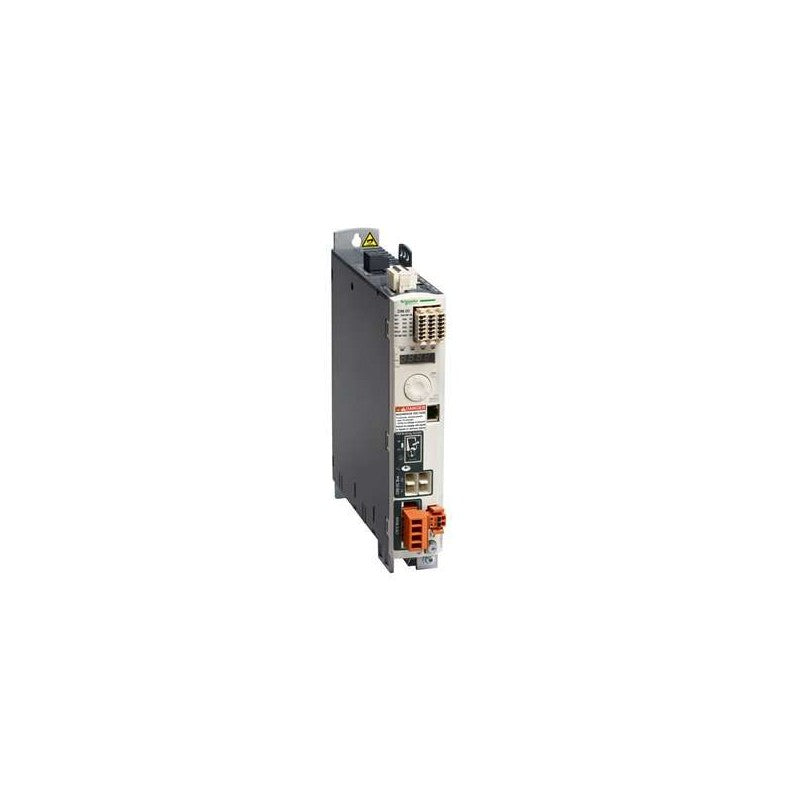

Schneider Electric LXM32CD30M2 | Communication and I/O Module
Schneider Electric LXM32CD30M2 | Communication and I/O Module

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Schneider Electric

Schneider Electric LXM32CD30M2 | Communication & I/O Module

SKU: LXM32CD30M2
(2)
$2,688.00
-13% $3,091.20 $2,688.00
In stock
Usually ships within 24 hours
Condition
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

LXM32CD30M2 Schneider Electric - Lexium 32C Servo Drive. LXM32CD30M2 is a Lexium 32C servo drive with Modbus communication, designed for single-phase 100-120V/200-240V operation. Features 10A continuous and 30A peak output current at 230V, integrated EMC filter, Safe Torque Off (STO) SIL3 safety function, pulse train output, analog inputs, and integrated fan cooling. Compatible with BMH and BSH series servo motors.

  • Brand: Schneider Electric
  • Category: Servo Drive
  • Series: Lexium 32
  • Product Type: Servo drive (Modbus/serial)
  • Input Voltage: Single-phase 100-120V / 200-240V AC
  • Supply Voltage Limits: 85-132V / 170-264V
  • Continuous Output Current: 10 A at 8 kHz
  • Peak Output Current: 15 A at 115V (5s), 30 A at 230V (5s)
  • Max Continuous Power: 800 W at 115V, 2200 W at 230V
  • Nominal Power: 0.8 kW at 115V, 1.6 kW at 230V
  • Switching Frequency: 8 kHz
  • Communication: Modbus via RJ45, RS485
  • Safety Function: Safe Torque Off (STO), SIL3, PL=e
  • Inputs: 2 safety inputs, 6 logic inputs, 2 analog inputs (+/-10V, 14-bit)
  • Outputs: 5 logic outputs (24V DC)
  • Control Signal: Pulse train output (PTO) RS422, servo motor encoder feedback
  • EMC Filter: Integrated
  • Cooling: Integrated fan
  • Compatible Motors: BMH 70mm/100mm/140mm, BSH 70mm/100mm
  • Dimensions (W x H x D): 68 x 270 x 237 mm
  • Weight: 2 kg
  • Protection Rating: IP20
  • Operating Temperature: 0 to 50 degrees C
  • Certifications: CE, CSA, UL, TUV
  • Standards: EN/IEC 61800-3, EN/IEC 61800-5-1
  • Environmental Design: Green Premium

Designed for cost-effective motion control applications using Modbus communication and pulse train interface. Ideal for material handling, food and beverage packaging, textile machinery, and general automation where reliable servo performance with analog and pulse control is required.
