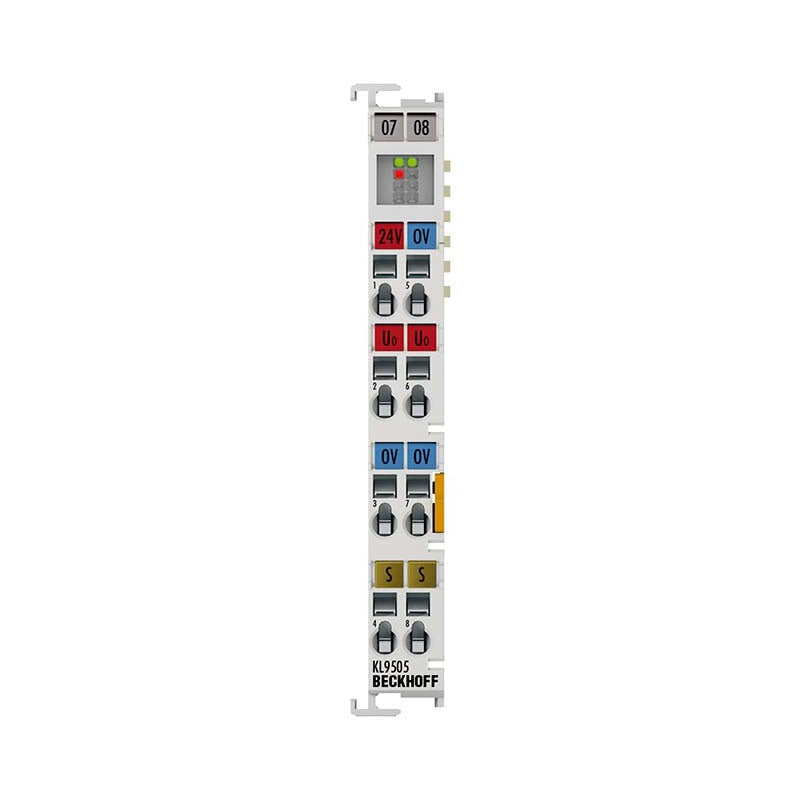

Beckhoff KL9505 | Beckhoff Bus Terminals

KL9505 | Power supply terminal 5 V DC

The KL9505 power supply terminal generates an output voltage of 5 V DC from the (24 V DC) input voltage, which can be accessed at the terminal. The following...

Technical Specifications

KL9505 Input voltage 24 V DC (-15%/+20%) Output voltage 5 V DC ±1% Output current 0.5 A Short-circuit proof yes Residual ripple Special features stabilized output voltage, overcurrent LED Weight approx. 65 g Operating temperature 0…55°C Storage temperature -25…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/variable Plug-in wiring level for all KSxxxx Bus Terminals Approvals/markings CE, CCC, UL, ATEX, IECEx Ex marking ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc Technical data Housing data To top Housing data KL-12-8pin KS-12-8pin Design form compact terminal housing with signal LEDs terminal housing with pluggable wiring level Material polycarbonate Installation on 35 mm DIN rail, conforming to EN 60715 with lock Side b

Availability: regular delivery
