Beckhoff KL9400 | Beckhoff Bus Terminals

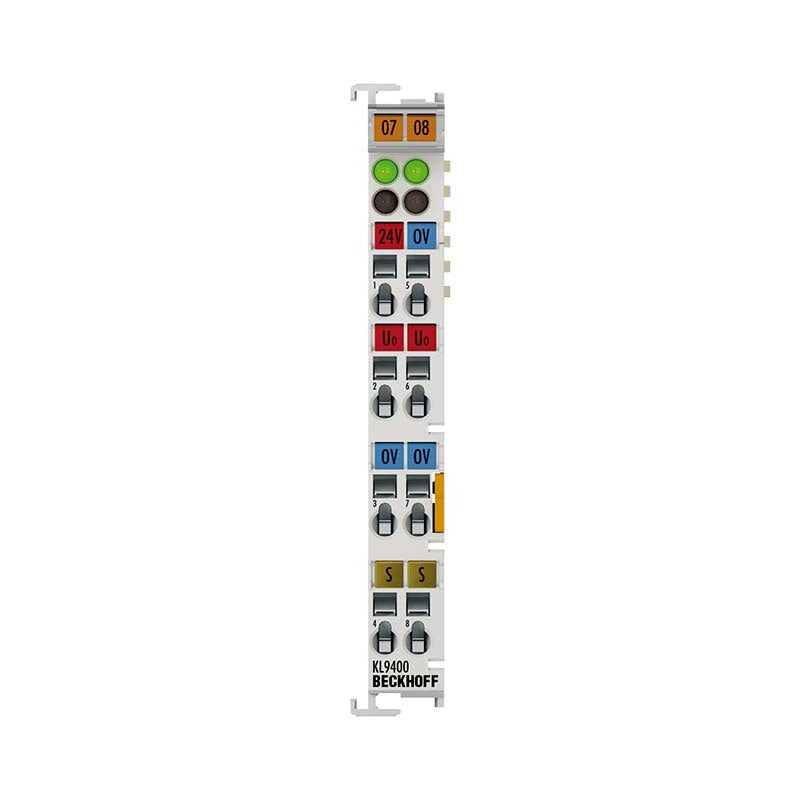

KL9400 | Power supply unit terminal for the K-bus

The KL9400 power supply unit terminal is utilized to refresh the K-bus. Data is exchanged between the Bus Coupler and Bus Terminal over the K-bus. Each Bus...

Technical Specifications

KL9400 Input voltage 24 V DC (-15%/+20%) Output voltage 5 V DC Output current 2 A for K-bus supply Power contacts max. 24 V DC/max. 10 A Short-circuit proof yes Weight approx. 65 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/variable Plug-in wiring level for all KSxxxx Bus Terminals Approvals/markings CE, CCC, UL, ATEX, IECEx, DNV Ex marking ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc Technical data Housing data To top Housing data KL-12-8pin KS-12-8pin Design form compact terminal housing with signal LEDs terminal housing with pluggable wiring level Material polycarbonate Installation on 35 mm DIN rail, conforming to EN 60715 with lock Side by side mounting by

Availability: regular delivery
