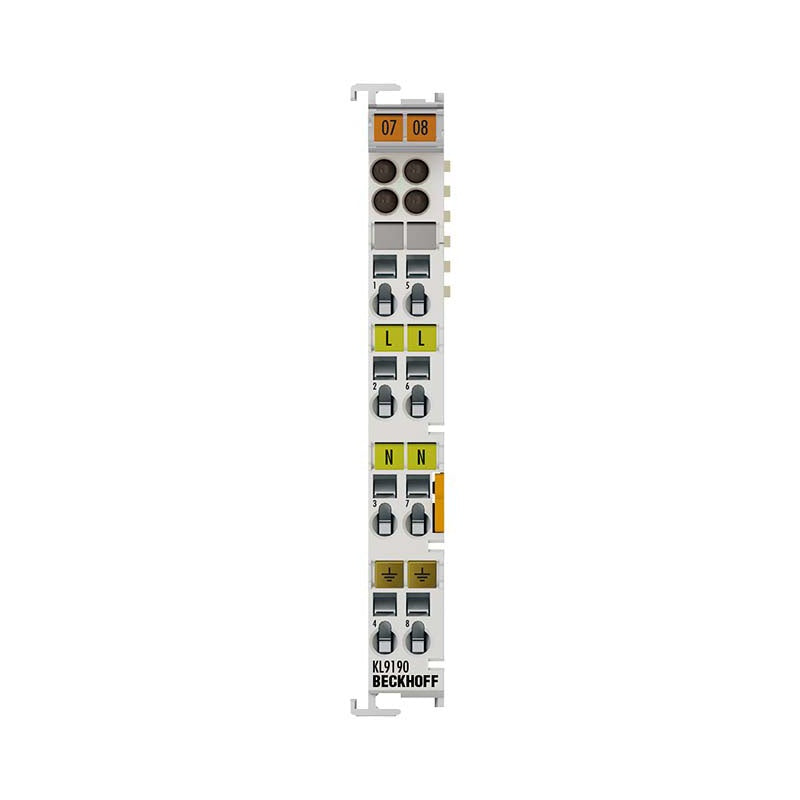

Beckhoff KL9190 | Beckhoff Bus Terminals

KL9190 | Potential supply terminal, any voltage up to 230 V AC

The KL9190 power feed terminal makes it possible to set up various potential groups with any desired voltages up to

Technical Specifications

KL9190 Current load ≤ 10 A Integrated fine-wire fuse – Power LED – Defect LED – Diagnostics – Current consumption K-bus – Nominal voltage arbitrary Electrical isolation yes Reported to K-bus – Shield connection – Renewed infeed yes Connection facility to additional power contact 1 K-bus, looped through yes Bit width in the process image 0 Electrical connection to DIN rail – Housing width 12 mm Weight approx. 50 g Side by side mounting on Bus Terminals with power contact yes Side by side mounting on Bus Terminals without power contact yes Operating temperature 0…55°C Storage temperature -25…+85°C Plug-in wiring level for all KSxxxx Bus Terminals Approvals/markings CE, CCC, UL, ATEX, IECEx, DNV Ex marking ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc Technical data Housing data To top Housing data KL-12-8pin KS-12-8pin Design form compact terminal housing with signal LEDs terminal ho

Availability: regular delivery
