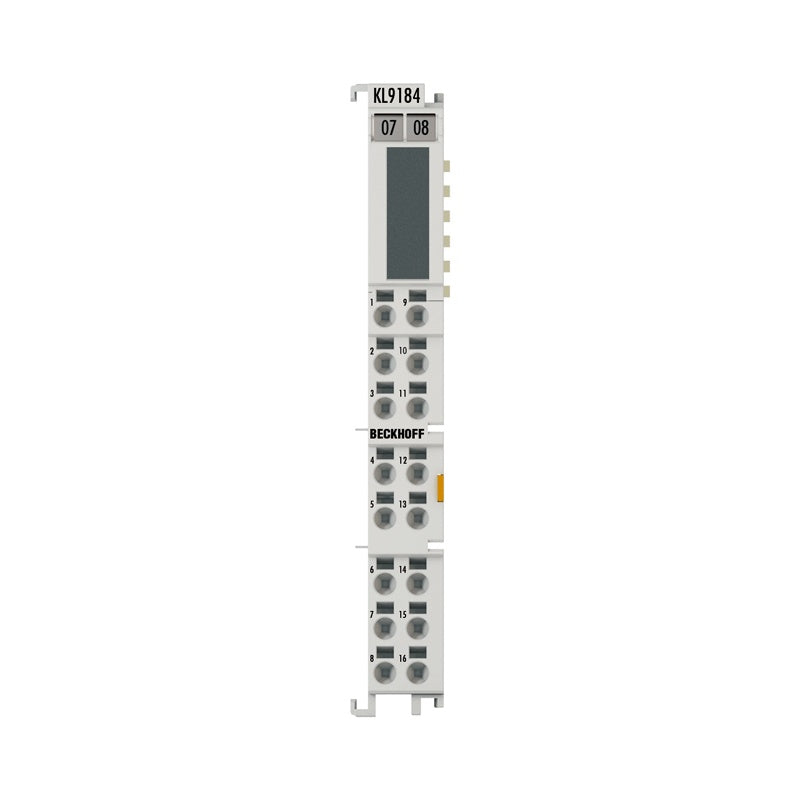

KL9184 | Potential distribution terminal, 8 x 24 V DC, 8 x 0 V DC

The KL9184 potential distribution terminal provides the potential of the 24 V DC contact at eight terminal points and the potential of the 0 V contact ...

Technical Specifications

KL9184 Current load ≤ 10 A Integrated fine-wire fuse – Power LED – Defect LED – Diagnostics – Current consumption K-bus – Nominal voltage ≤ 60 V DC Electrical isolation yes Reported to K-bus – Shield connection – Renewed infeed – Number of outputs e.g.: 8 x 24 V contact, 8 x 0 V contact Connection facility to additional power contact 8 K-bus, looped through yes Bit width in the process image 0 Electrical connection to DIN rail – Housing width 12 mm Special features 8 x 24 V and 8 x 0 V connection Weight approx. 60 g Side by side mounting on Bus Terminals with power contact yes, left without PE Side by side mounting on Bus Terminals without power contact no Operating temperature -25…+60°C Storage temperature -40…+85°C Approvals/markings CE, CCC, UL, ATEX, IECEx, DNV Ex marking ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc Technical data Housing data To top Housing data HD housing De

Availability: regular delivery
