Beckhoff KL9181 | Beckhoff Bus Terminals

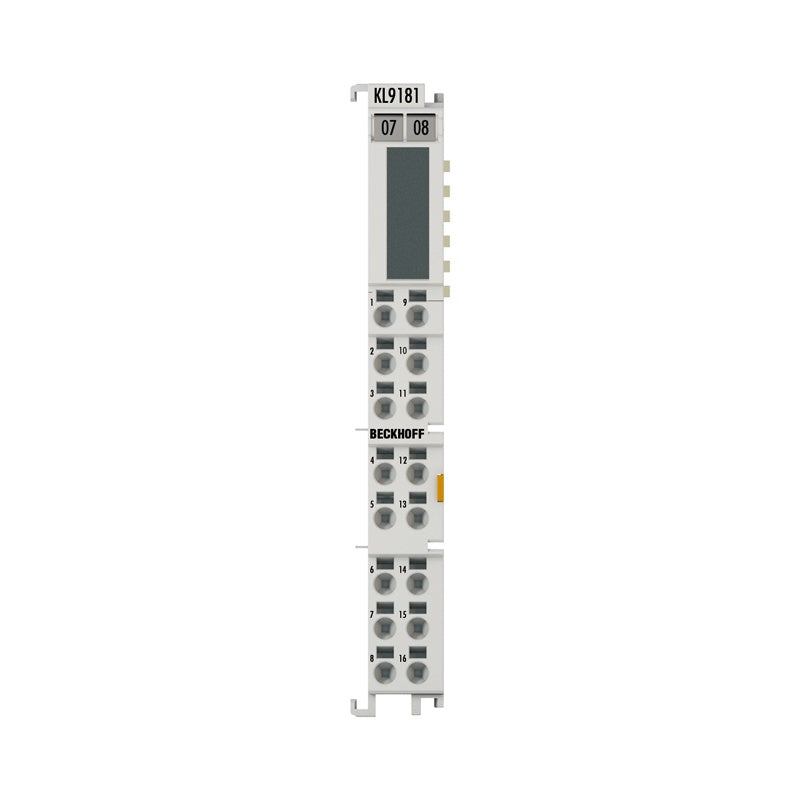

KL9181 | Potential distribution terminal, 8 x 2 potentials

The potential distribution terminal KL9181 provides 16 terminal points for potential distribution and enables the voltage to be picked up without further...

Technical Specifications

KL9181 Number of separate potentials 2 Terminal points per potential 8 Current load max. 10 A (per terminal point) Power LED – Defect LED – Current consumption K-bus – Nominal voltage ≤ 60 V AC/DC Electrical isolation 500 V (K-bus/field potential) Shield connection – K-bus, looped through yes Power contacts looped through yes (2 power contacts) Bit width in the process image – Electrical connection to DIN rail – Configuration no address or configuration setting Special features 2 x 8-way bridges Weight approx. 60 g Operating temperature 0…55°C Storage temperature -25…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/variable Approvals/markings CE, UL Technical data Housing data To top Housing data HD housing Design form HD (High D

Availability: regular delivery
