Beckhoff KL9080 | Beckhoff Bus Terminals

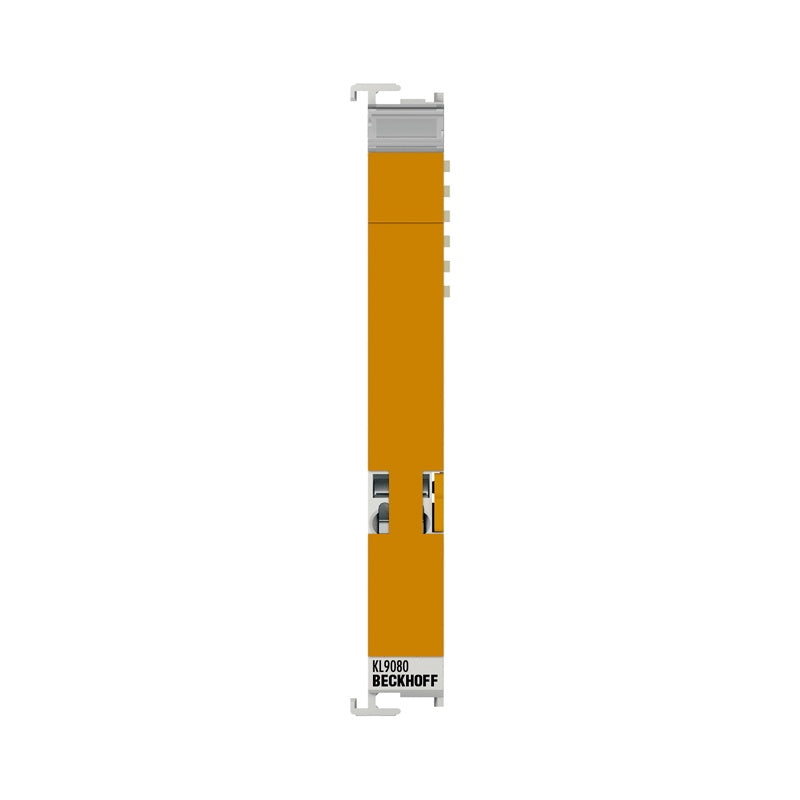

KL9080 | Separation terminal

The KL9080 is utilized to identify potential groups (e.g. 230 V AC/24 V DC). It is inserted between two potential groups, and indicates the separation through...

Technical Specifications

KL9080 Current load – Integrated fine-wire fuse – Power LED – Defect LED – Diagnostics – Current consumption K-bus – Nominal voltage separation terminal Electrical isolation – Reported to K-bus – Shield connection – Renewed infeed – Connection facility to additional power contact – K-bus, looped through –/yes Bit width in the process image 0 Electrical connection to DIN rail – Housing width 12 mm Special features placeholder terminal with K-bus transmission Weight approx. 50 g Side by side mounting on Bus Terminals with power contact yes Side by side mounting on Bus Terminals without power contact yes Operating temperature -25…+60°C Storage temperature -40…+85°C Approvals/markings CE, CCC, UL, ATEX, IECEx, DNV Ex marking ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc Technical data Housing data To top Housing data KL-12-8pin KS-12-8pin Design form compact terminal housing with signa

Availability: regular delivery
