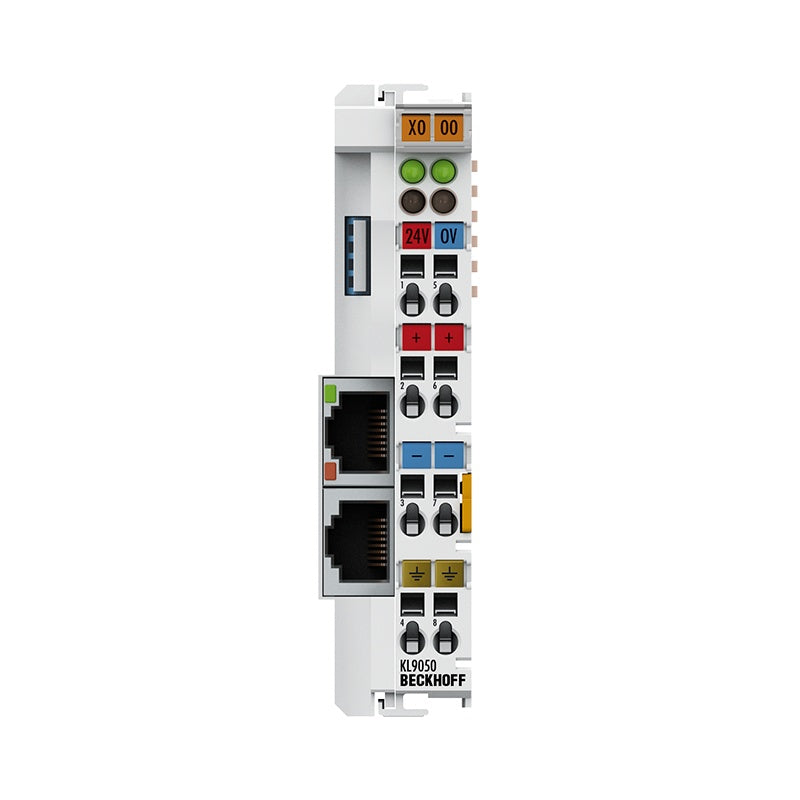

KL9050 Beckhoff

KL9050 | Terminal bus extension, coupler terminal

The KL9050 coupler terminal replaces the Bus Coupler on a Bus Terminal block. The KL9050 is the counterpart to the KL9020. The S(F)TP cable (shielded twisted...

Technical Specifications

KL9050 Number of Bus Terminals 64 Current load ≤ 10 A Power LED green Defect LED – Type/number of peripheral signals Bus Coupler dependency Distance between stations max. 5 m between KL9050 and KL9050 Bus interface 2 x RJ45 socket (input + output) Power supply 24 V DC (-15%/+20%) Input current 70 mA + (total K-bus current)/4, 200 mA max. Starting current 2.5 x continuous current Current supply K-bus up to 400 mA Power contacts max. 24 V DC/max. 10 A Nominal voltage 24 V DC (-15%/+20%) Electrical isolation 500 V (power contact/supply voltage/fieldbus) Shield connection – Electrical connection to DIN rail – Special features coupler terminal for K-bus extension (max. 64 Bus Terminals) Weight approx. 75 g Operating temperature 0…55°C Storage temperature -25…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission con

Availability: regular delivery
