Beckhoff KL9010 | Beckhoff Bus Terminals

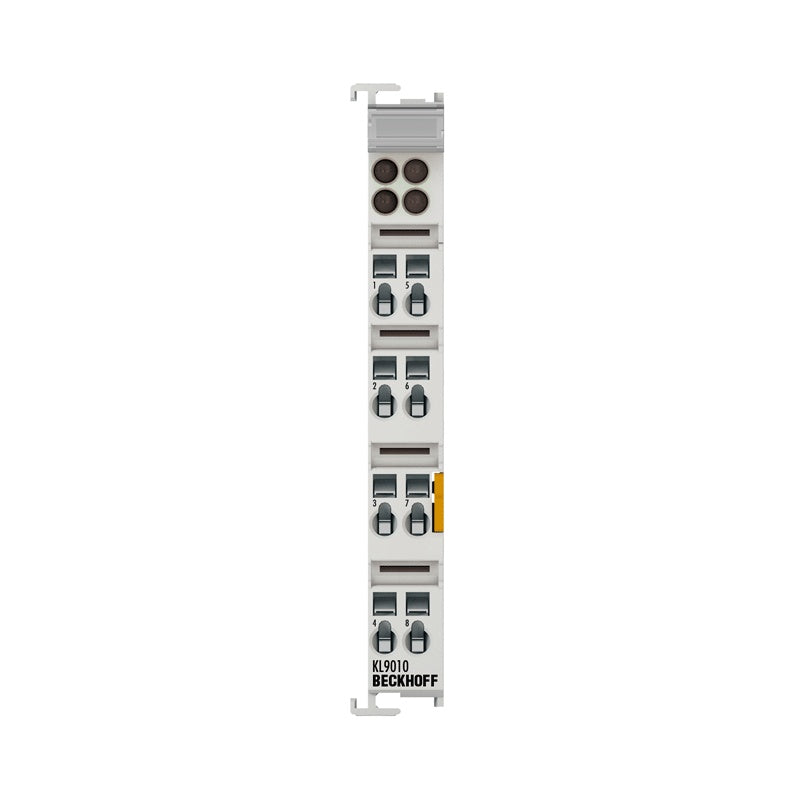

KL9010 | End terminal

The KL9010 bus end terminal is necessary for data exchange between the Bus Coupler and the Bus Terminals. Each assembly must be terminated at the right...

Technical Specifications

KL9010 Current load – Integrated fine-wire fuse – Power LED – Defect LED – Diagnostics – Starting current – Current consumption K-bus – Nominal voltage – Electrical isolation – Reported to K-bus – Shield connection – Renewed infeed – Connection facility to additional power contact – K-bus, looped through –/yes Bit width in the process image 0 Electrical connection to DIN rail – Housing width 12 mm Special features end terminal for bus communication Weight approx. 50 g Side by side mounting on Bus Terminals with power contact yes Side by side mounting on Bus Terminals without power contact yes Operating temperature -25…+60°C Storage temperature -40…+85°C Approvals/markings CE, CCC, UL, ATEX, IECEx, DNV, cFMus Ex marking ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc Technical data Housing data To top Hous

Availability: regular delivery

Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Normal delivery takes 2–6 business days subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.

Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
