Beckhoff KL6031 | Beckhoff Bus Terminals

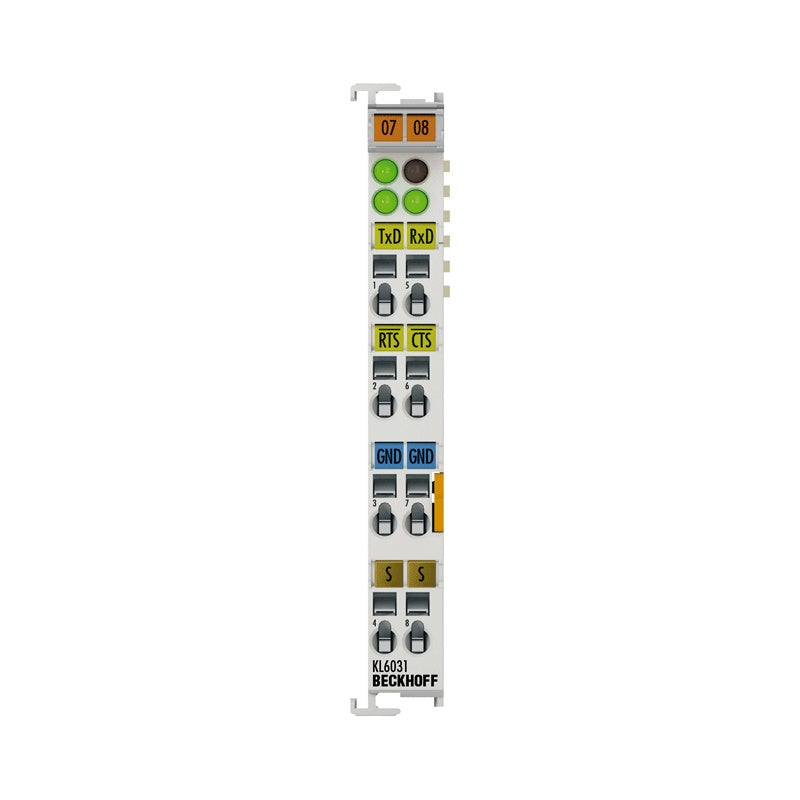

KL6031 | Bus Terminal, 1-channel communication interface, serial, RS232

The KL6031 serial interface allows devices with an RS232 interface to be connected. The interface operates in conformity with the CCITT V.28/DIN 66 259...

Technical Specifications

KL6031 Technology RS232 Data transfer channels 2 (1/1), TxD and RxD, full duplex Transmission rate 4800…115,200 baud; default: 9600 baud, 8 data bits, no parity and one stop bit Bit distortion Cable impedance – Cable length max. 15 m Signal voltage “0” -18…-3 V Signal voltage “1” 3…18 V Power supply via the K-bus Current consumption K-bus typ. 55 mA Current consumption power contacts – (no power contacts) Electrical isolation 500 V (K-bus/signal voltage) Data buffer 1024 bytes receive buffer, 128 bytes transmit buffer Bit width in the process image input/output: 22 x 8 bit user data, 2 x 8 bit control/status (up to 22 byte user data are possible) Configuration no address setting, configuration via Bus Coupler or controller Special features high interference immunity, electrically isolated signals Weight approx. 80 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative h

Availability: regular delivery
