Beckhoff KL5151 | Beckhoff Bus Terminals

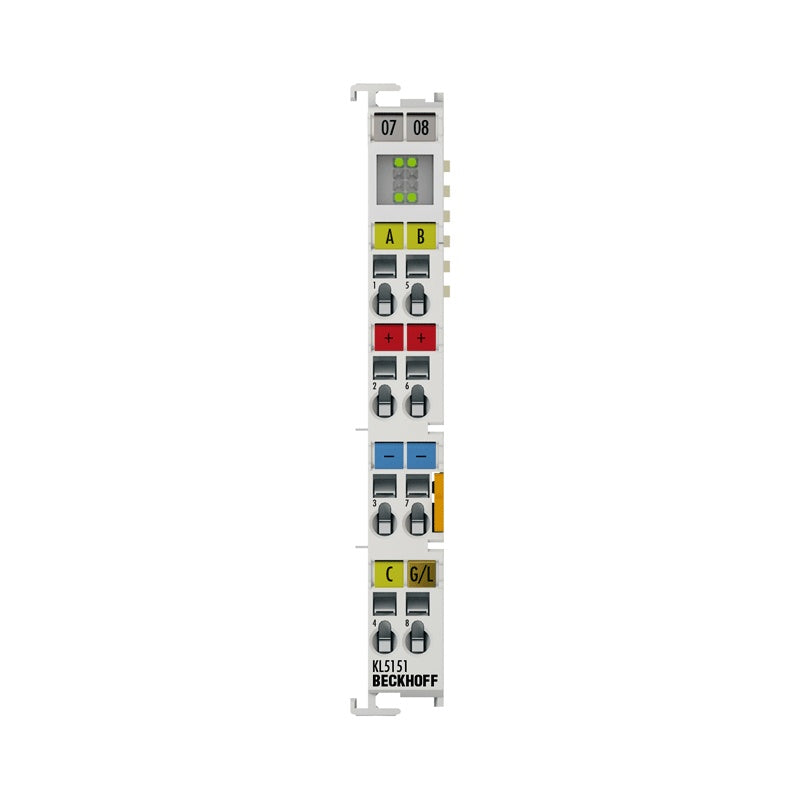

KL5151 | Bus Terminal, 1-channel encoder interface, incremental, 24 V DC HTL, 100 kHz

The KL5151 Bus Terminal is an interface for connecting a 24 V incremental encoder (24 V HTL). A 32-bit counter with quadrature decoder and a 32-bit latch...

Technical Specifications

KL5151 Technology incremental encoder interface 24 V DC, EN 61131-2, type 1, “0”: 15 V DC, typ. 5 mA Number of channels 1 incremental encoder Encoder connection A, B, C, gate/latch, 24 V Sensor inputs 1 Encoder operating voltage 24 V DC Encoder output current – Counter 32 bit, binary Cut-off frequency 400,000 increments/s (with 4-fold evaluation) Quadrature decoder 4-fold evaluation Zero-pulse latch 32 bit Commands read, set, enable Power supply 24 V DC (-15%/+20%) Current consumption power contacts – Current consumption K-bus typ. 40 mA Bit width in the process image input/output: 2 x 32 bit data, 2 x 8 bit control/status Weight approx. 50 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/instal

Availability: regular delivery
