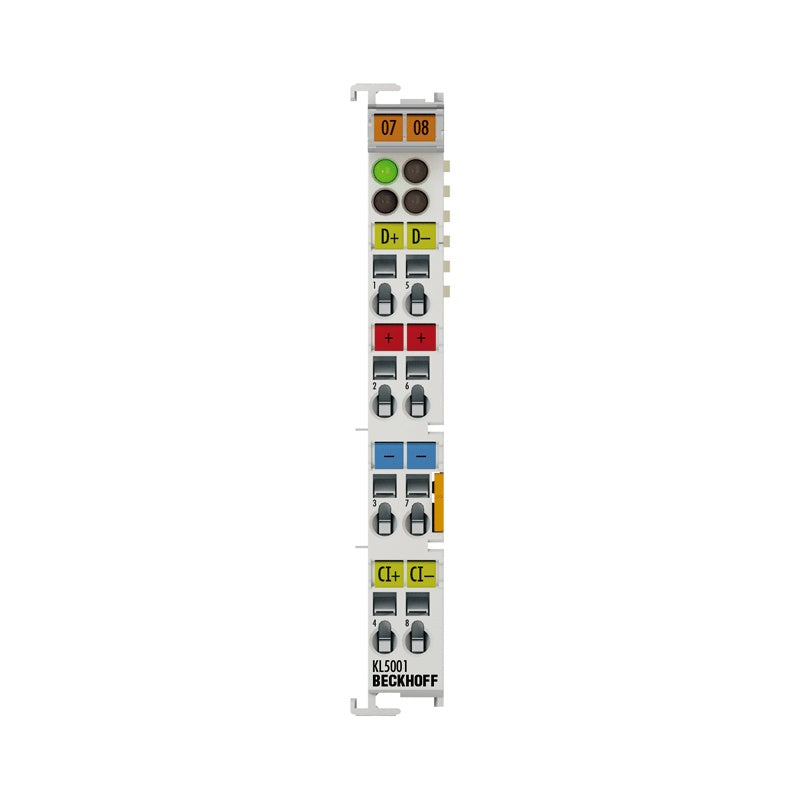

KL5001 Beckhoff

KL5001 | Bus Terminal, 1-channel encoder interface, SSI

The KL5001 Bus Terminal is an SSI master and enables the direct connection of an absolute encoder with SSI (synchronous serial interface). Both singleturn...

Technical Specifications

KL5001 Technology SSI encoder interface Number of channels 1 encoder interface Encoder connection binary input: D+, D-, binary output: Cl+, Cl- Power supply 24 V DC via power contacts Current consumption typ. 20 mA without encoder Current consumption power contacts typ. 20 mA + load Encoder supply 24 V DC via power contacts Data transfer rates variable up to 1 MHz, 250 kHz default Serial input 24 bit width (variable) Data direction read Signal output difference signal (RS422) Signal input difference signal (RS422) Electrical isolation 500 V (K-bus/field potential) Current consumption K-bus typ. 25 mA Bit width in the process image input: 1 x 32 bit data (1 x 8 bit control/status optional) Weight approx. 60 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/em

Availability: regular delivery
