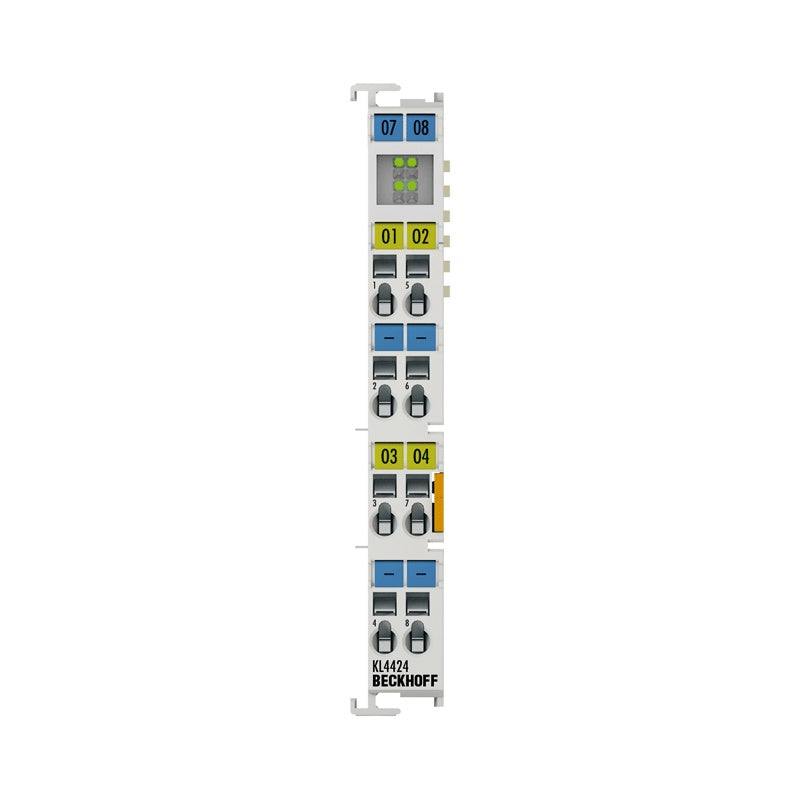

Beckhoff KL4424 | Beckhoff Bus Terminals

KL4424 | Bus Terminal, 4-channel analog output, current, 4…20 mA, 12 bit

The KL4424 analog output terminal generates signals in the range between 4 to 20 mA. The power is supplied to the process level with a resolution of 12...

Technical Specifications

KL4424 Technology single-ended Number of outputs 4 Power supply 24 V DC via power contacts (alternative 15 V DC with power supply terminal KL9515) Signal current 4…20 mA Load Output error Resolution 12 bit Conversion time ~ 4 ms Electrical isolation 500 V (K-bus/signal voltage) Current consumption power contacts typ. 60 mA + load Current consumption K-bus typ. 20 mA Bit width in the process image output: 4 x 16 bit data (4 x 8 bit control/status optional) Weight approx. 75 g Operating temperature 0…55°C Storage temperature -25…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/variable Pluggable wiring level for all KSxxxx Bus Terminals Approvals/markings CE, CCC, UL, ATEX, IECEx, DNV, cFMus Ex marking ATEX: II 3 G Ex ec IIC T4 Gc

Availability: regular delivery
