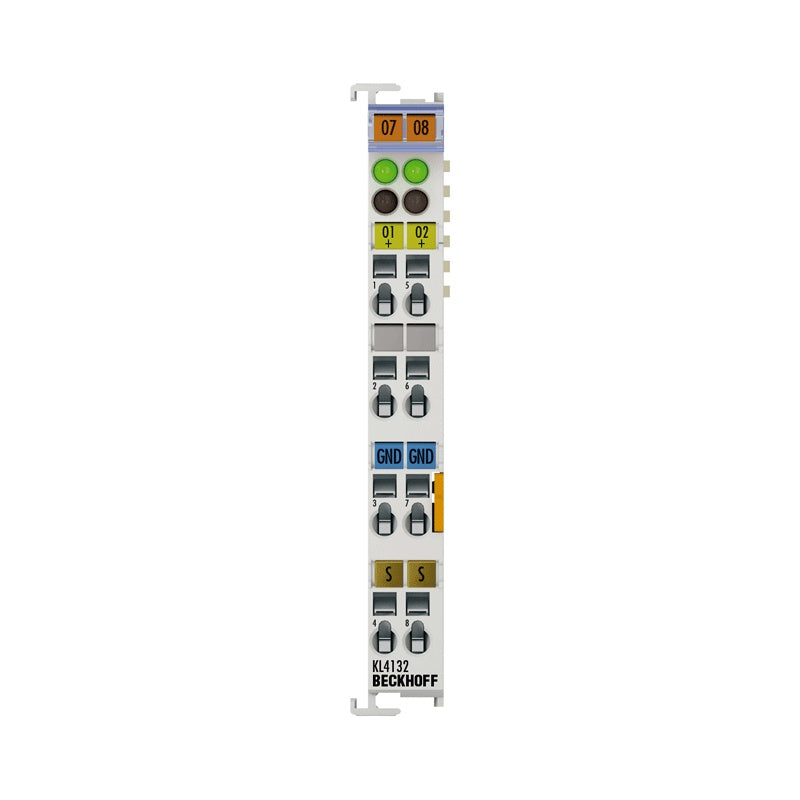

KL4132 Beckhoff

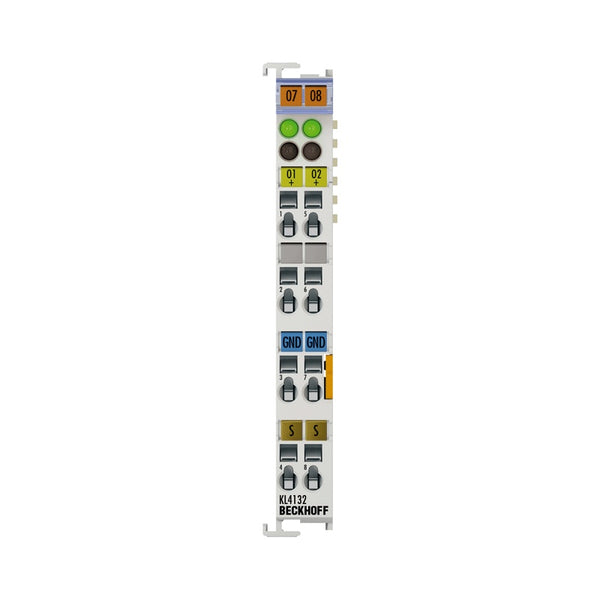

KL4132 | Bus Terminal, 2-channel analog output, voltage, ±10 V, 16 bit

The KL4132 analog output terminal generates signals in the range from -10 to +10 V. The voltage is supplied to the process level with a resolution of 16...

Technical Specifications

KL4132 Technology single-ended Number of outputs 2 Power supply via the K-bus Signal voltage -10…+10 V Load > 5 kΩ (short-circuit proof) Output error Resolution 16 bit Conversion time ~ 1.5 ms Electrical isolation 500 V (K-bus/signal voltage) Current consumption power contacts – (no power contacts) Current consumption K-bus typ. 75 mA Bit width in the process image output: 2 x 16 bit data (2 x 8 bit control/status optional) Configuration no address or configuration setting Special features increased resolution Weight approx. 85 g Operating temperature 0…55°C Storage temperature -25…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/variable Pluggable wiring level for all KSxxxx Bus Terminals Approvals/markings CE, CCC, UL, ATEX, IE

Availability: regular delivery
