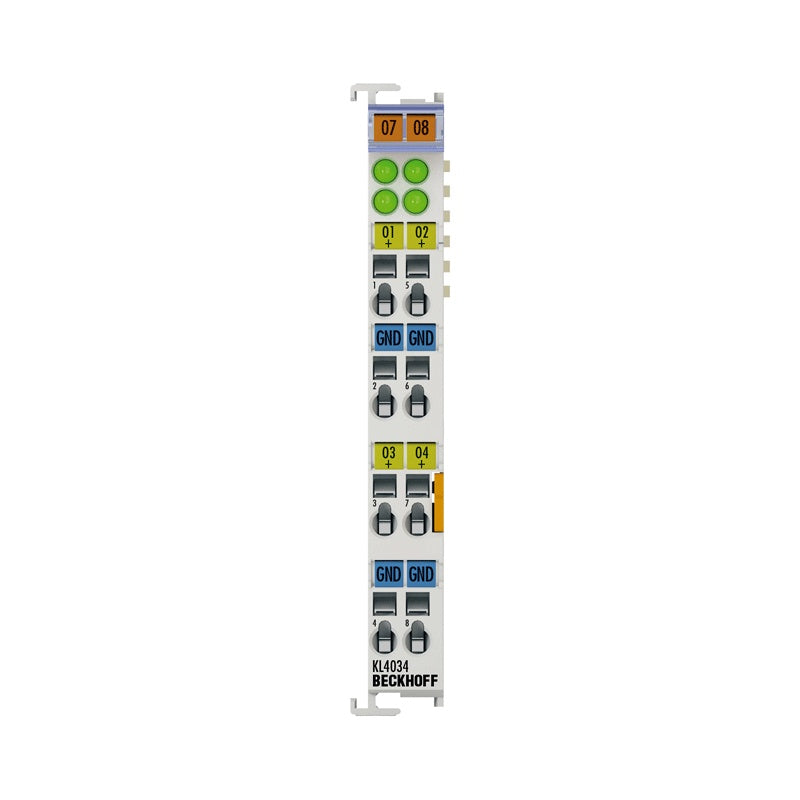

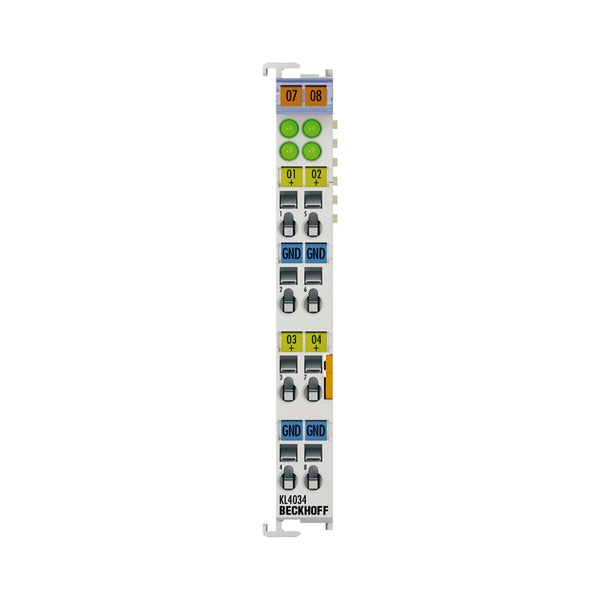

KL4034 | Bus Terminal, 4-channel analog output, voltage, ±10 V, 12 bit

The KL4034 analog output terminal generate signals in the range from +10 to -10 V. The power is supplied to the process level with a resolution of 12 bits...

Technical Specifications

KL4034 Technology single-ended Number of outputs 4 Power supply via the K-bus Signal voltage -10…+10 V Load > 5 kΩ (short-circuit proof) Output error Resolution 12 bit Conversion time ~ 2 ms Electrical isolation 500 V (K-bus/signal voltage) Current consumption power contacts – (no power contacts) Current consumption K-bus typ. 85 mA Bit width in the process image output: 4 x 16 bit data (4 x 8 bit control/status optional) Configuration no address or configuration setting Weight approx. 85 g Operating temperature 0…55°C Storage temperature -25…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/variable Pluggable wiring level for all KSxxxx Bus Terminals Approvals/markings CE, CCC, UL, ATEX, IECEx, DNV Ex marking ATEX: II 3 G Ex ec I

Availability: regular delivery
