Beckhoff KL3351 | Beckhoff Bus Terminals

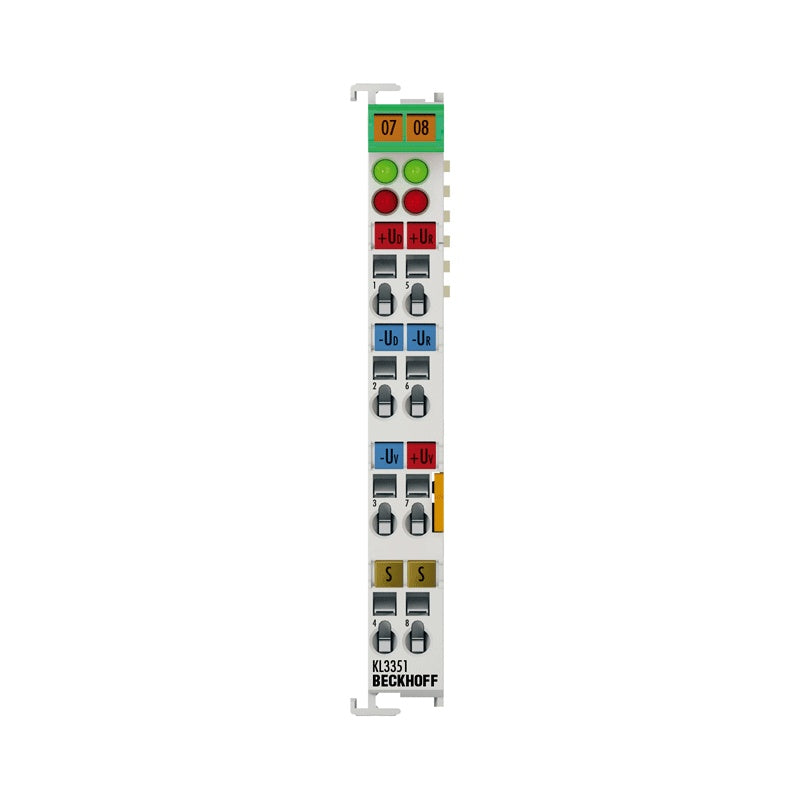

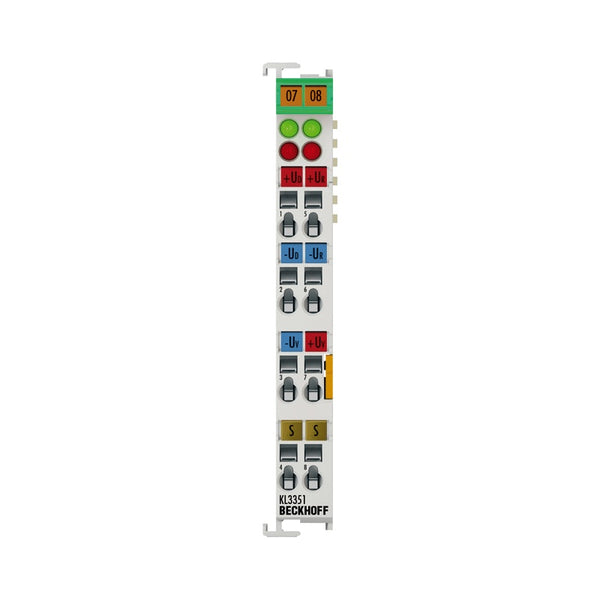

KL3351 | Bus Terminal, 1-channel analog input, measuring bridge, full bridge, 16 bit

The KL3351 analog input terminal permits direct connection of a resistor bridge. The bridge voltage, UD, and the supply voltage, UREF, to the bridge are...

Technical Specifications

KL3351 Number of inputs 2, for 1 resistor bridge Power supply via the K-bus Signal voltage U D -16…+16 mV, configurable Signal voltage U REF ±10 V Technology strain gauge connection Internal resistance > 200 kΩ (U REF ), > 1 MΩ (U D ) Power supply U V 5 V DC, max. 20 mA Conversion time Filter 50 Hz, configurable Resolution 16 bit Measurement error/uncertainty Current consumption power contacts – (no power contacts) Current consumption K-bus typ. 65 mA Bit width in the process image input: 2 x 16 bit data (2 x 8 bit control/status optional) Special features with internal bridge supply Weight approx. 70 g Operating temperature 0…55°C Storage temperature -25…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/variable Approvals/marking

Availability: regular delivery
