Beckhoff KL3314-0010 | Beckhoff Bus Terminals

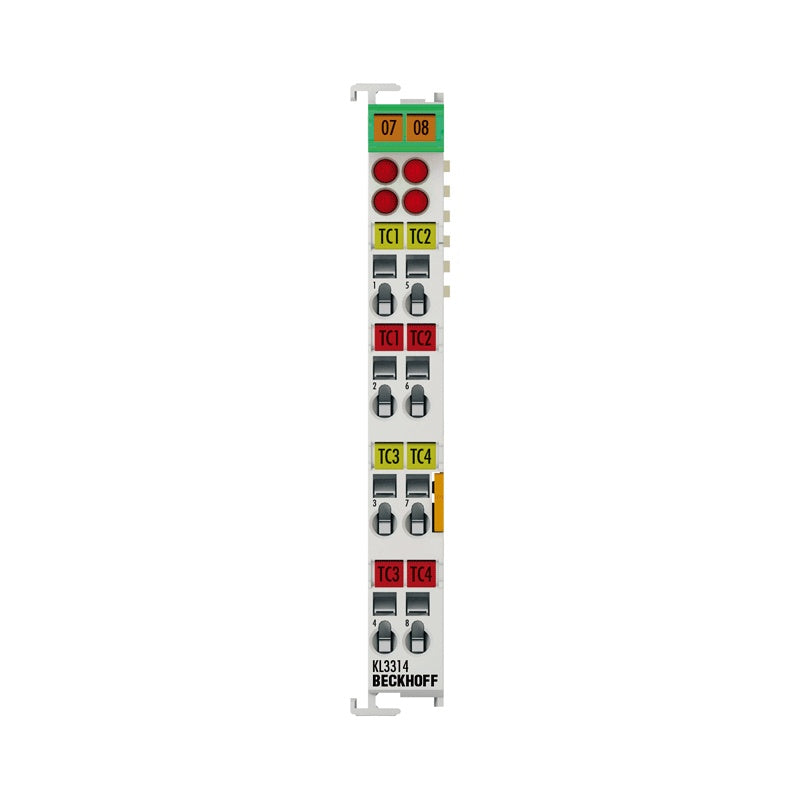

KL3314 | Bus Terminal, 4-channel analog input, temperature, thermocouple, 16 bit

The KL3314 analog input terminal allows four thermocouples to be connected directly. The Bus Terminal’s circuitry can operate thermocouple sensors using...

Technical Specifications

KL3314 Number of inputs 4 Power supply via the K-bus Technology 2-wire Thermocouple sensor types types J, K, L, B, E, N, R, S, T, U (default setting type K), mV measurement Measuring range in the range defined in each case for the sensor (default setting: type K; -100…+1370°C); mV measurement: ±30 mV…±120 mV Connection technology 2-wire Conversion time ~ 250 ms Wire break detection yes Resolution 0.1°C per digit Measurement error/uncertainty Electrical isolation 500 V (K-bus/signal voltage) Current consumption power contacts – (no power contacts) Current consumption K-bus typ. 75 mA Bit width in the process image input: 4 x 16 bit data (4 x 8 bit control/status optional) Configuration no address setting, configuration via Bus Coupler or controller Weight approx. 75 g Operating temperature 0…55°C Storage temperature -25…+85°C Relative humidity 95%, no condensation Vibration/shock resistan

Availability: regular delivery
