Beckhoff KL3222 | Beckhoff Bus Terminals

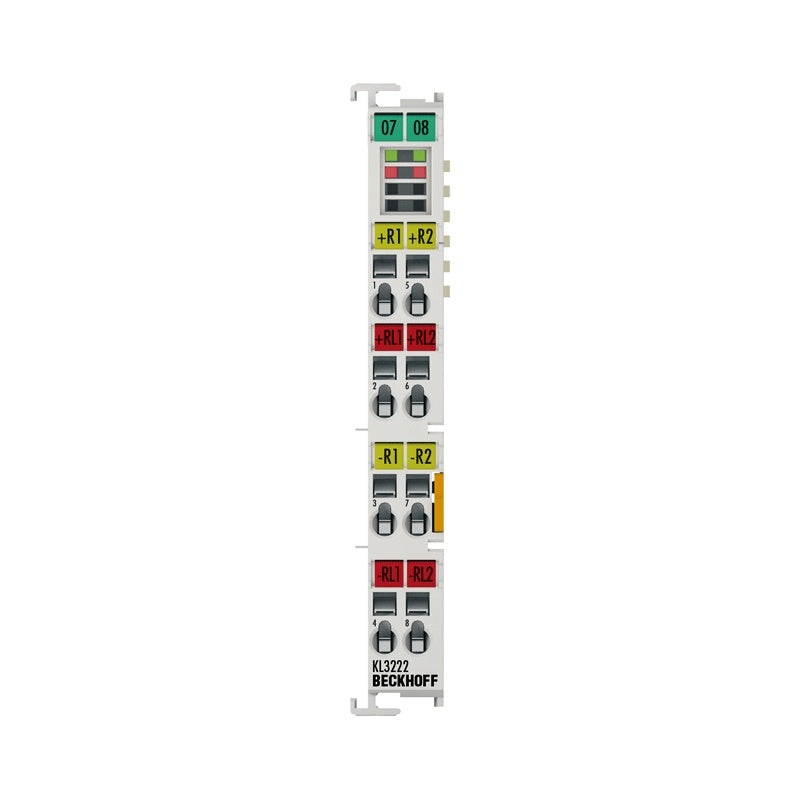

KL3222 | Bus Terminal, 2-channel analog input, temperature, RTD (Pt100), 16 bit, high-precision

The KL3222 analog input terminal allows resistance sensors to be connected directly. Linearization over the full temperature range is realized with the...

Technical Specifications

KL3222 Number of inputs 2 Power supply via the K-bus Technology 4-wire Sensor type Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, resistance measurement (e.g. potentiometer, 10 Ω…1.2/5 kΩ), KTY Measuring range -200…+850°C (Pt sensors); -60…+250°C (Ni sensors); -200…+320°C (high-precision) Connection technology 4-wire Conversion time typ. 50 ms Measuring current typ. 0.5 mA Resolution 0.01°C per digit Measurement error/uncertainty 0.1°C at 40°C ambient temperature, 4-wire connection, Pt100 sensors and 50 Hz filter Electrical isolation 500 V (K-bus/signal voltage) Current consumption power contacts – Current consumption K-bus typ. 60 mA Bit width in the process image input: 2 x 16 bit data (2 x 8 bit control/status optional) Configuration no address setting, configuration via Bus Coupler or controller Special features open-circuit recognition, high-precision Weight approx. 70 g Operati

Availability: regular delivery
