Beckhoff KL3202 | Beckhoff Bus Terminals

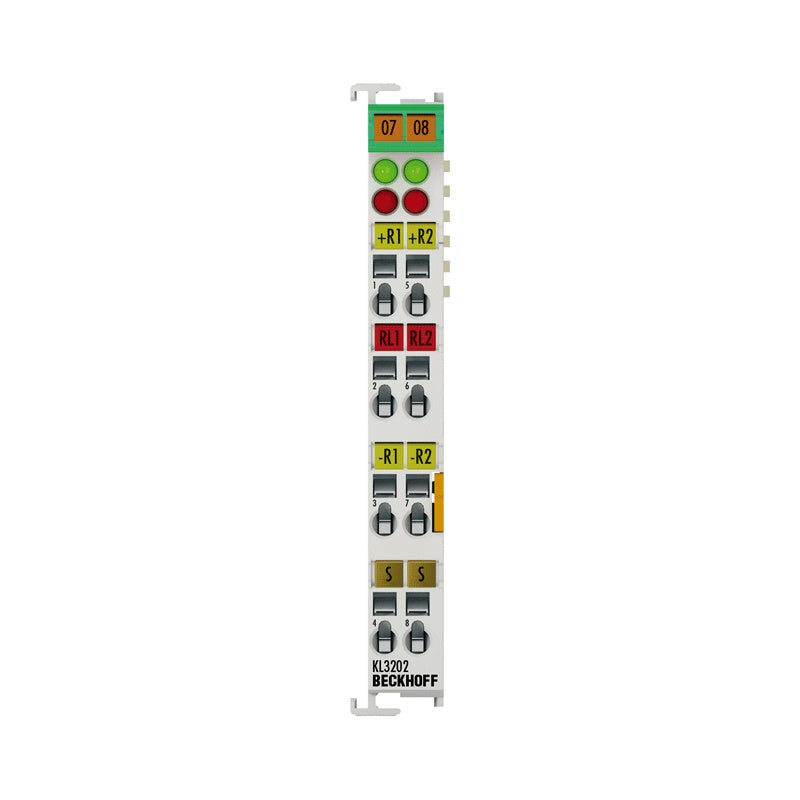

KL3202 | Bus Terminal, 2-channel analog input, temperature, RTD (Pt100), 16 bit

The KL3202 analog input terminal allows resistance sensors to be connected directly. The Bus Terminal’s circuitry can operate the sensors using 2-wire ...

Technical Specifications

KL3202 Number of inputs 2 Power supply via the K-bus Technology 2-/3-wire Sensor type Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, resistance measurement (e.g. potentiometer, 10 Ω…1.2/5 kΩ) Measuring range -200…+850°C (Pt sensors); -60…+250°C (Ni sensors) Connection technology 2- or 3-wire (default: 3-wire) Conversion time ~ 250 ms Measuring current typ. 0.5 mA Resolution 0.1°C per digit Measurement error/uncertainty Electrical isolation 500 V (K-bus/signal voltage) Current consumption power contacts – (no power contacts) Current consumption K-bus typ. 60 mA Bit width in the process image input: 2 x 16 bit data (2 x 8 bit control/status optional) Configuration no address setting, configuration via Bus Coupler or controller Special features open-circuit recognition Weight approx. 70 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensatio

Availability: regular delivery
