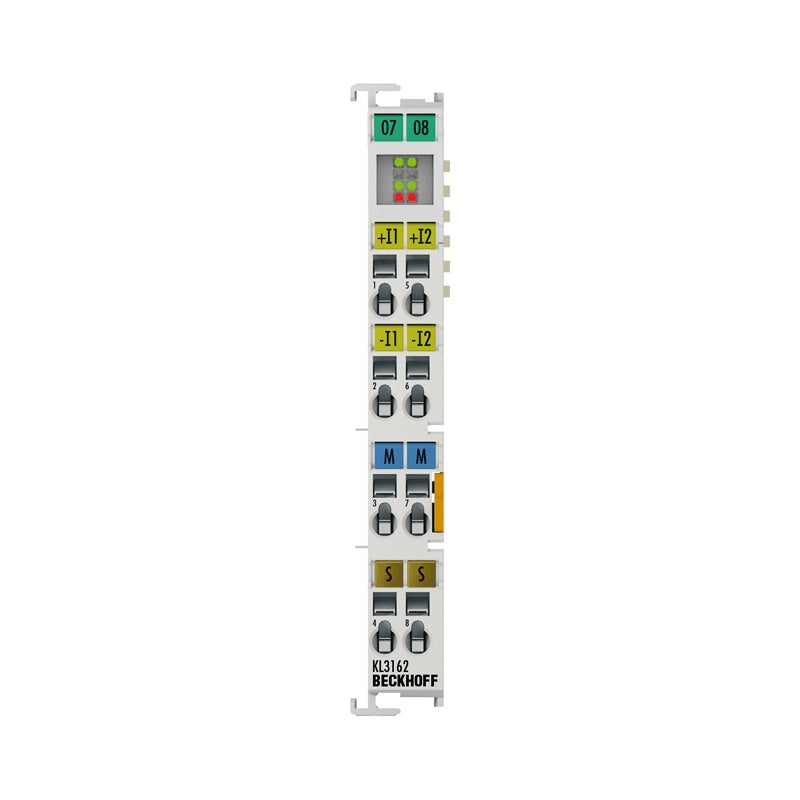

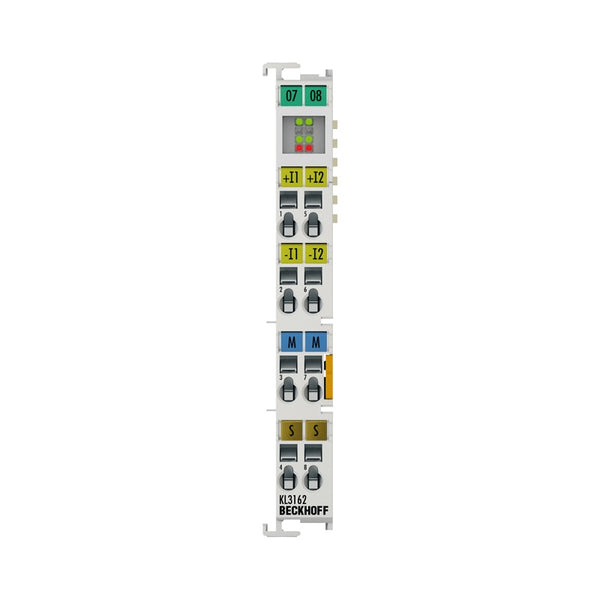

KL3162 | Bus Terminal, 2-channel analog input, voltage, 0…10 V, 16 bit, differential, high-precision

The KL3162 analog input terminal processes signals in the range of 0 to +10 V. The voltage is digitized to a resolution of 16 bits and is transmitted, ...

Technical Specifications

KL3162 Number of inputs 2 Power supply via the K-bus Signal voltage 0…10 V Technology differential input Internal resistance > 70 kΩ Common mode voltage U CM max. 10 V Conversion time 140 ms, configurable Filter 50 Hz, configurable Resolution 16 bit Measurement error/uncertainty Electrical isolation 500 V (K-bus/signal voltage) Current consumption power contacts – Current consumption K-bus typ. 85 mA Bit width in the process image input: 2 x 16 bit data (2 x 8 bit control/status optional) Special features increased measuring accuracy Weight approx. 70 g Operating temperature 0…55°C Storage temperature -25…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/variable Approvals/markings CE, CCC, UL, ATEX, IECEx Plug-in wiring level for

Availability: regular delivery
