Beckhoff KL3112 | Beckhoff Bus Terminals

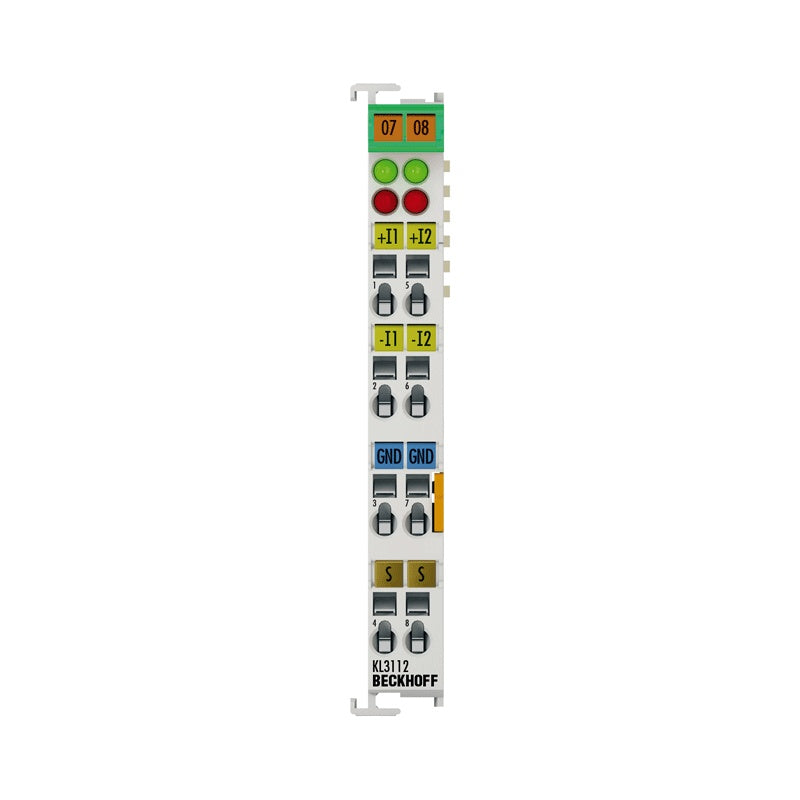

KL3112 | Bus Terminal, 2-channel analog input, current, 0…20 mA, 16 bit, differential

The KL3112 analog input terminal handles signals in the range from 0 to 20 mA. The current is digitized to a resolution of 16 bits (the default is 15 bits...

Technical Specifications

KL3112 Number of inputs 2 Power supply via the K-bus Signal current 0…20 mA Technology differential input Internal resistance typ. 50 Ω shunt, load: 60 Ω + diode voltage Common mode voltage U CM max. 35 V Conversion time 140 ms, configurable to 2 ms Filter 50 Hz, configurable Resolution 15 bit, configurable to 16 bit Measurement error/uncertainty Surge voltage resistance 35 V DC Electrical isolation 500 V (K-bus/signal voltage) Current consumption power contacts – (no power contacts) Current consumption K-bus typ. 60 mA Bit width in the process image input: 2 x 16 bit data (2 x 8 bit control/status optional) Configuration no address or configuration setting Weight approx. 70 g Operating temperature 0…55°C Storage temperature -25…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN

Availability: regular delivery
