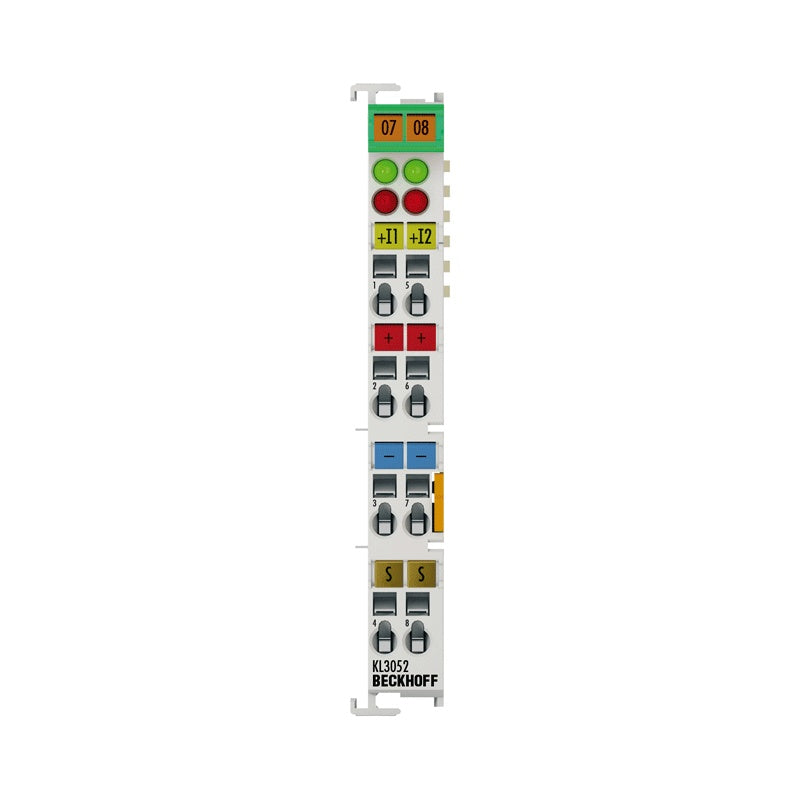

Beckhoff KL3052 | Beckhoff Bus Terminals

KL3052 | Bus Terminal, 2-channel analog input, current, 4…20 mA, 12 bit, single-ended

The job of the KL3052 analog input terminal is to supply power to measuring transducers located in the field and to transmit analog measurement signals...

Technical Specifications

KL3052 Number of inputs 2 Power supply 24 V DC via power contacts Signal current 4…20 mA Technology single-ended Internal resistance 80 Ω + diode voltage 0.7 V Common mode voltage U CM – Conversion time ~ 2 ms Resolution 12 bit Measurement error/uncertainty Surge voltage resistance max. 35 V Electrical isolation 500 V (K-bus/signal voltage) Current consumption power contacts load only Current consumption K-bus typ. 65 mA Bit width in the process image input: 2 x 16 bit data (2 x 8 bit control/status optional) Configuration no address or configuration setting Special features with sensor supply Weight approx. 70 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/variable Appr

Availability: regular delivery
