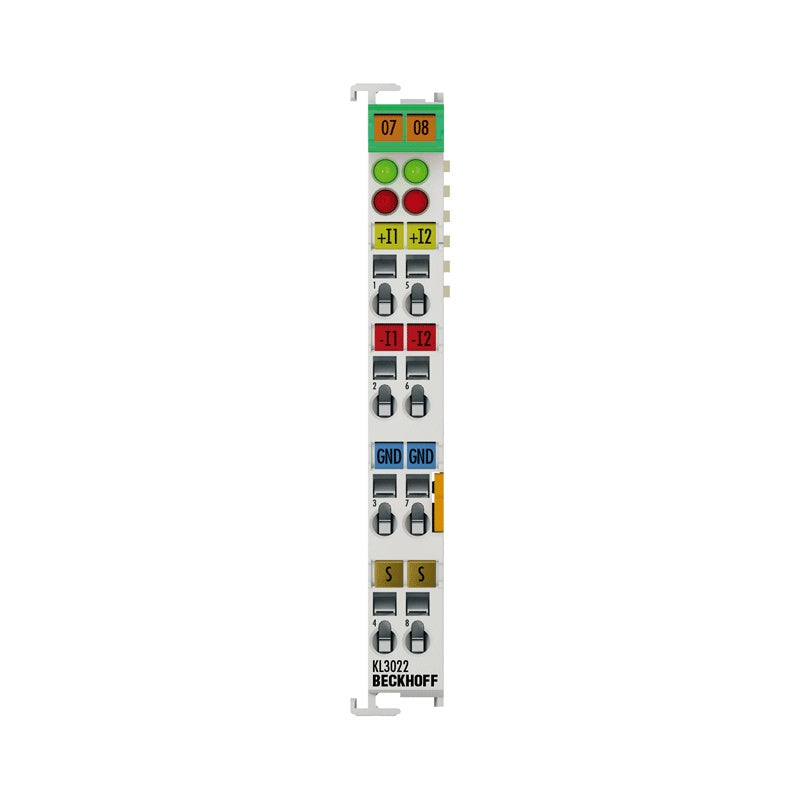

Beckhoff KL3022 | Beckhoff Bus Terminals

KL3022 | Bus Terminal, 2-channel analog input, current, 4…20 mA, 12 bit, differential

The KL3022 analog input terminal handles signals in the range from 4 to 20 mA. The current is digitized to a resolution of 12 bits and is transmitted, ...

Technical Specifications

KL3022 Number of inputs 2 Power supply via the K-bus Signal current 4…20 mA Technology differential input Internal resistance 80 Ω + diode voltage 0.7 V Common mode voltage U CM max. 35 V Conversion time ~ 2 ms Resolution 12 bit Measurement error/uncertainty Surge voltage resistance 35 V DC Electrical isolation 500 V (K-bus/signal voltage) Current consumption power contacts – (no power contacts) Current consumption K-bus typ. 60 mA Bit width in the process image input: 2 x 16 bit data (2 x 8 bit control/status optional) Weight approx. 70 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/variable Approvals/markings CE, CCC, UL, ATEX, IECEx, DNV Pluggable wiring level for all

Availability: regular delivery
