Beckhoff KL3002 | Beckhoff Bus Terminals

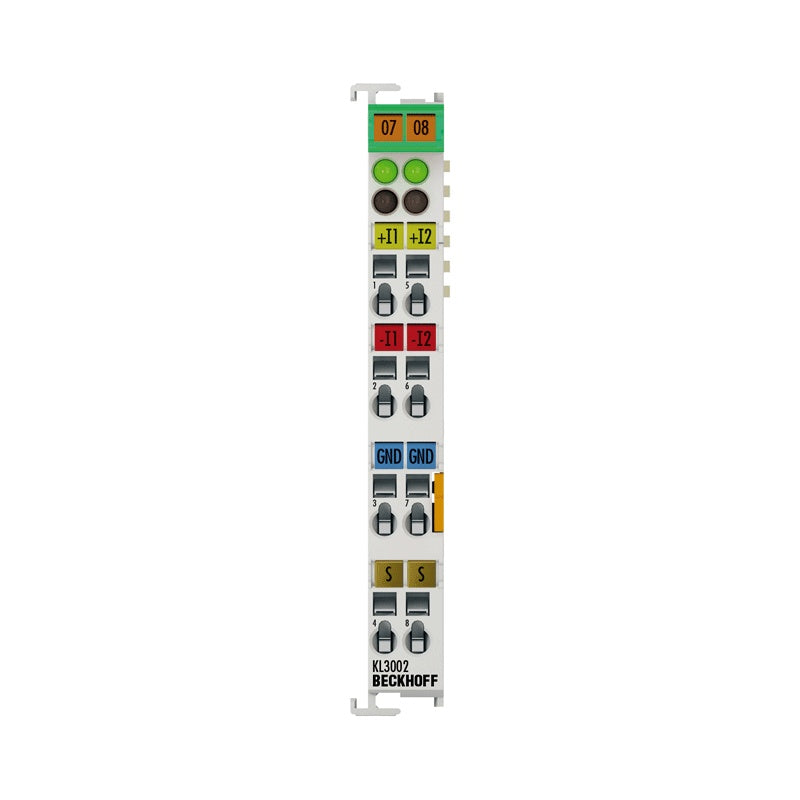

KL3002 | Bus Terminal, 2-channel analog input, voltage, ±10 V, 12 bit, differential

The KL3002 analog input terminal handles signals in the range from -10 to +10 V. The voltage is digitized to a resolution of 12 bits and is transmitted...

Technical Specifications

KL3002 Number of inputs 2 Power supply via the K-bus Signal voltage -10…+10 V Technology differential input Internal resistance > 200 kΩ Common mode voltage U CM max. 35 V Conversion time ~ 2 ms Resolution 12 bit (for 0…10 V range: resolution 11 bit) Measurement error/uncertainty Electrical isolation 500 V (K-bus/signal voltage) Current consumption power contacts – (no power contacts) Current consumption K-bus typ. 65 mA Bit width in the process image input: 2 x 16 bit data (2 x 8 bit control/status optional) Configuration no address or configuration setting Weight approx. 70 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/variable Approvals/markings CE, CCC, UL, ATEX, IE

Availability: regular delivery
