Beckhoff KL2809 | Beckhoff Bus Terminals

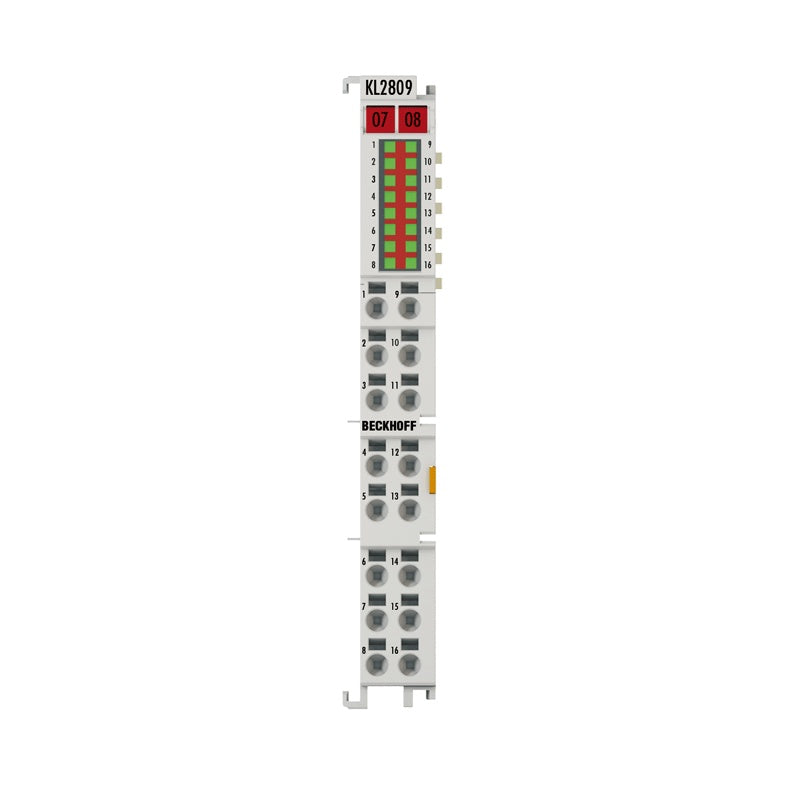

KL2809 | Bus Terminal, 16-channel digital output, 24 V DC, 0.5 A

The KL2809 digital output terminal connects the binary control signals from the automation device on to the actuators at the process level with electrical...

Technical Specifications

KL2809 Connection technology 1-wire Number of outputs 16 Nominal voltage 24 V DC (-15%/+20%) Load type ohmic, inductive, lamp load Max. output current 0.5 A (short-circuit proof) per channel Short-circuit current Switching-off energy Reverse polarity protection yes Electrical isolation 500 V (K-bus/field potential) Current consumption power contacts typ. 35 mA + load Current consumption K-bus typ. 35 mA Bit width in the process image 16 outputs Configuration no address or configuration setting Weight approx. 70 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/variable (see documentation) Approvals/markings CE, CCC, UL, ATEX, IECEx, DNV Ex marking ATEX: II 3 G Ex ec IIC T4

Availability: regular delivery
