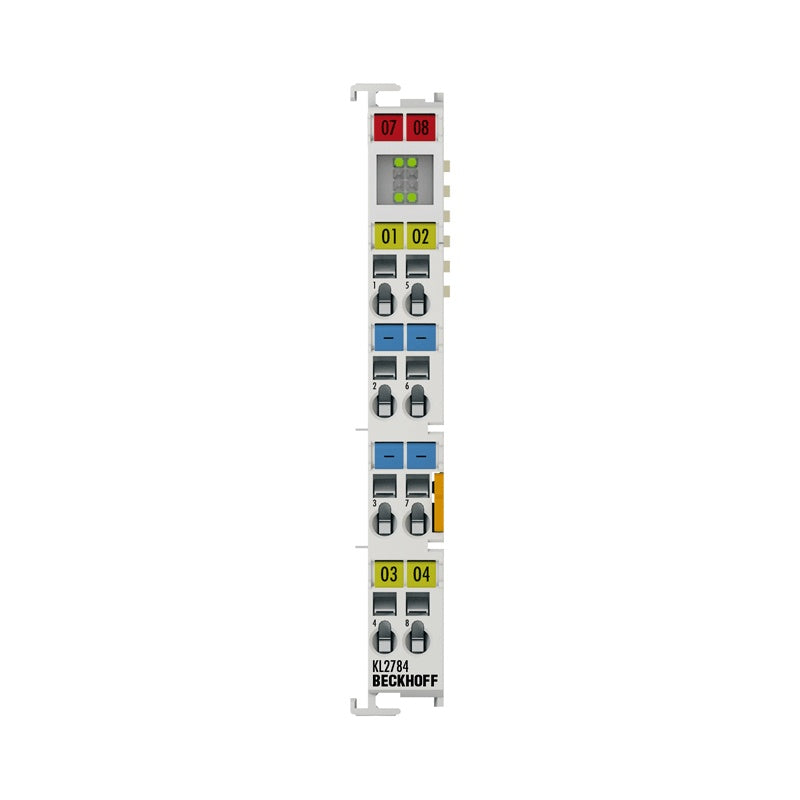

Beckhoff KL2784 | Beckhoff Bus Terminals

KL2784 | Bus Terminal, 4-channel solid state relay output, 30 V AC, 48 V DC, 2 A

The digital KL2784 Bus Terminal provides four switches that can be utilized like a relay contact for AC/DC voltages. The electronic switch is realized through...

Technical Specifications

KL2784 Connection technology 2-wire Number of outputs 4 x make contacts Nominal voltage 0…30 V AC/DC (ohmic load only: 0…48 V DC) Max. output current 2 A per channel Breakdown voltage 80 V Peak current 5 A (100 ms), Short-circuit current not short-circuit proof, see peak current Electrical isolation 500 V (K-bus/field potential) Switching on speed typ. 1.8 ms, max. 5 ms Switching off speed typ. 30 ms, max. 50 ms On-resistance typ. 0.03 Ω Current consumption K-bus 80 mA Bit width in the process image 4 outputs Special features alternative for relay contacts Operating temperature 0…55°C Storage temperature -25…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/variable Plug-in wiring level for all KSxxxx Bus Terminals Approvals/marki

Availability: regular delivery
