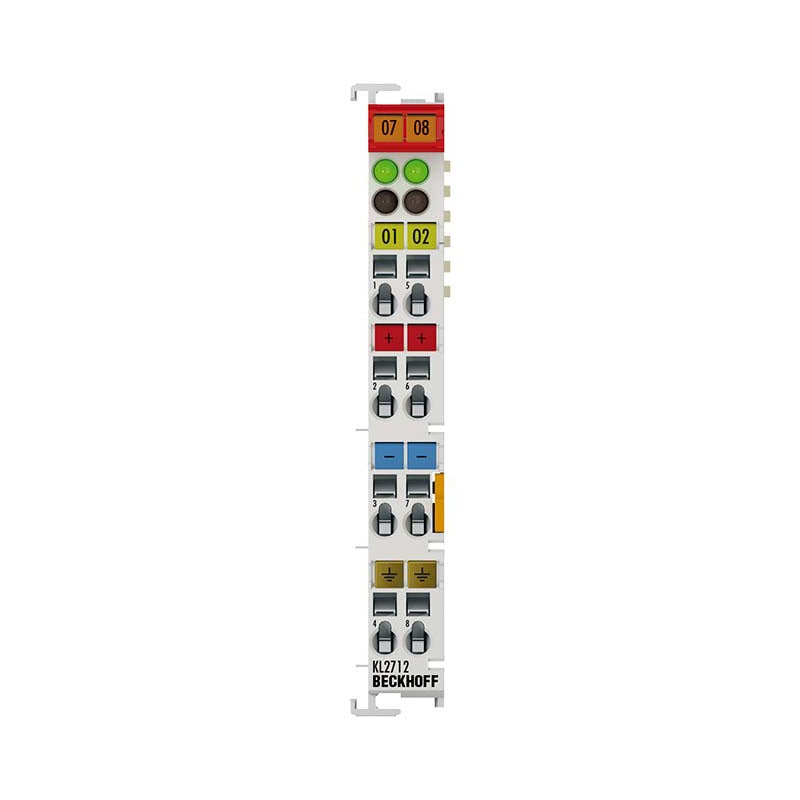

Beckhoff KL2712 | Beckhoff Bus Terminals

KL2712 | Bus Terminal, 2-channel triac output, 12…230 V AC, 0.5 A

The KL2712 output terminal uses a power switch to control mains voltage from 12 to 230 V AC. The switching element is a triac, which is connected to the...

Technical Specifications

KL2712 Connection technology 4-wire Number of outputs 2 x make contacts Nominal voltage 12…230 V AC Load type ohmic, inductive Max. output current 2 x 0.025…0.5 A per channel Rotating field frequency 47…63 Hz Surge voltage protection > 275 V AC Peak current 40 A (16 ms), 1.5 A (30 s) Switch-on time 0.1 ms Switch-off time T/2 Residual voltage max. 1.5 V Electrical isolation 500 V (K-bus/field voltage), 3750 V AC (1 min.) Leakage current (OFF state) typ. 0.8 mA, max. 1.5 mA Current consumption power contacts only leakage and load current Current consumption K-bus typ. 10 mA Bit width in the process image 2 outputs Configuration no address or configuration setting Special features reverse motors (blinds) Weight approx. 55 g Operating temperature 0…55°C Storage temperature -25…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC i

Availability: regular delivery
