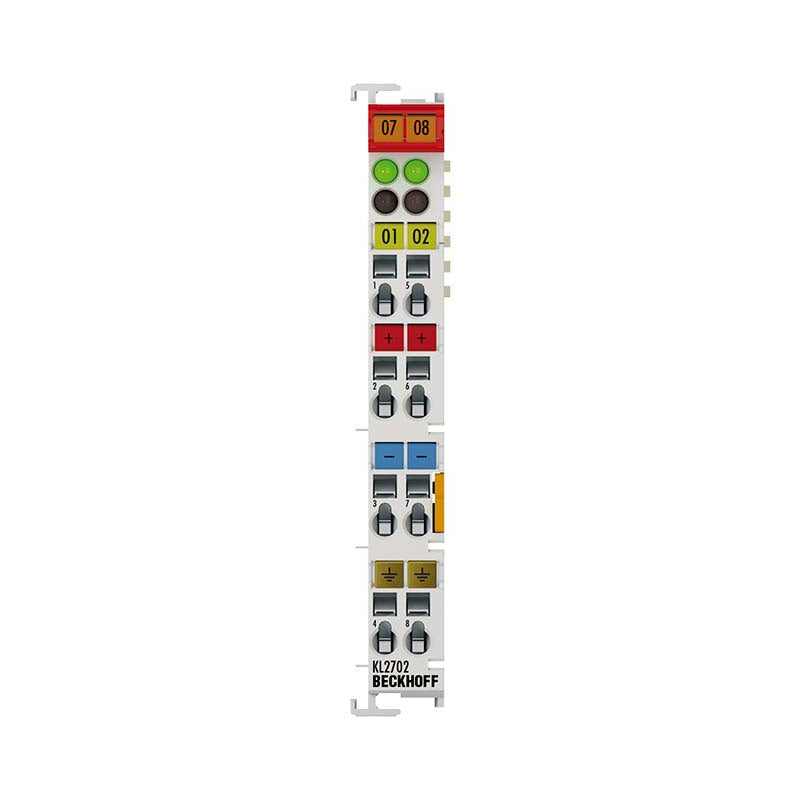

Beckhoff KL2702 | Beckhoff Bus Terminals

KL2702 | Bus Terminal, 2-channel solid-state relay output, 0…230 V AC/DC, 0.3 A

The KL2702-xxxx output terminal uses an electronic load relay to switch a mains voltage of up to 230 V AC/DC. The switching element is a high-power MOSFET...

Technical Specifications

KL2702-0020 KL2702-0002 KL2702 Connection technology 2-/3-/4-wire Number of outputs 2 x make contacts 2 x make contacts, mutually locked 2 x make contacts Nominal voltage 0…230 V AC/DC 0…230 V AC/DC 0…230 V AC/DC (DC…100 Hz) Load type ohmic, inductive Max. output current 1.5 A steady load per channel 2 A steady load per channel 0.3 A steady load per channel Rotating field frequency DC…100 Hz Surge voltage protection from 400 V AC Peak current 2.5 A (20 s), 7.5 A (100 ms) 2.5 A (20 s), 7.5 A (100 ms) 0.5 A (20 s), 1.5 A (100 ms) Contact resistance typ. 0.3 Ω, 0.4 Ω max. typ. 0.3 Ω, 0.4 Ω max. typ. 2.1 Ω, 3.2 Ω max. Switch-on time 0.2…0.4 ms 0.2…0.4 ms 4…6 ms Switch-off time 5…8 ms 5…8 ms 0.05…0.1 ms Switch-on delay 320 µs Switch-off delay 6.2 ms Residual voltage (200 mΩ) (300 mΩ) Electrical isolation 500 V (K-bus/field voltage), 2500 V AC (1 min.) Leakage current (OFF state) Current consu

Availability: regular delivery

Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Normal delivery takes 2–6 business days subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.

Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
